19A-27
COOLING
Engine cooling fan assembly: Removal - Refitting
K4M
19A
REMOVAL
I - REMOVAL PREPARATION OPERATION
a Disconnect the battery (see Battery: Removal - Re-
fitting) (80A, Battery).
a Remove:
-the injector rail protector (see 13B, Diesel injec-
tion, Injector rail: Removal - Refitting, page 13B-
25) ,
-the air resonator (see 12A, Fuel mixture, Air res-
onator: Removal - Refitting, page 12A-2) .
II - REMOVAL OPERATION

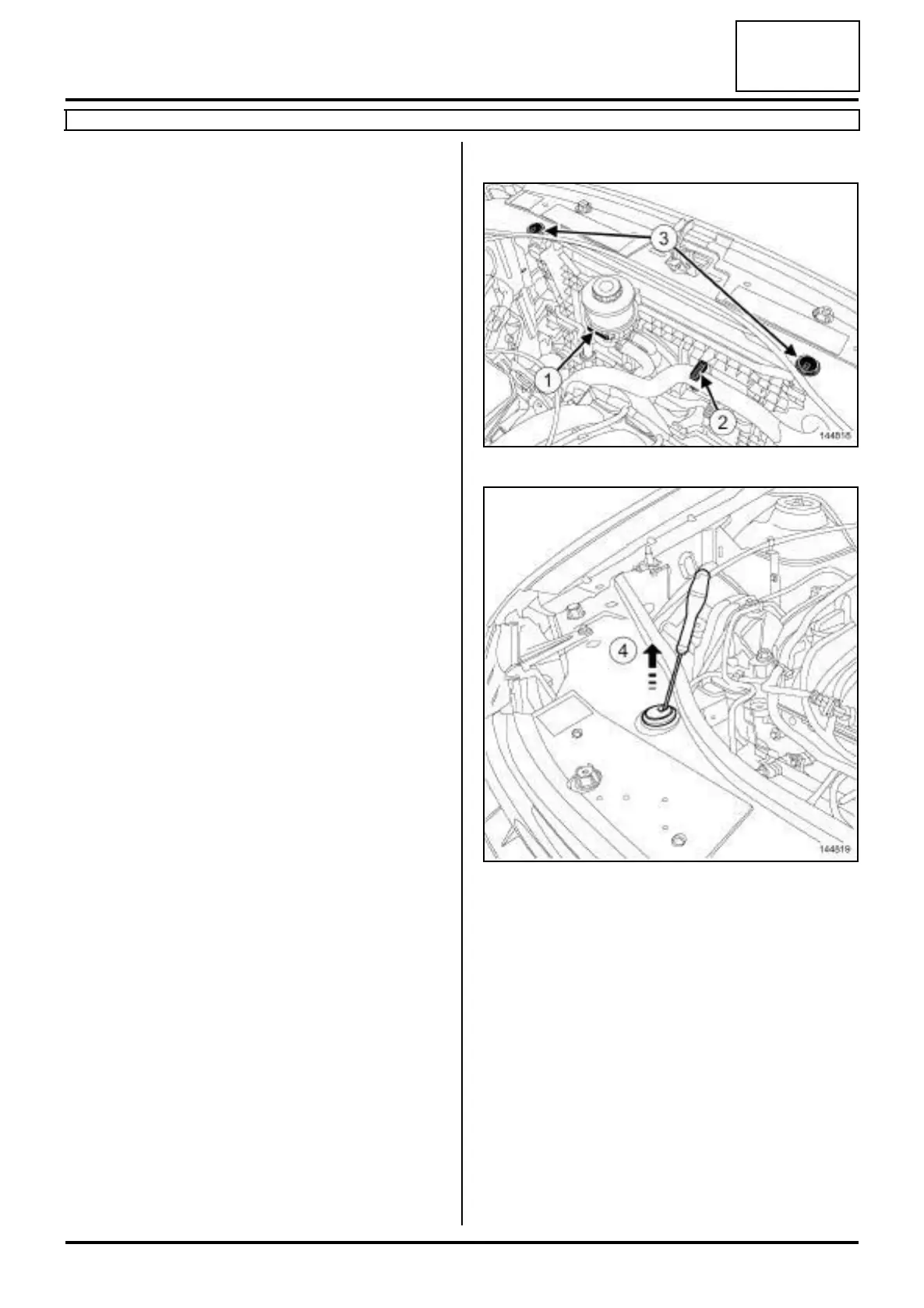

a Unclip:
- the power-assisted steering hoses on the fan as-
sembly,
- the power-assisted steering fluid reservoir from its
support at (1) ,
- the engine coolant hose at (2) .
a Press on the clips of the centring pins (3) on the en-
gine cooling fan assembly using a screwdriver and
pull them according to the direction of the arrow (4) .
a Secure the power-assisted steering fluid reservoir to
the engine.
a Remove the power assisted steering fluid reservoir
bracket.
144818
144819
