12A-3
FUEL MIXTURE
Air filter: Removal - Refitting
K4M
12A
REMOVAL
I - REMOVAL PREPARATION OPERATION
a Remove the air resonator (see 12A, Fuel mixture,
Air resonator: Removal - Refitting, page 12A-2) .
a Disconnect the brake servo vacuum pipe (1) from
the inlet distributor.
II - REMOVAL OPERATION

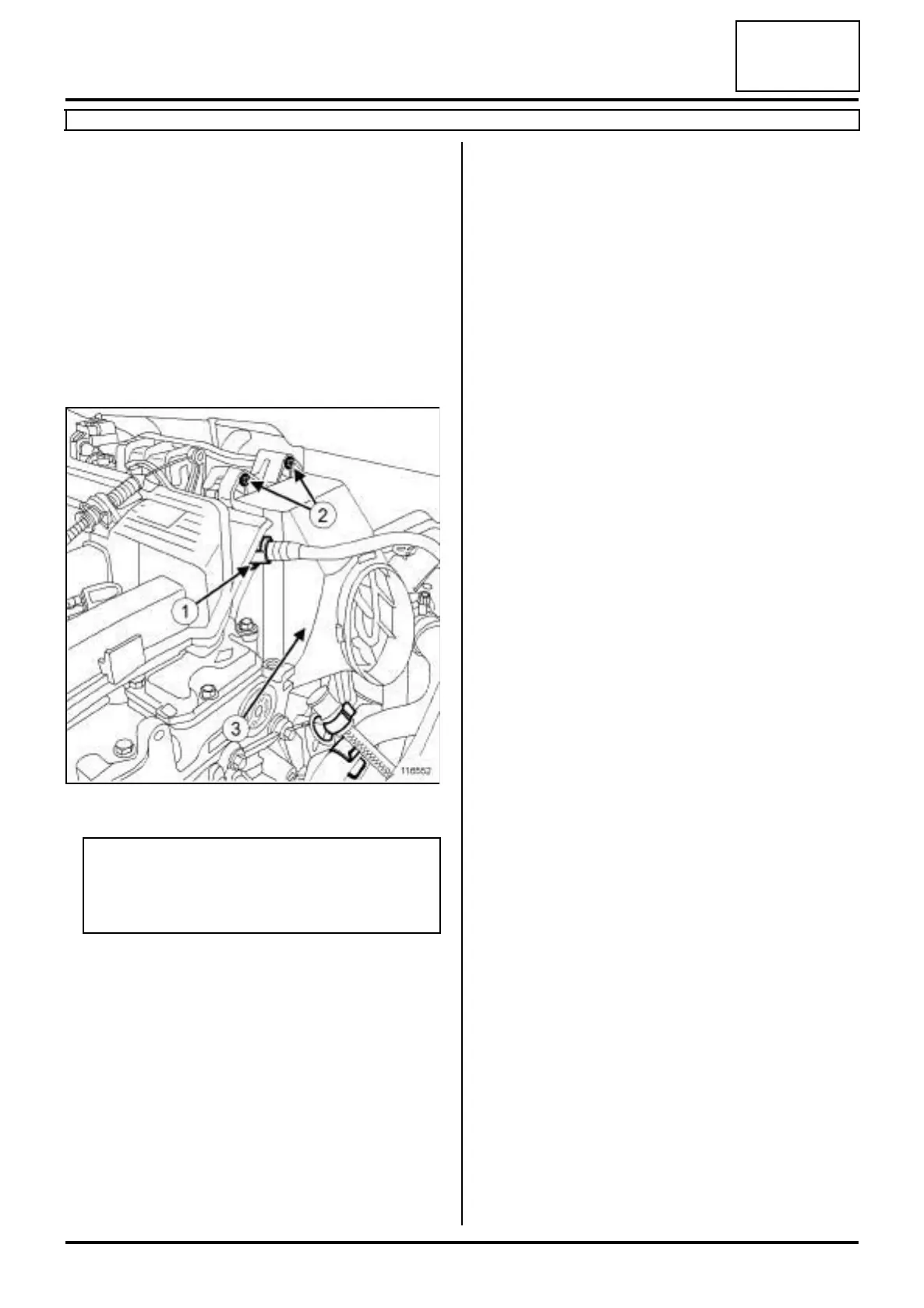

a
a Remove:
-the two bolts (2) from the air filter cover,
-the air filter cover (3) ,
-the air filter.
REFITTING
I - REFITTING PREPARATION OPERATION
a Clean the air filter housing.
II - REFITTING OPERATION FOR PART
CONCERNED
a Refit:
- the air filter,
- the air filter cover,
- the two air filter cover bolts.
III - FINAL OPERATION
a Reconnect the brake servo vacuum pipe to the inlet
distributor.
a Refit the air resonator (see 12A, Fuel mixture, Air
resonator: Removal - Refitting, page 12A-2) .
116552
WARNING
Do not damage the vacuum outlet on the inlet
distributor. If it is damaged, the inlet distributor
will need to be replaced.
