12A-4
FUEL MIXTURE
Air filter: Removal - Refitting
K9K
12A
REMOVAL
I - REMOVAL PREPARATION OPERATION
a Remove the air filter unit (see 12A, Fuel mixture,
Air filter unit: Removal - Refitting, page 12A-6) .
II - OPERATION FOR REMOVAL OF PART
CONCERNED

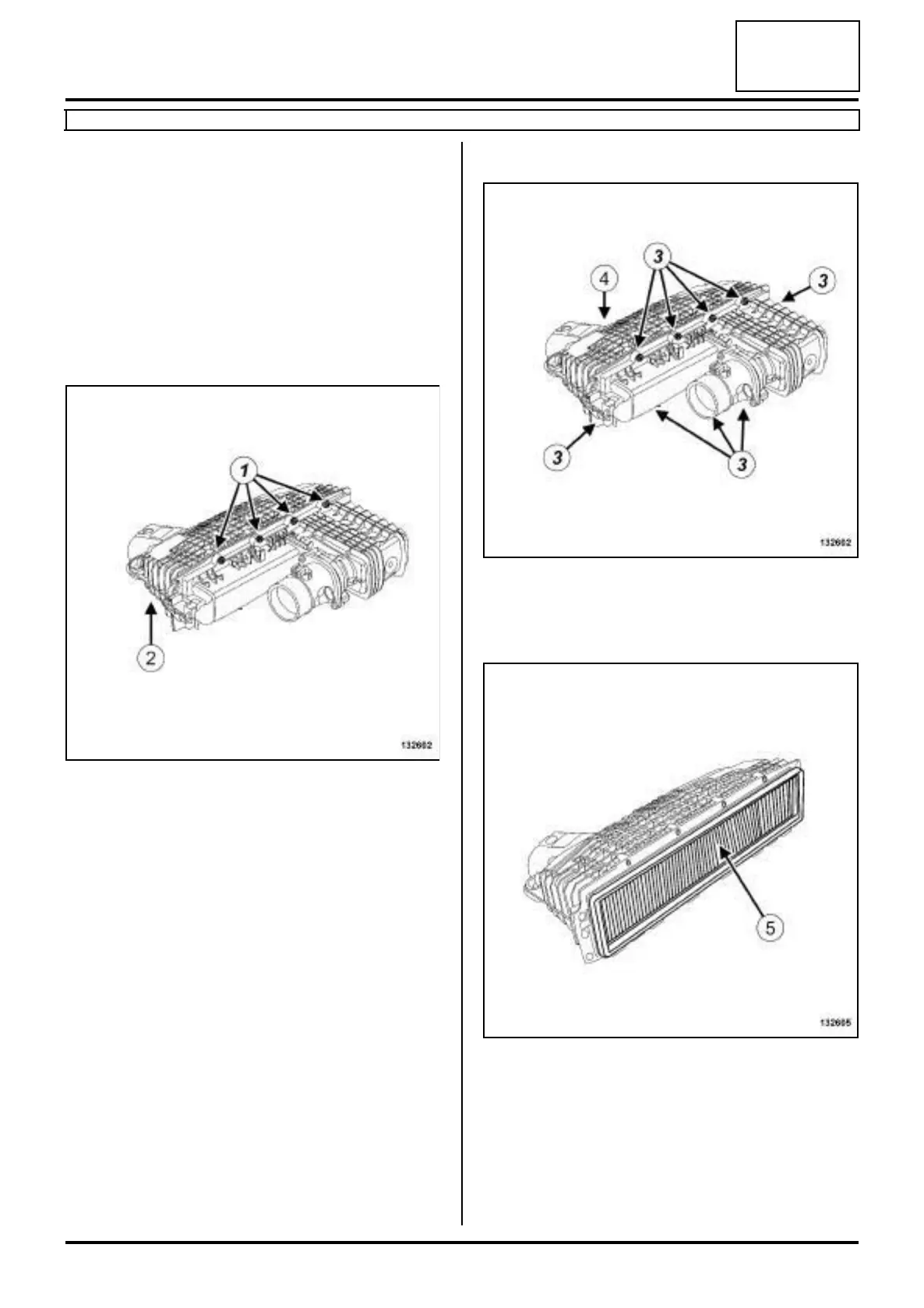

1 - First fitting of air filter unit
a Remove the 4 bolts (1) from the air filter unit.
a Pivot the hinged cover (2) of the air filter unit in rela-
tion to the air filter unit tank.
a Move aside the air filter unit cover (2) .
2 - Second fitting of air filter unit
a Remove the 9 bolts (3) from the air filter unit.
a Move aside the air filter unit cover (4) .
a Remove the air filter (5) from the air filter unit cover.
REFITTING
I - REFITTING PREPARATION OPERATION
a Clean the air filter unit.
132602
132602
132605
