12A-14
FUEL MIXTURE
Injector holder shim: Removal - Refitting
K4M
12A
REMOVAL
I - REMOVAL PREPARATION OPERATION
a Disconnect the battery (see Battery: Removal - Re-
fitting) (80A, Battery).
a Remove:
-the inlet distributor (see 12A, Fuel mixture, Inlet
distributor: Removal - Refitting, page 12A-12) ,
-the injector rail (see 17B, Petrol injection, Injec-
tor rail - Injectors: Removal - Refitting, page
17B-10) ,
-the multifunction support (see 10A, Engine and
cylinder block assembly, Multifunction sup-
port: Removal - Refitting, page 10A-48) .

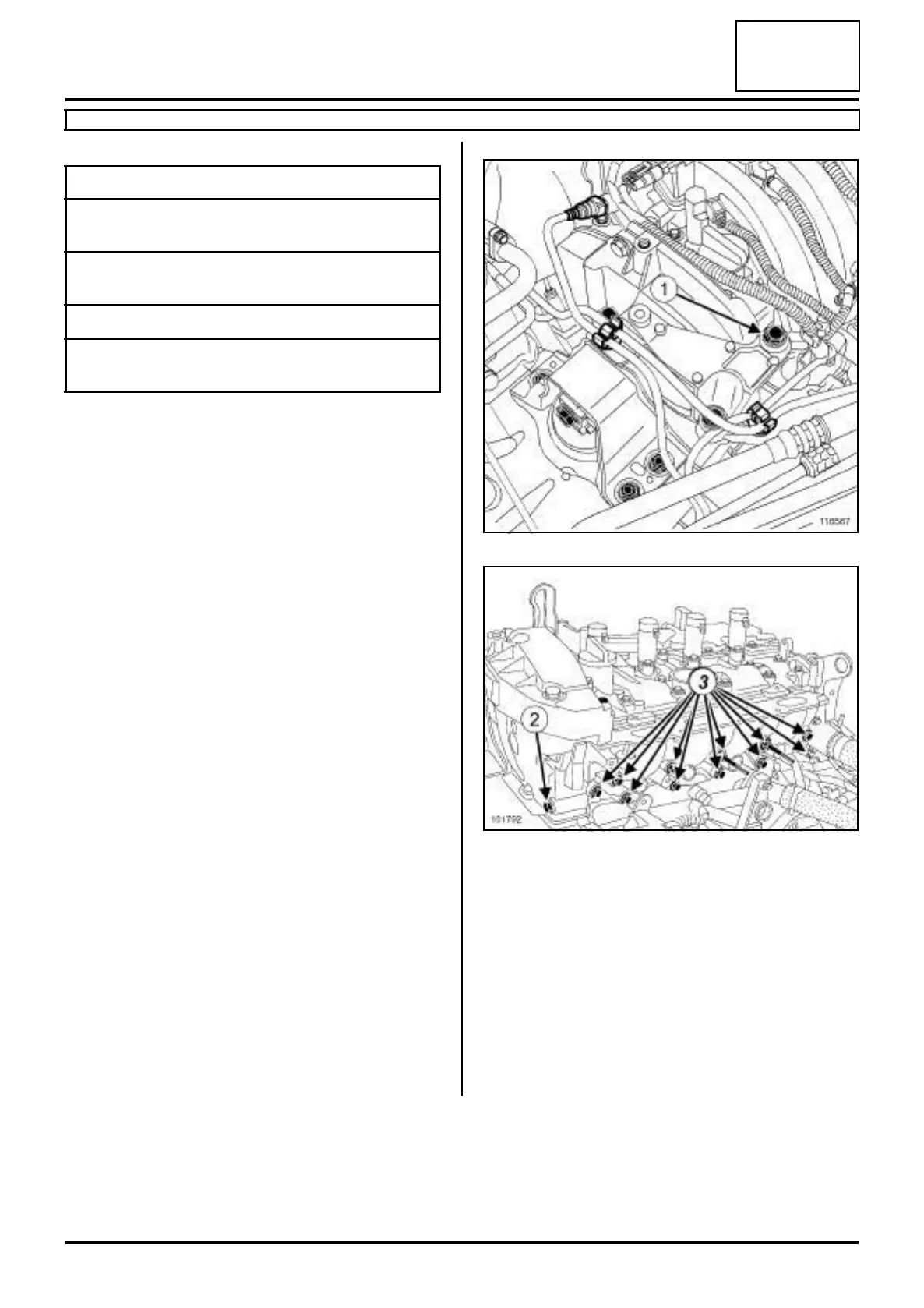

a Remove:
-the bolt (1) of the suspended mounting on the injec-
tor holder shim,
-the bolt (2) mounting the upper timing cover on the
injector holder shim.
II - REMOVAL OPERATION
a Remove:
- the bolts (3) from the injector holder shim,
- the injector holder shim.
Tightening torquesm
injector holder shim
bolts (7) and (8)
25 N.m
injector holder shim
bolts 9 to 16
21 N.m
upper timing cover bolt 41 N.m
suspended mounting
bolt
62N.m
116567
101792
