29A-4
DRIVESHAFTS
Front right-hand driveshaft: Removal - Refitting
JR5
29A
REMOVAL
I - REMOVAL PREPARATION OPERATION
a Position the vehicle on a two-post lift (see Vehicle:
Towing and lifting) (02A, Lifting equipment).
a Remove:
-the front right-hand wheel (see Wheel: Removal -
Refitting) (35A, Wheels and tyres),
-the engine undertray.
a Drain the manual gearbox (see 21A, Manual gear-
box, Manual gearbox oils: Draining - Filling, page
21A-1) .

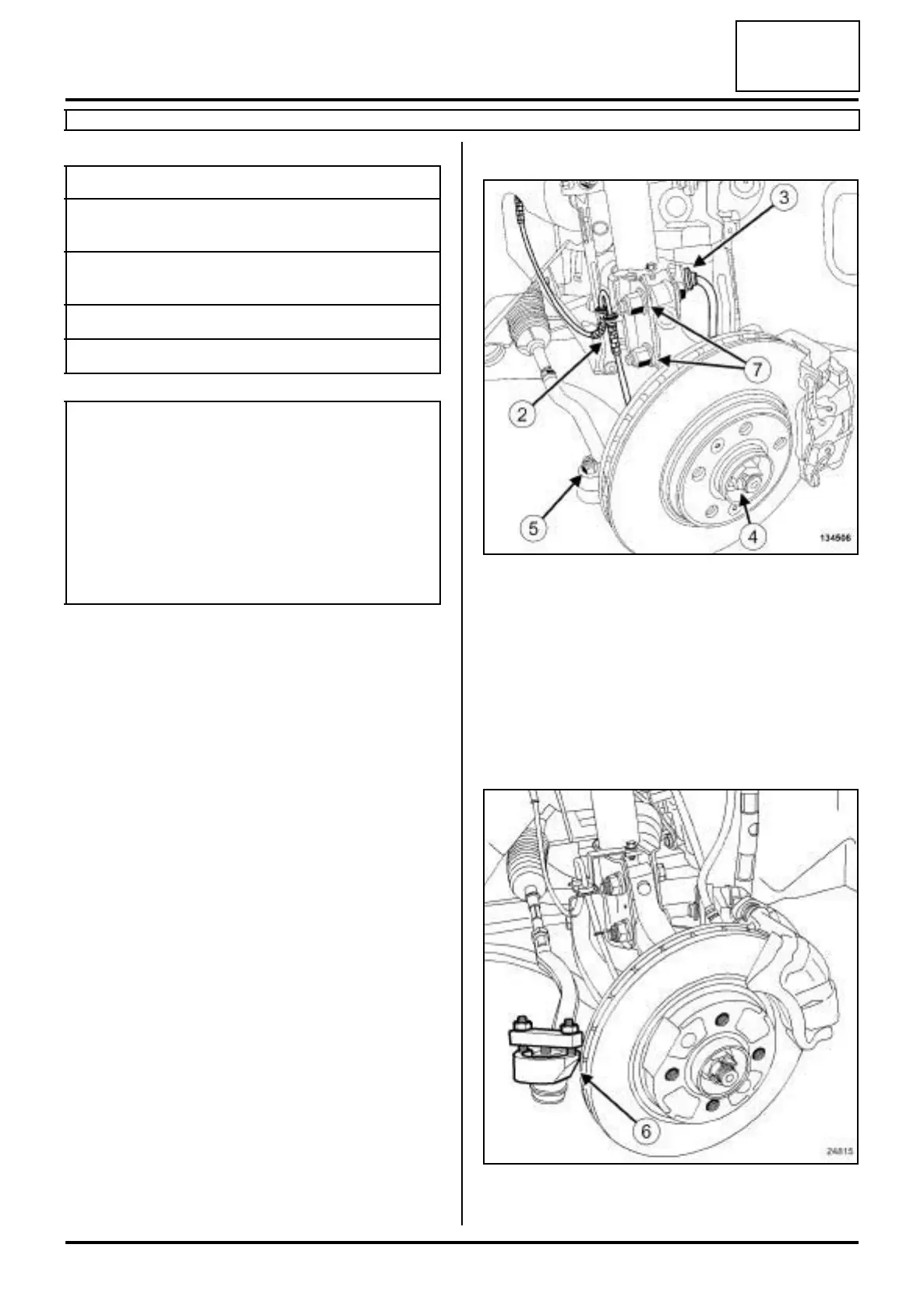

II - REMOVAL OPERATION
a Unclip:
- the wiring from the front right-hand wheel speed
sensor at (2) ,
- the brake hose of the front right-hand wheel at (3) .
a Remove:
- the hub nut (4) using the,
- the right-hand track rod ball joint nut (5) .
a Remove the ball joint from the right-hand track rod
using the tool (6) .
Tightening torquesm
driveshaft relay bearing
bracket bolts
21 N.m
shock absorber base
bolts
105 N.m
hub nut 280 N.m
track rod ball joint nut 37 N.m
WARNING
In order to prevent irreversible damage to the front
hub bearing:
- Do not loosen or tighten the driveshaft nut when
the wheels are on the ground.
- Do not place the vehicle with its wheels on the
ground when the driveshaft has been loosened or
removed.
134506
24815
