20A-4
CLUTCH
Pressure plate - Disc: Removal - Refitting
K4M
20A
REMOVAL
I - REMOVAL PREPARATION OPERATION
a Remove the gearbox (see 21A, Manual gearbox,
Manual gearbox: Removal - Refitting, page 21A-
4) .
II - REMOVAL OPERATION

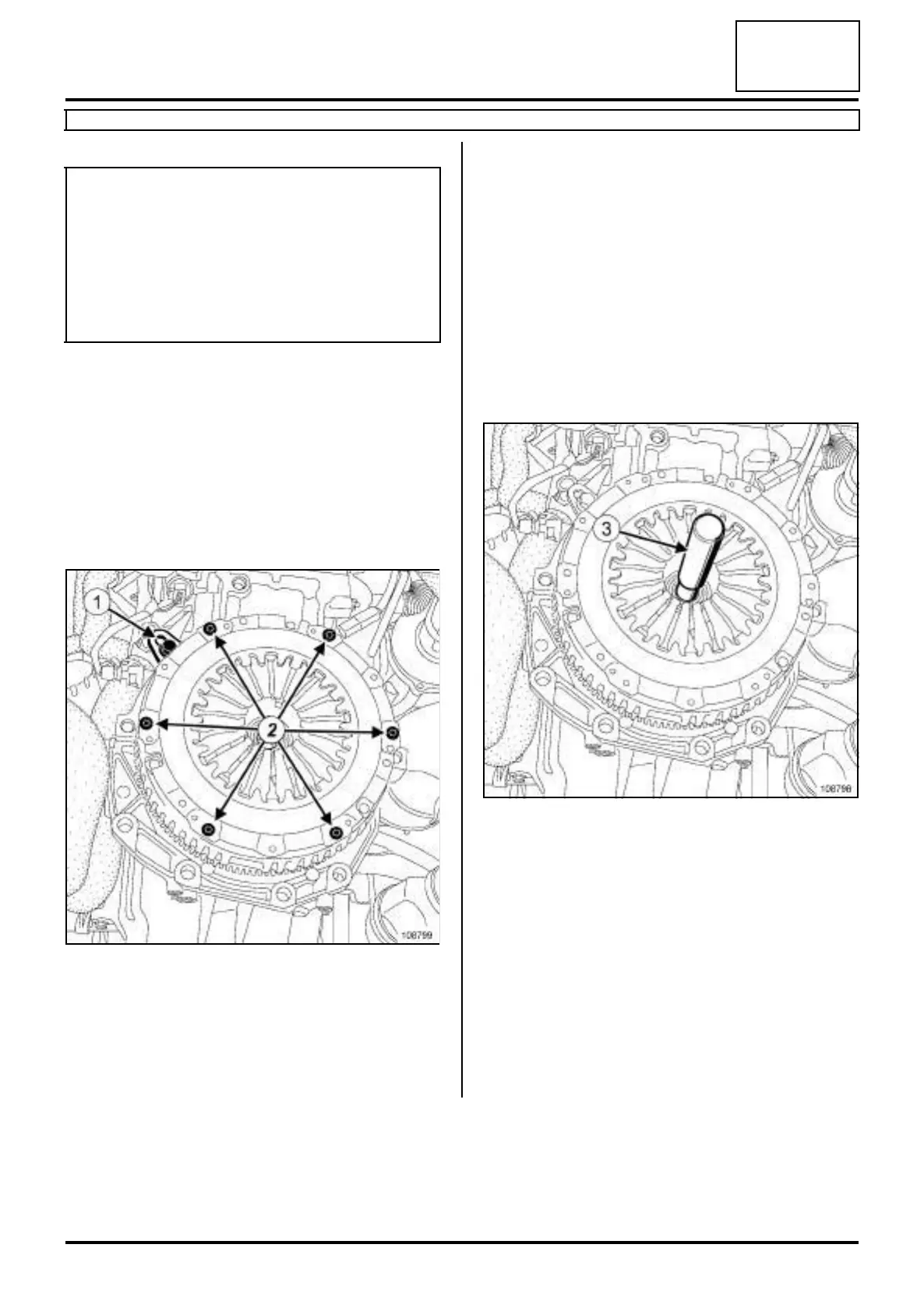

a Lock the engine using the (1) .
a Remove:
-the clutch pressure plate bolts (2) .
-the clutch pressure plate,
-the friction plate.
REFITTING
I - REFITTING PREPARATION OPERATION
a Replace any faulty parts.
a Use SURFACE CLEANER (see Vehicle: Parts
and consumables for the repair) (04B, Consuma-
bles - Products) to clean and degrease:
- the flywheel friction face,
- the clutch shaft splines.
II - REFITTING OPERATION
a Position the clutch plate.
a Centre the clutch plate using theor (3) .
a Gradually tighten the clutch pressure plate bolts ra-
dially.
a Remove the tool.
III - FINAL OPERATION
a Refit the gearbox (see 21A, Manual gearbox, Man-
ual gearbox: Removal - Refitting, page 21A-4) .
IMPORTANT
To avoid all risk of damage to the systems, apply
the safety and cleanliness instructions and opera-
tion recommendations before carrying out any
repair:
- (see 20A, Clutch, Clutch: Precautions for the
repair, page 20A-1) .
108799
108798
