37A-2
MECHANICAL COMPONENT CONTROLS
Master cylinder: Removal - Refitting
LEFT-HAND DRIVE
37A
REMOVAL
I - REMOVAL PREPARATION OPERATION
a Position the vehicle on a two-post lift (see Vehicle:
Towing and lifting) (02A, Lifting equipment).
a Remove the front engine cover (if fitted to the vehi-
cle).
a Disconnect the battery (see Battery: Removal - Re-
fitting) (80A, Battery).

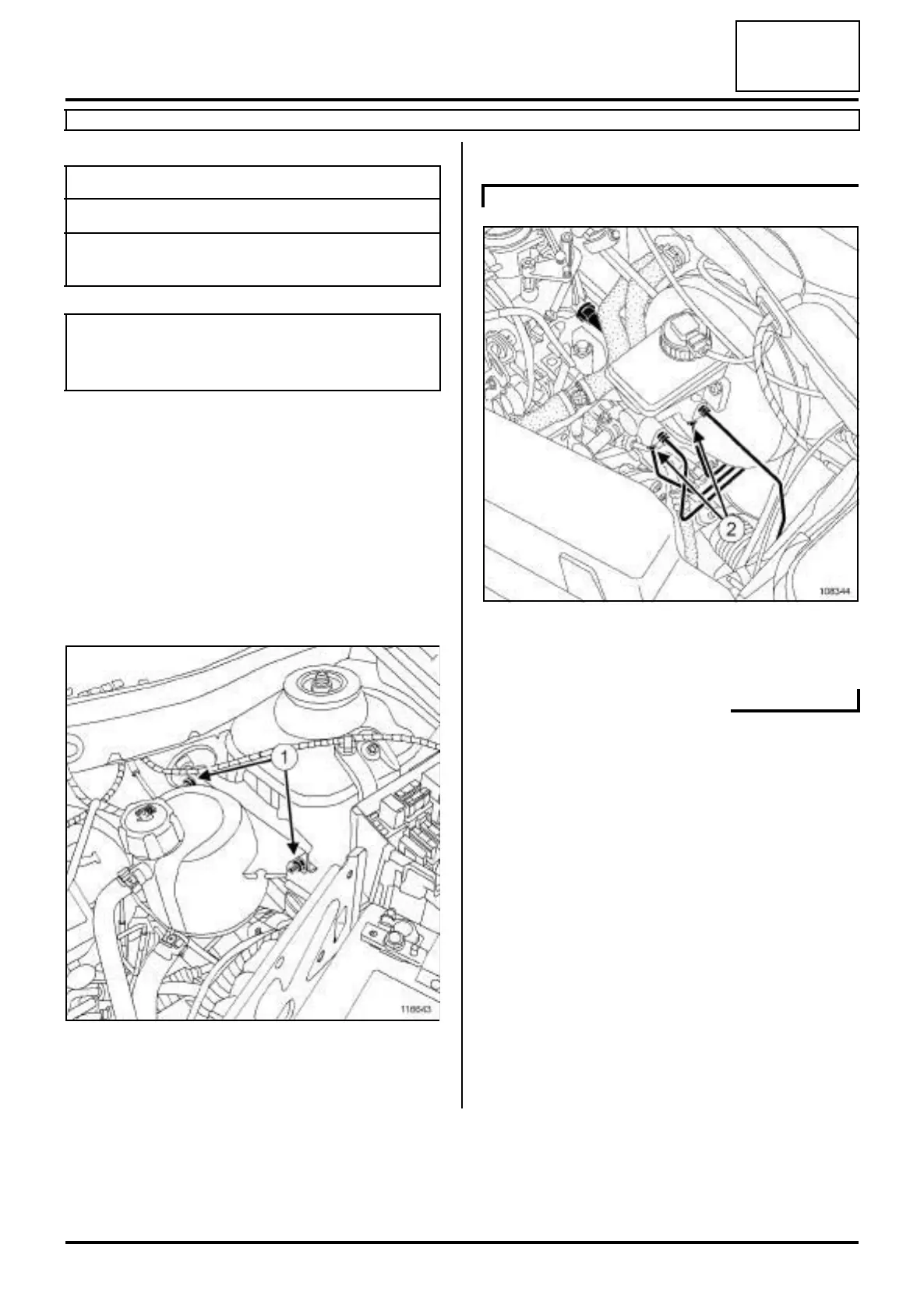

a Remove the expansion bottle nuts (1) .
a Move aside the expansion bottle, without emptying
it.
II - REMOVAL OPERATION
a Remove the rigid brake pipe unions at (2) and mark
their position.
Tightening torquesm
nuts on the brake servo 21 N.m
rigid brake pipe unions
on the master cylinder
14 N.m
WARNING
Prepare for the flow of fluid, and protect the sur-
rounding components.
116643
WITHOUT ANTI-LOCK BRAKING SYSTEM
108344
