29A-7
DRIVESHAFTS
Front driveshaft gaiter, wheel side: Removal - Refitting
JR5
29A
REMOVAL
I - REMOVAL PREPARATION OPERATION
a Remove the front driveshaft on the side concerned
(see 29A, Driveshafts, Front right-hand drive-
shaft: Removal - Refitting, page 29A-4) or (see
29A, Driveshafts, Front left-hand driveshaft: Re-
moval - Refitting, page 29A-1) .
II - REMOVAL OPERATION

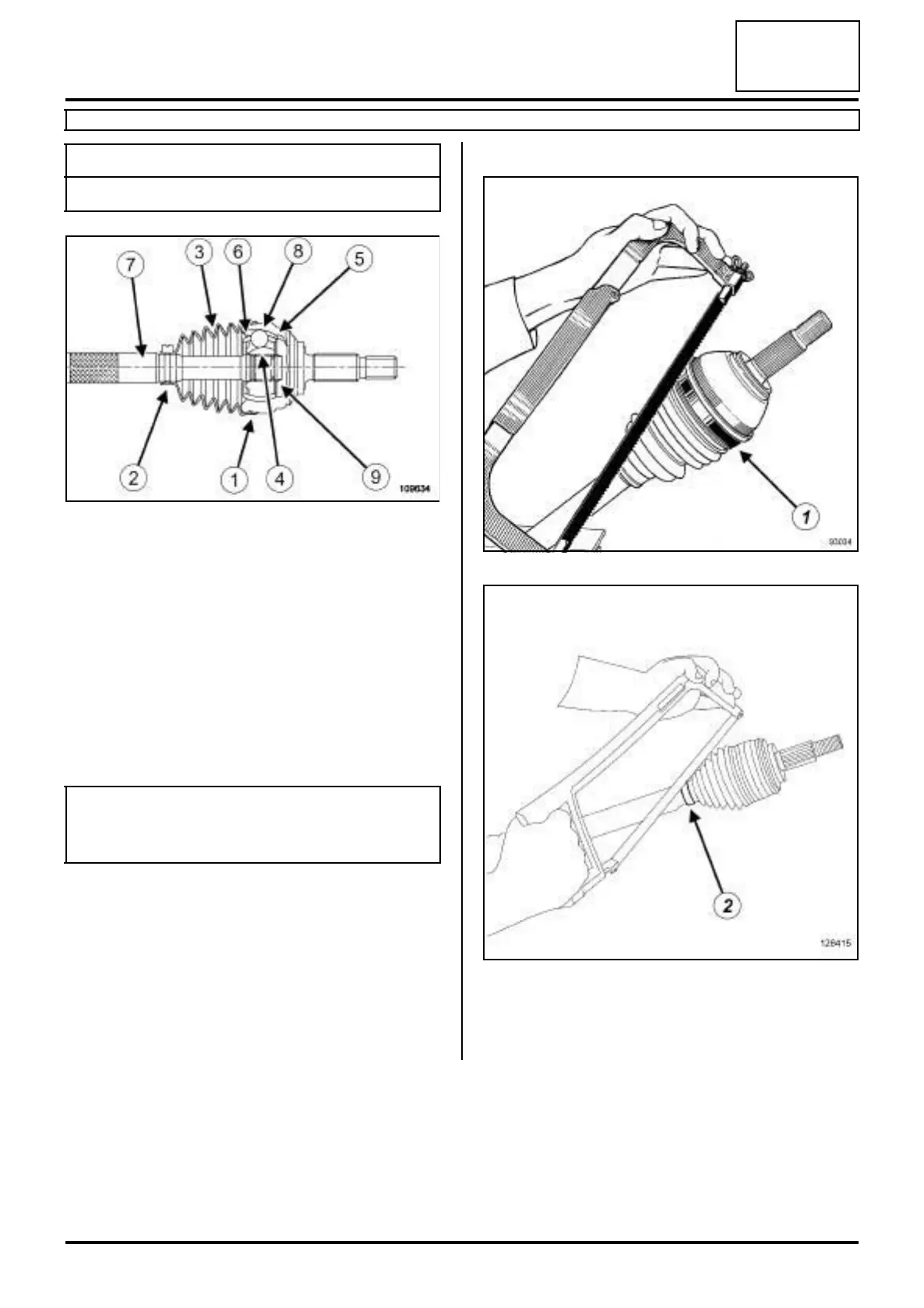

a Cut the big securing clip (1) and the small securing
clip (2) using cutting pliers or a metal saw, taking
care not to damage the stub axle bowl and the drive-
shaft.
Special tooling required
Emb. 880 Pin extractor tool.
109634
(1) Big securing clip
(2) Small securing clip
(3) Driveshaft gaiter
(4) Ball hub
(5) Stub axle bowl
(6) Ball race
(7) Driveshaft
(8) Balls
(9) Lock ring
IMPORTANT
Wear leaktight gloves (Nitrile type) for this opera-
tion.
93034
128415
