Renault Duster 2007 - Front Brake Calliper Mounting: Removal - Refitting

31A-11
FRONT AXLE COMPONENTS
Front brake calliper mounting: Removal - Refitting
31A
REMOVAL
I - REMOVAL PREPARATION OPERATION
a Position the vehicle on a two-post lift (see Vehicle:
Towing and lifting) (02A, Lifting equipment).
a Unlock the steering column.
a Remove:
-the front wheel on the side in question (see 35A,
Wheels and tyres, Wheel: Removal - Refitting,
page 35A-1) ,
-the front brake pads (see 31A, Front axle compo-
nents, Front brake pads: Removal - Refitting,
page 31A-3) .
a Remove the guide pin upper bolt (1) while holding
the nut (2) .
a Suspend the front brake calliper from the suspen-
sion spring.
II - REMOVAL OPERATION
a Remove:
- the two front brake calliper mounting bolts (3) ,
- the front brake calliper mounting.
Tightening torquesm
front brake calliper sup-
port bolts
105 N.m
guide pin upper bolt 34 N.m
IMPORTANT
To avoid all risk of damage to the systems, apply
the safety and cleanliness instructions and opera-
tion recommendations before carrying out any
repair (see 31A, Front axle components, Front
axle components: Precautions for the repair,
page 31A-1) .
WARNING
In order not to damage the brake hose:
- do not tension the hose,
- do not twist the hose,
- check that there is no contact with the surrounding
components.

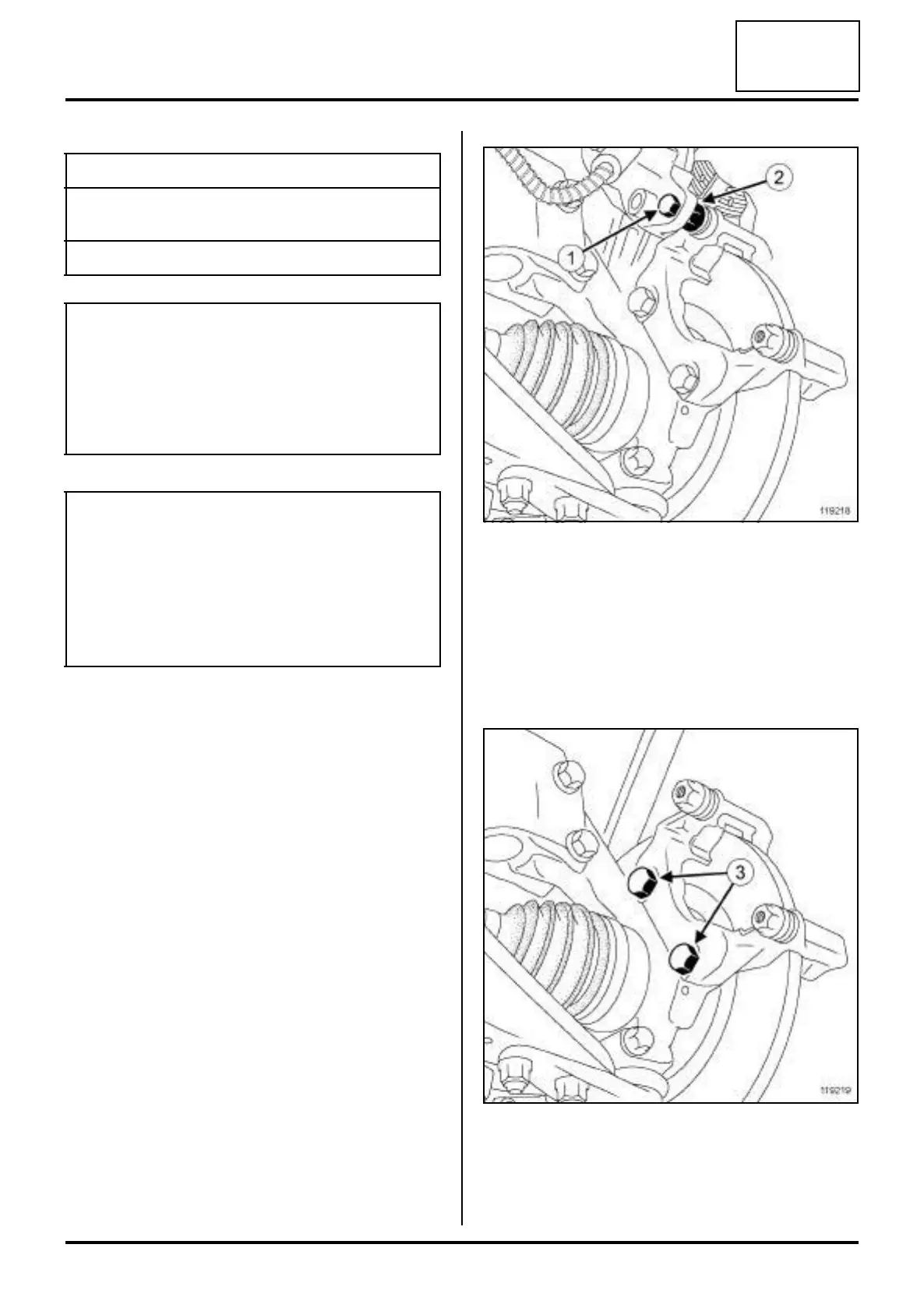

119218
119219
