Renault Duster 2007 - Throttle Valve Potentiometer: Removal -Refitting

17B-6
PETROL INJECTION
Throttle valve potentiometer: Removal -Refitting
K4M
17B
REMOVAL
I - REMOVAL PREPARATION OPERATION
a Remove the air resonator (see 12A, Fuel mixture,
Air resonator: Removal - Refitting, page 12A-2) .

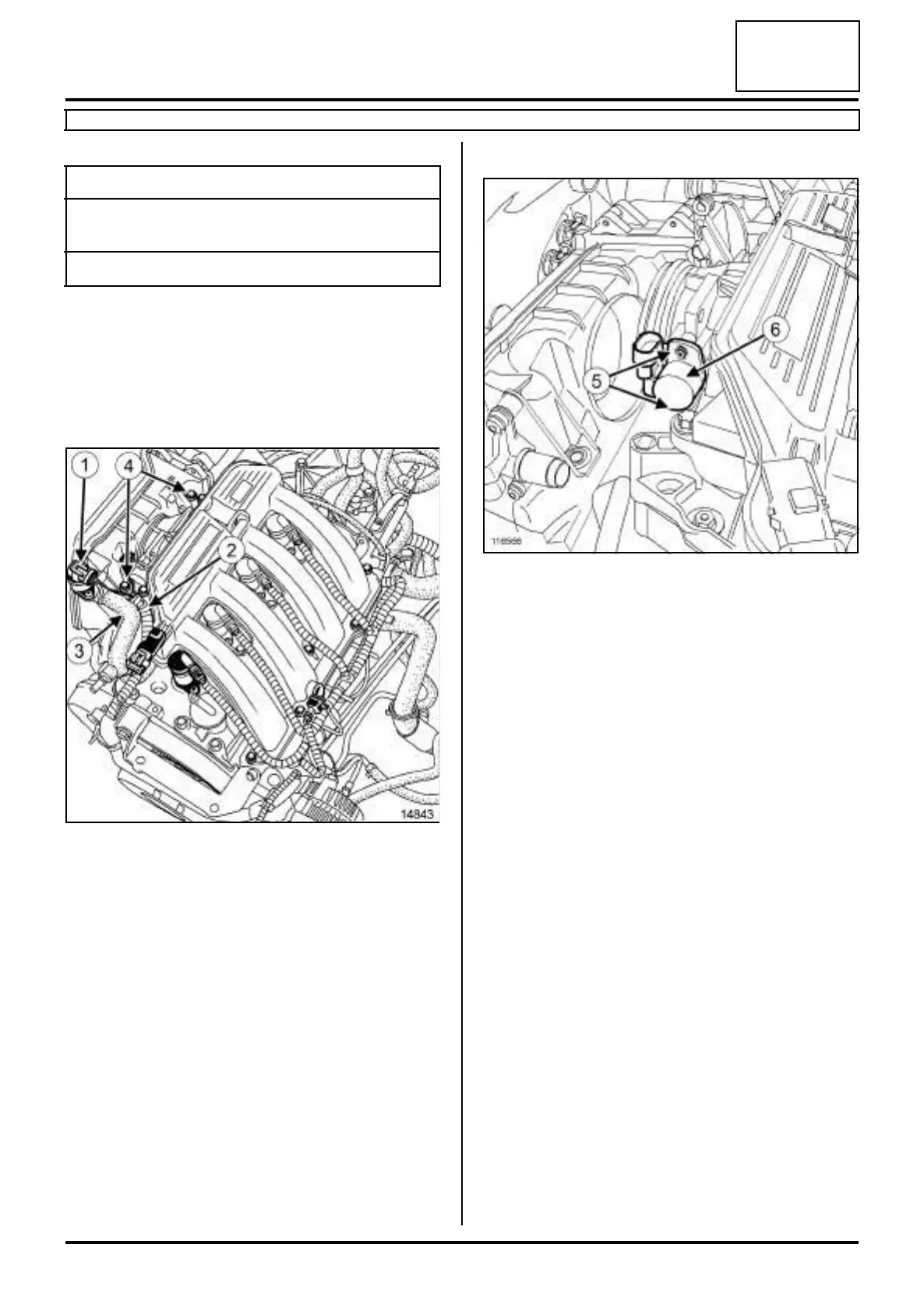

a Disconnect:
-the connector (1) from the idle speed regulation
stepping motor,
-the connector (2) from the throttle valve potentiom-
eter,
-the petrol vapour recirculation pipe (3) .
a Remove the two bolts (4) from the air filter unit.
a Remove the air filter unit from the throttle valve.
II - REMOVAL OPERATION
a Remove:
- the two bolts (5) from the throttle valve potentiome-
ter,
- the throttle valve potentiometer (6) .
REFITTING
I - REFITTING OPERATION
a Refit:
- the throttle valve potentiometer,
- the two throttle valve potentiometer bolts.
a Torque tighten the throttle valve potentiometer
bolts (2.4 N.m) using the tool.
II - FINAL OPERATION
a Refit the air filter unit in place.
a Refit the two air filter unit bolts.
a Torque tighten the air filter unit bolts (9 N.m).
a Connect:
- the petrol vapour recirculation pipe,
- the connector from the throttle valve potentiometer,
-the idle speed regulation stepping motor connec-
tor.
a Refit the air resonator (see 12A, Fuel mixture, Air
resonator: Removal - Refitting, page 12A-2) .
Tightening torquesm
throttle valve potentiom-
eter bolts
2.4 N.m
air filter unit bolts 9 N.m
14843
116566
