87B-1
PASSENGER COMPARTMENT CONNECTION UNIT
UCH: Removal - Refitting
87B
REMOVAL
I - REMOVAL PREPARATION OPERATION
a
a Switch off the ignition.
a Disconnect the battery (see 80A, Battery, Battery:
Removal - Refitting, page 80A-2) .
II - OPERATION FOR REMOVAL OF PART
CONCERNED

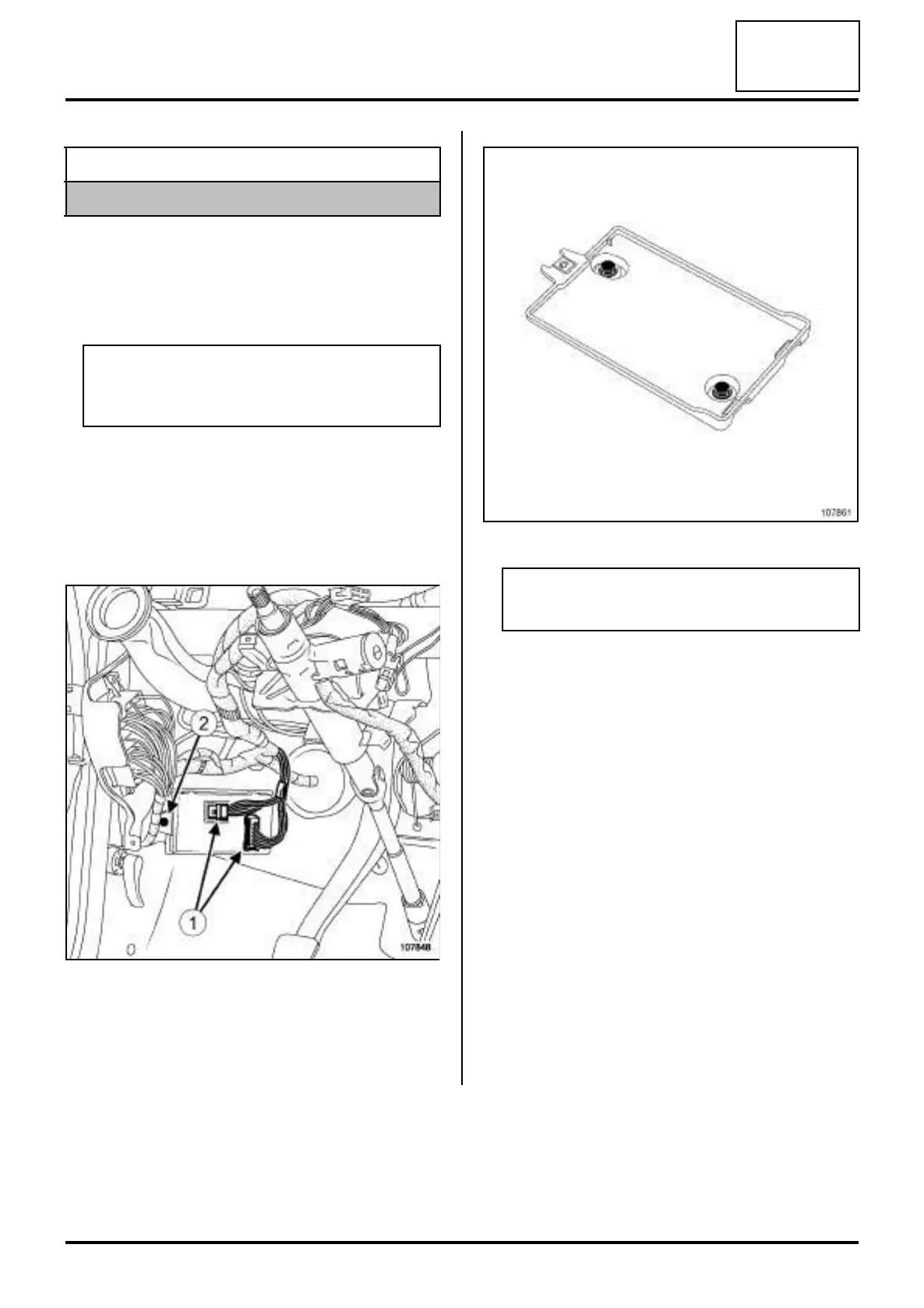

a Disconnect the connectors (1) .
a Remove:
-the UCH bolt (2) ,
-the UCH.
a
REFITTING
I - REFITTING OPERATION FOR PART
CONCERNED
a Refit:
- the UCH,
- the UCH bolt.
a Connect the connectors.
II - FINAL OPERATION.
a Connect the battery (see 80A, Battery, Battery: Re-
moval - Refitting, page 80A-2) .
a If the UCH has to be replaced, carry out the neces-
sary operations (see Fault finding - Replacement
of components) (87B, Passenger compartment
connection unit).
Equipment required
Diagnostic tool
Note:
If replacing the UCH, it is essential to display the
configurations using Diagnostic tool.
107848
107861
Note:
The UCH is secured onto its mounting.
