19A-1
COOLING

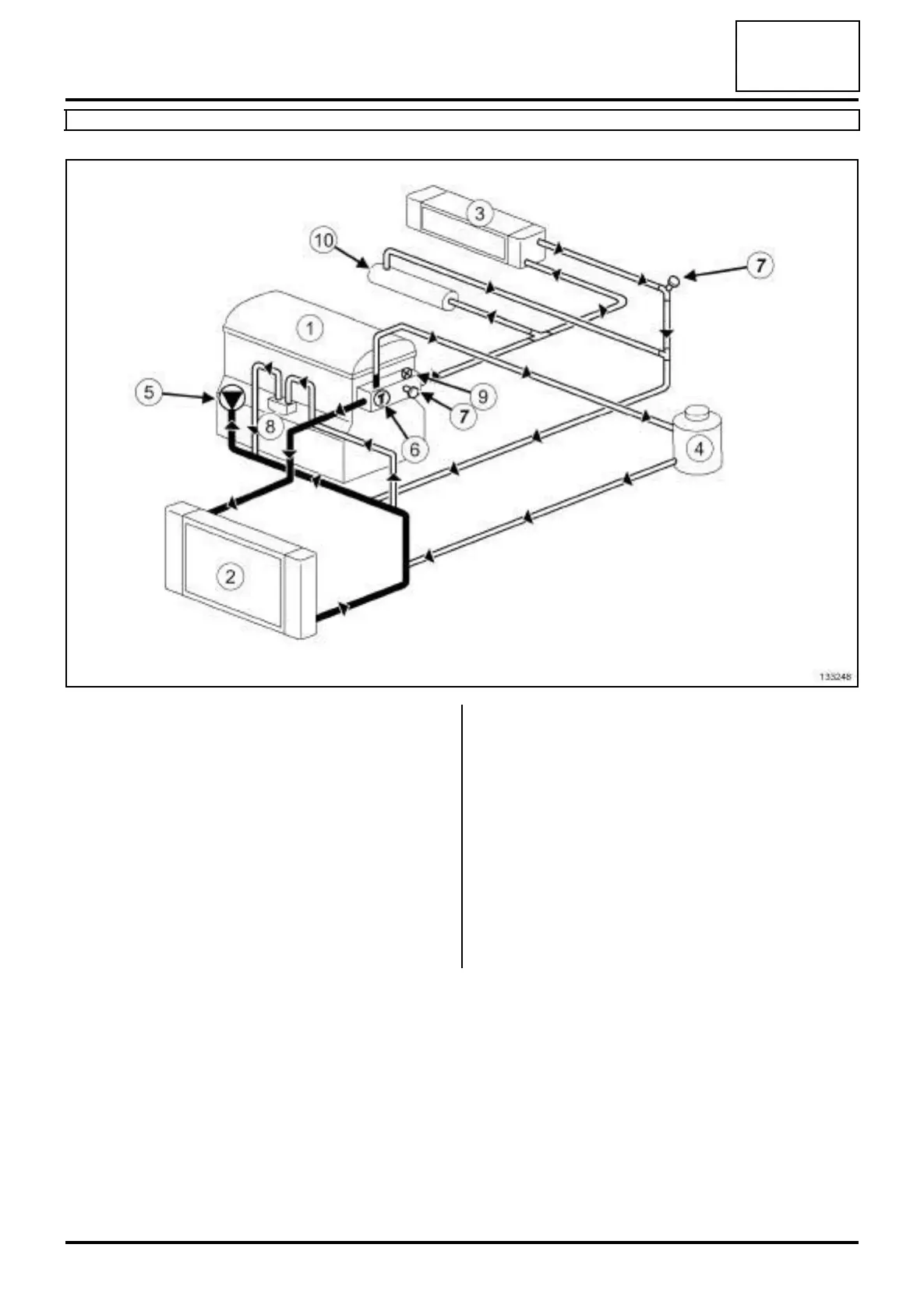

Engine cooling system: Operating diagram
K9K, and 796
19A
133248
(1) Engine
(2) Cooling radiator
(3) Heater radiator
(4) Expansion bottle
(5) Water pump
(6) Thermostat
(7) Bleed screw
(8) Oil-water heat exchanger
(9) Temperature switch
(10) EGR
