Renault Duster 2007 - Rear Brake Drum: Description

33A-9
REAR AXLE COMPONENTS
Rear brake drum: Description
33A
I - PREPARATION OPERATION FOR CHECK
Position the vehicle on a two-post lift (see Vehicle:
Towing and lifting) (02A, Lifting equipment).
Remove:
- the rear wheel (see 35A, Wheels and tyres, Wheel:
Removal - Refitting, page 35A-1) ,
-the rear brake drum (see 33A, Rear axle compo-
nents, Rear brake drum: Removal - Refitting, page
33A-7) .
II - TEST OPERATION
Position the sliding calliper to measure the internal di-
ameters of the brake drum.

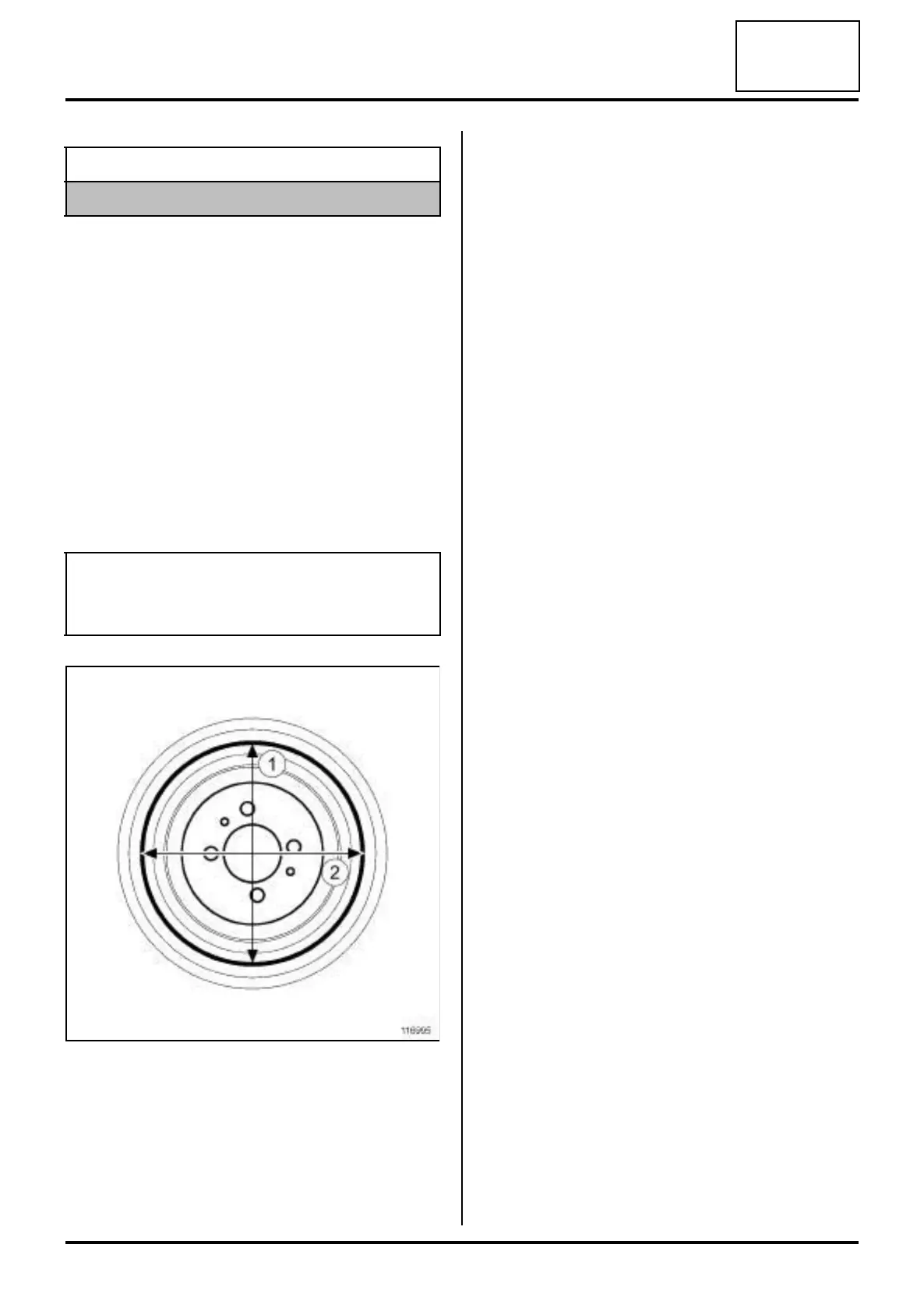

Measure the interior diameters of the brake drum on
the perpendicular axes (1) and (2) .
Compare the values with those recommended by the
manufacturer (see 30A, General information, Brake:
Specifications, page 30A-13) .
III - FINAL OPERATION
Replace the rear drums if necessary (see 33A, Rear
axle components, Rear brake drum: Removal - Re-
fitting, page 33A-7) .
Refit the rear wheel (see 35A, Wheels and tyres,
Wheel: Removal - Refitting, page 35A-1) .
Equipment required
sliding calliper
Note:
To check the internal diameter of the drum, use a
sliding calliper type tool for drums.
116995
