16A-1
STARTING - CHARGING
Alternator: Removal - Refitting
K9K
16A
REMOVAL
I - REMOVAL PREPARATION OPERATION
a Disconnect the battery (see Battery: Removal - Re-
fitting) (80A, Battery).
a Remove the accessories belt (see 11A, Top and
front of engine, Accessories belt: Removal - Re-
fitting, page 11A-2) .

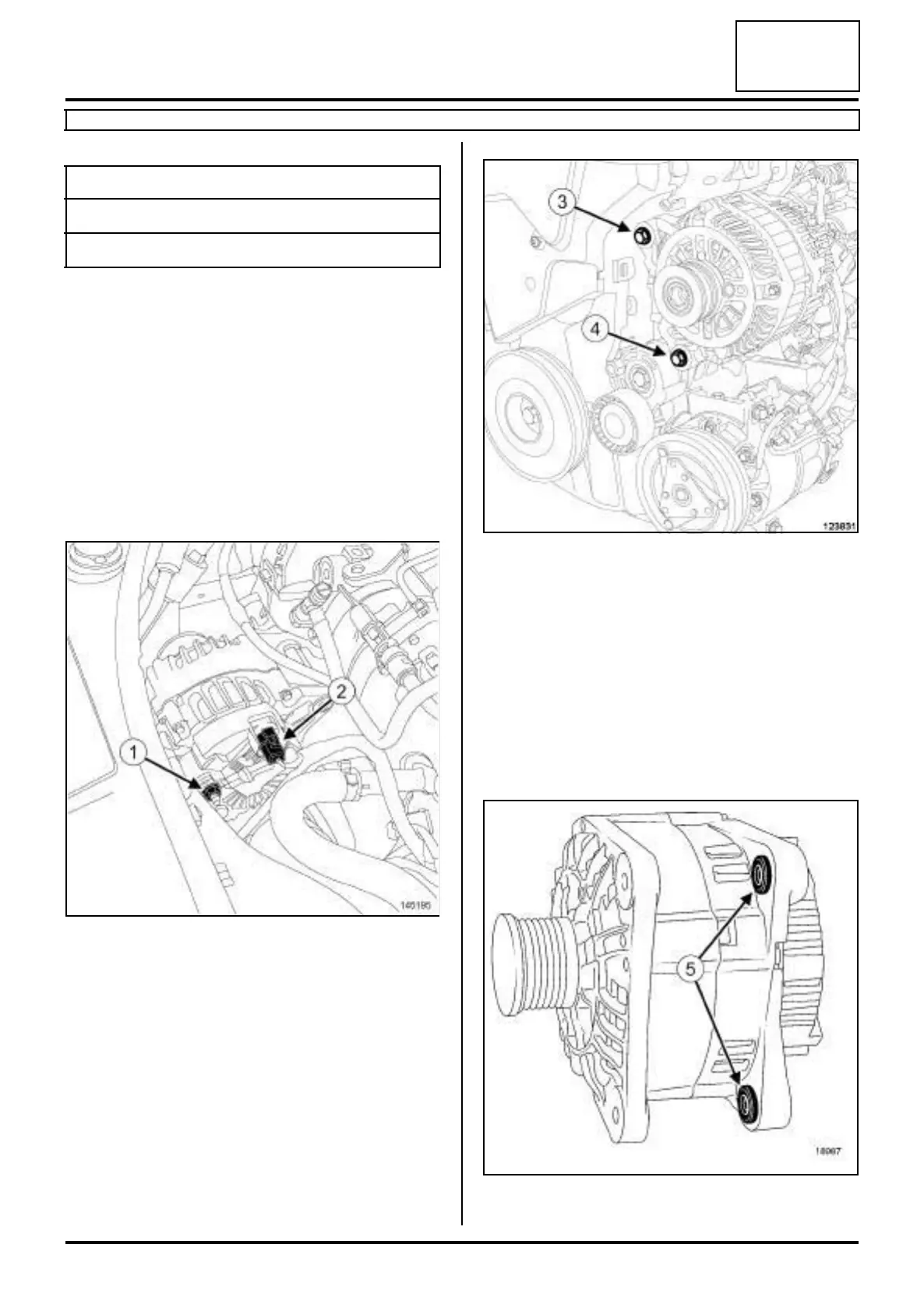

II - REMOVAL OPERATION
a Remove:
-the alternator lead nut (1) ,
-the lead from the alternator.
a Disconnect the connector (2) .
a Remove the alternator upper bolt (3) .
a Loosen the alternator lower bolt (4) .
a Remove the alternator with its lower bolt.
REFITTING
I - REFITTING PREPARATION OPERATION
a Push in the alternator rings (5) to facilitate fitting.
Tightening torquesm
alternator bolts 21 N.m
alternator lead nut 14 N.m
145195
123831
18987
