29A-11
DRIVESHAFTS
Front right-hand driveshaft gaiter, gearbox side: Removal - Refitting
JR5
29A
REMOVAL
I - REMOVAL PREPARATION OPERATION
a Remove the front right-hand driveshaft (see 29A,
Driveshafts, Front right-hand driveshaft: Remov-
al - Refitting, page 29A-4) .
II - REMOVAL OPERATION

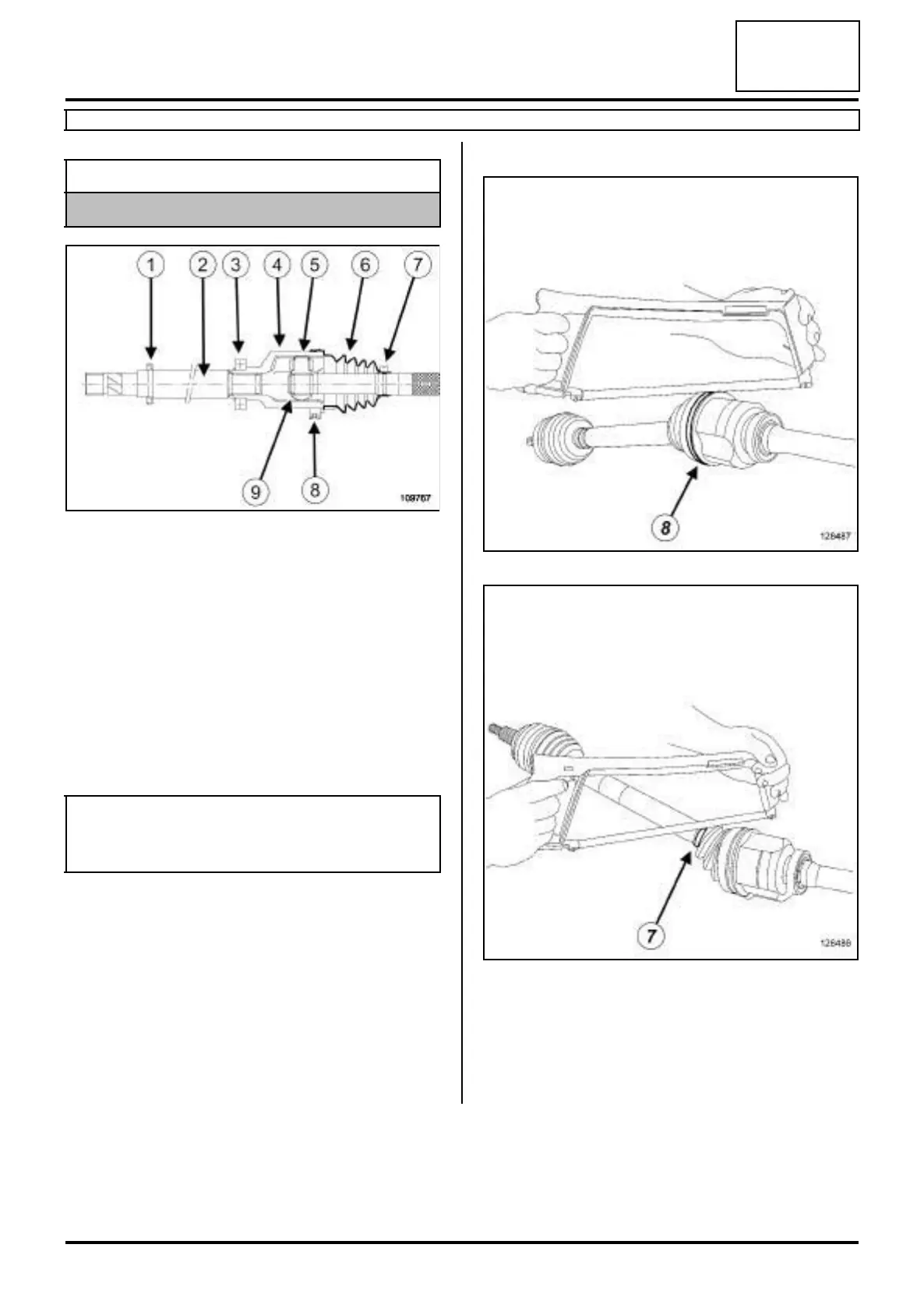

a Cut the big securing clip (8) and the small securing
clip (7) using cutting pliers or a metal saw, taking
care not to damage the yoke sleeve or the drive-
shaft.
a Push back the gaiter to release the driveshaft yoke
sleeve.
Equipment required
parts washer
109767
(1) Deflector
(2) Driveshaft
(3) Relay shaft bearing
(4) Driveshaft yoke sleeve
(5) Spider
(6) Driveshaft gaiter
(7) Small securing clip
(8) Big securing clip
(9) Lock ring
IMPORTANT
Wear leaktight gloves (Nitrile type) for this opera-
tion.
128487
128486
