31A-33
FRONT AXLE COMPONENTS
Front shock absorber and spring: Removal - Refitting
31A
REMOVAL
I - REMOVAL PREPARATION OPERATION
a Position the vehicle on a two-post lift (see ) (02A,
Lifting equipment.
a Unlock the steering column.
a Remove the front wheel (see 35A, Wheels and ty-
res, Wheel: Removal - Refitting, page 35A-1) .
a

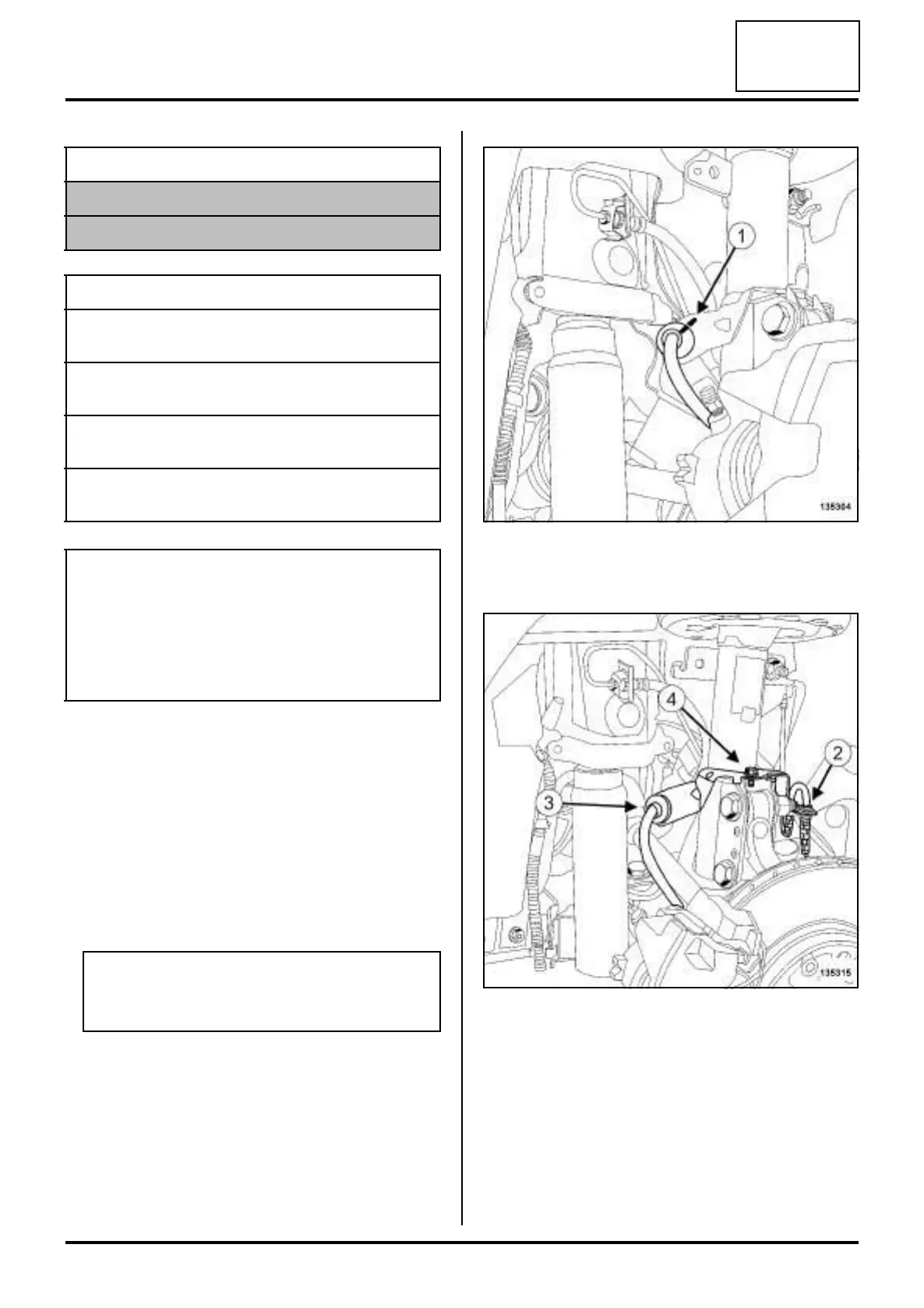

a Mark the position of the cap on the base of the shock
absorber using a indelible pencil (1) .
a Unclip:
-the wiring (2) of the wheel speed sensor from the
brake hose mounting,
- the cap (3) of the brake hose mounting.
a Remove:
- the bolt (4) of the brake hose mounting,
- the brake hose mounting.
Equipment required
indelible pencil
spring compressor
Tightening torquesm
internal nut of the shock
absorber rod
62 N.m
shock absorber nut on
the body
44 N.m
shock absorber base
bolts
105 N.m
brake hose mounting
bolt
8 N.m
IMPORTANT
To avoid all risk of damage to the systems, apply
the safety and cleanliness instructions and opera-
tion recommendations before carrying out any
repair (see 31A, Front axle components, Front
axle components: Precautions for the repair,
page 31A-1) .
Note:
Make sure the colours of the springs and shock
absorbers are identical with the spare parts.
135304
135315
