Renault Duster 2007 - Page 494

31A-34
FRONT AXLE COMPONENTS
Front shock absorber and spring: Removal - Refitting
31A

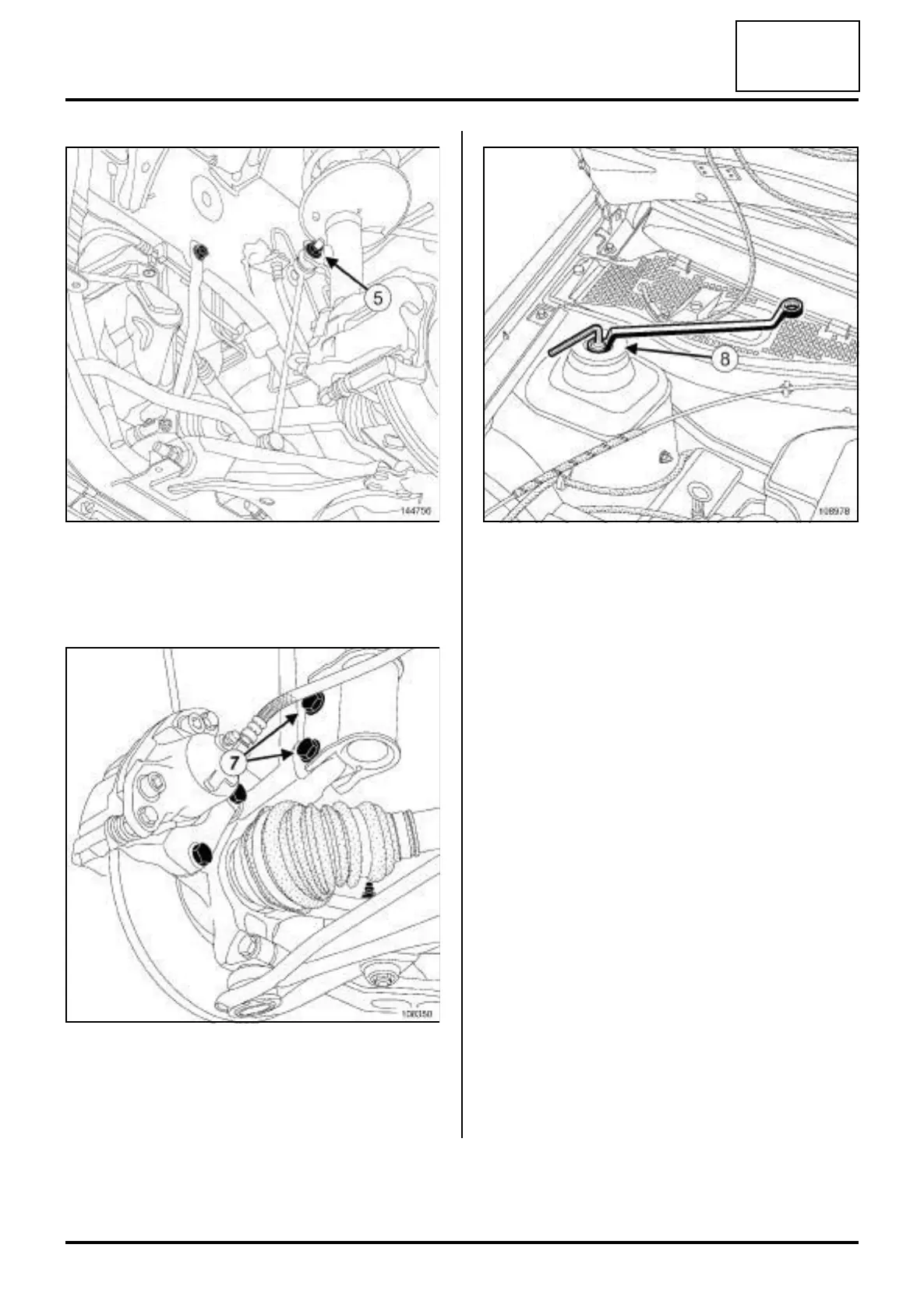

a Remove the nut (5) of the anti-roll bar tie-rod on the
shock absorber.
II - REMOVAL OPERATION
a Remove the shock absorber base bolts (7) .
a Remove the shock absorber base from the stub axle
carrier using the hub carrier for support.
a Attach the hub carrier to the body.
a Remove:
- the shock absorber cage with a male Allen key and
a ring spanner,
- the cage (8) ,
- the « spring - shock absorber » assembly.
a Place the appropriate cups on the spring compres-
sor and position the assembly on the spring.
a Detach the spring from the cups by compressing the
spring.
144756
108350
108978
