38C-5
ANTI-LOCK BRAKING SYSTEM
Hydraulic brake unit: Removal - Refitting
ANTI-LOCK BRAKING SYSTEM
38C
REMOVAL
I - REMOVAL PREPARATION OPERATION
a Disconnect the battery (see Battery: Removal - Re-
fitting) (80A, Battery).
a Position the pedal press on the brake pedal to limit
the outflow of brake fluid.
a Remove the soundproofing clips from the bulkhead.
a Move the soundproofing away from the bulkhead to
access the hydraulic brake unit.
II - REMOVAL OPERATION

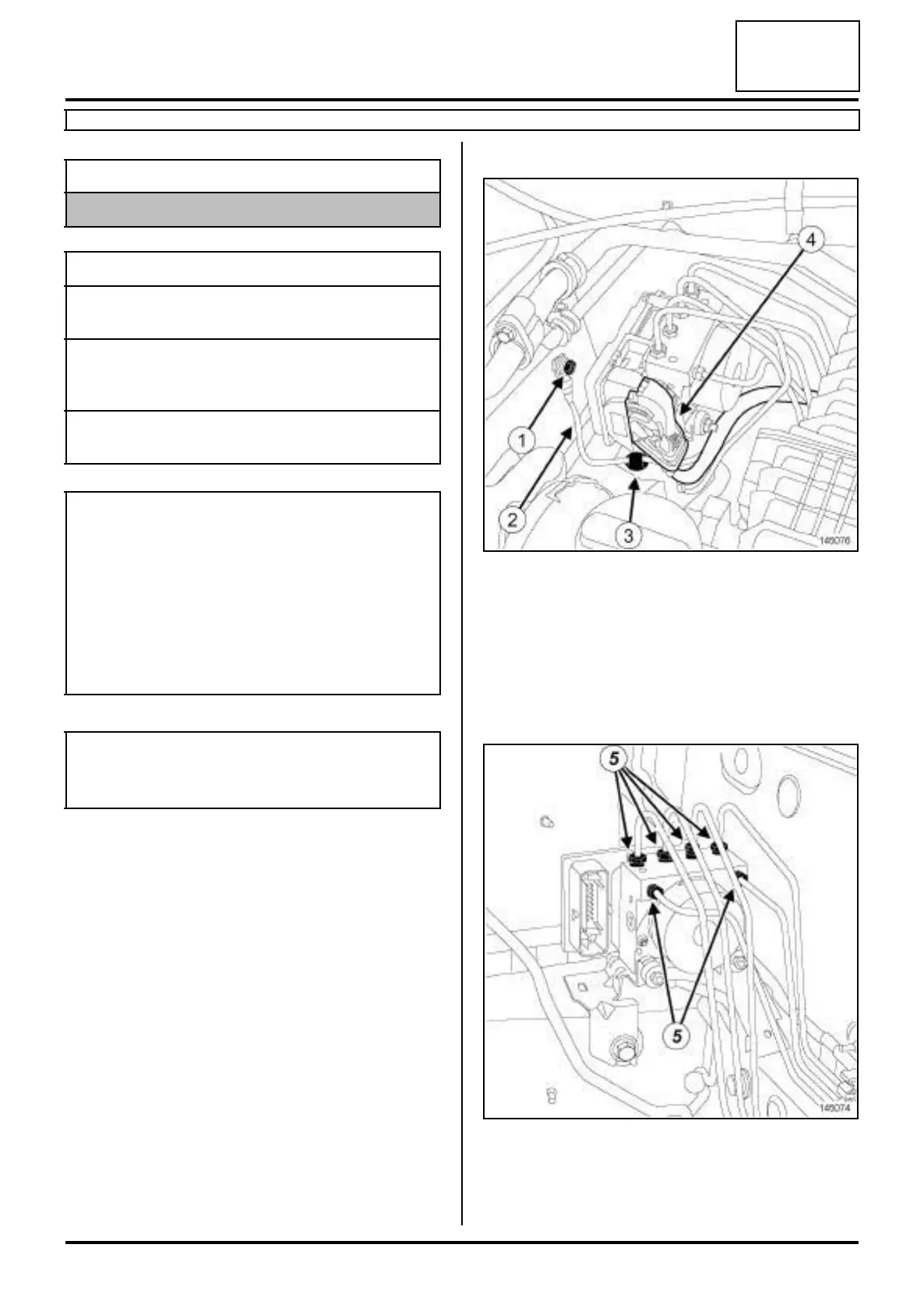

a Remove:
- the hydraulic brake unit earth wire nut (1) ,
- the hydraulic brake unit earth wire (2) .
a Unclip the earth wire from the hydraulic brake unit at
(3) .
a Disconnect the hydraulic brake unit connector (4) .
a Unscrew the rigid pipe unions (5) from the hydraulic
brake unit.
a Fit blanking plugs on the openings of the hydraulic
unit and brake pipes.
Equipment required
pedal press
Tightening torquesm
hydraulic brake unit
bolts on the support
8 N.m
rigid brake pipe unions
on the hydraulic brake
unit
13 N.m
hydraulic brake unit
earth wire nut
8 N.m
IMPORTANT
To avoid all risk of damage to the systems, apply
the safety and cleanliness instructions and opera-
tion recommendations before carrying out any
repair:
- (see 38C, Anti-lock braking system, ABS: Pre-
cautions for the repair, page 38C-4) ,
- (see ) (01D, Mechanical introduction).
WARNING
Prepare for the flow of fluid, and protect the sur-
rounding components.
145076
145074
