38C-6
ANTI-LOCK BRAKING SYSTEM
Hydraulic brake unit: Removal - Refitting
ANTI-LOCK BRAKING SYSTEM
38C
a Remove:

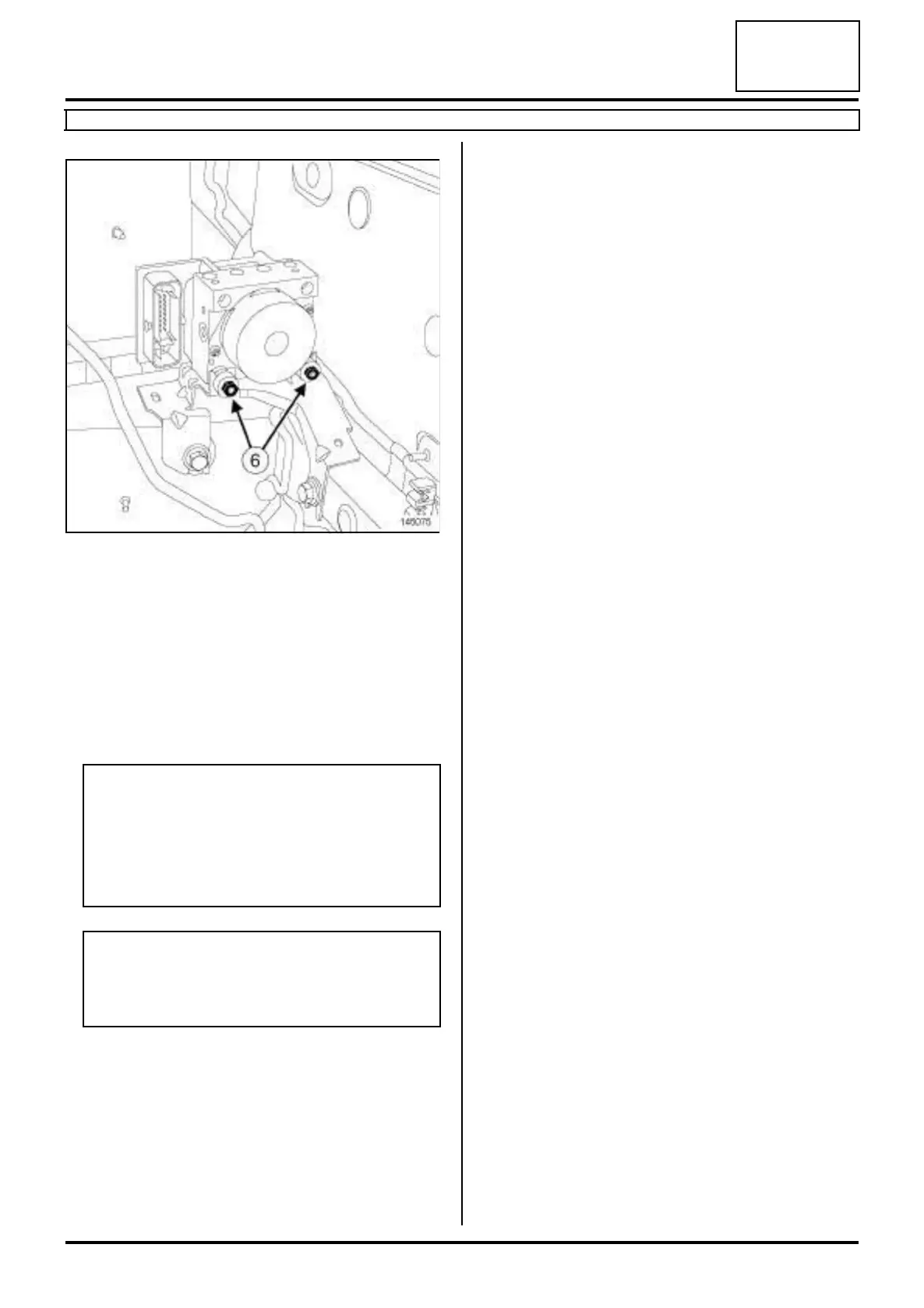

-the hydraulic brake unit bolts (6) from its mounting,
-the hydraulic brake unit.
REFITTING
I - REFITTING PREPARATION OPERATION
a
II - REFITTING OPERATION
a Proceed in the reverse order to removal.
a Torque tighten:
-the hydraulic brake unit bolts on the support (8
N.m),
-the rigid brake pipe unions on the hydraulic
brake unit (13 N.m),
- the hydraulic brake unit earth wire nut (8 N.m).
a Bleed the brake circuit (see 30A, General informa-
tion, Braking circuit: Bleed, page 30A-4) .
145075
WARNING
Do not remove the blanking plugs from each
component until the last moment.
Also, do not remove the components from their
packaging until they are to be fitted to the vehi-
cle.
WARNING
To prevent any premature wear, ensure that there
is no contact between the rigid pipe and the
body.
