Power-assisted steering pump assembly: Removal - Refitting
K9K, and AIR CONDITIONING
36B
REMOVAL
I - REMOVAL PREPARATION OPERATION
a Position the vehicle on a two-post lift (see Vehicle:
Towing and lifting) (02A, Lifting equipment).
a Disconnect the battery (see Battery: Removal - Re-
fitting) (80A, Battery).
a Remove:
-the front left-hand wheel (see 35A, Wheels and ty-
res, Wheel: Removal - Refitting, page 35A-1) ,
-the front bumper (see Front bumper: Removal -
Refitting) (55A, Exterior protection),
-the front left-hand wheel arch liner (see Front
wheel arch liner: Removal - Refitting) (55A, Ex-
terior protection).
II - REMOVAL OPERATION

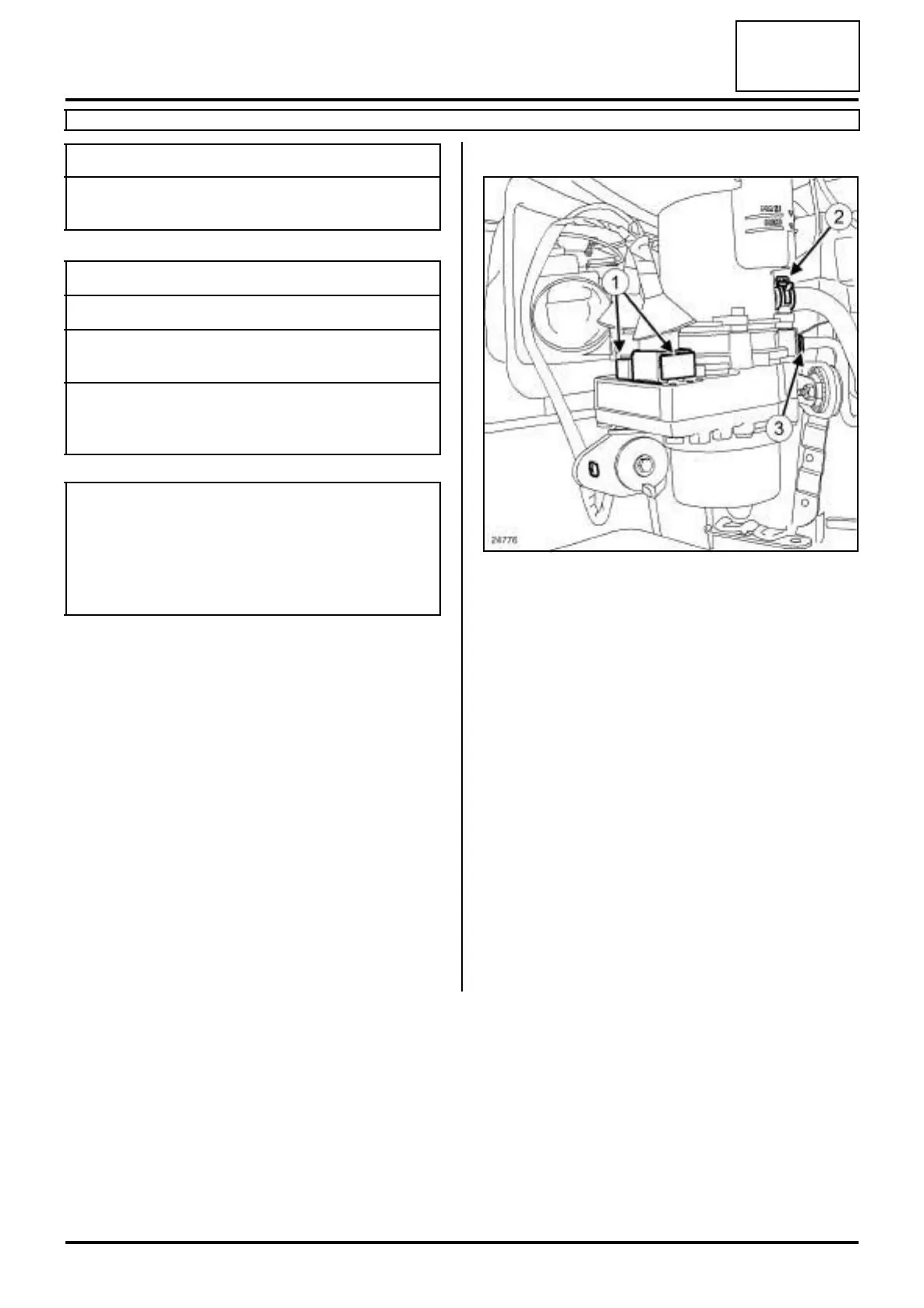

a Disconnect the pump assembly connectors (1) .
a Undo the low pressure pipe clip (2) on the pump as-
sembly reservoir using theor (Mot. 1448).
a Disconnect the low pressure pipe and drain the
pump assembly reservoir.
a Remove the high pressure pipe bracket bolt (3) from
the pump assembly.
a Disconnect the high pressure pipe from the pump
assembly.
a Fit plugs to the pipes and pump assembly openings
to prevent any impurities from entering the circuit.
Special tooling required
Mot. 1448 Remote operation pliers for
hose clips.
Tightening torquesm
pump assembly bolts 21 N.m
power-assisted steering
pump assembly nut
21 N.m
high pressure pipe
bracket bolt on the
pump assembly
21 N.m
IMPORTANT
To avoid all risk of damage to the systems, apply
the safety and cleanliness instructions and opera-
tion recommendations before carrying out any
repair (see 36A, Steering assembly, Steering:
Precautions for the repair, page 36A-2) .
