36B-12
POWER ASSISTED STEERING
Power-assisted steering pump pulley: Removal - Refitting
36B
REMOVAL
a Remove the power assisted steering pump (see
36B, Power assisted steering, Power-assisted
steering pump: Removal - Refitting, page 36B-5) .
a Use the press with a jaw extractor.
REFITTING

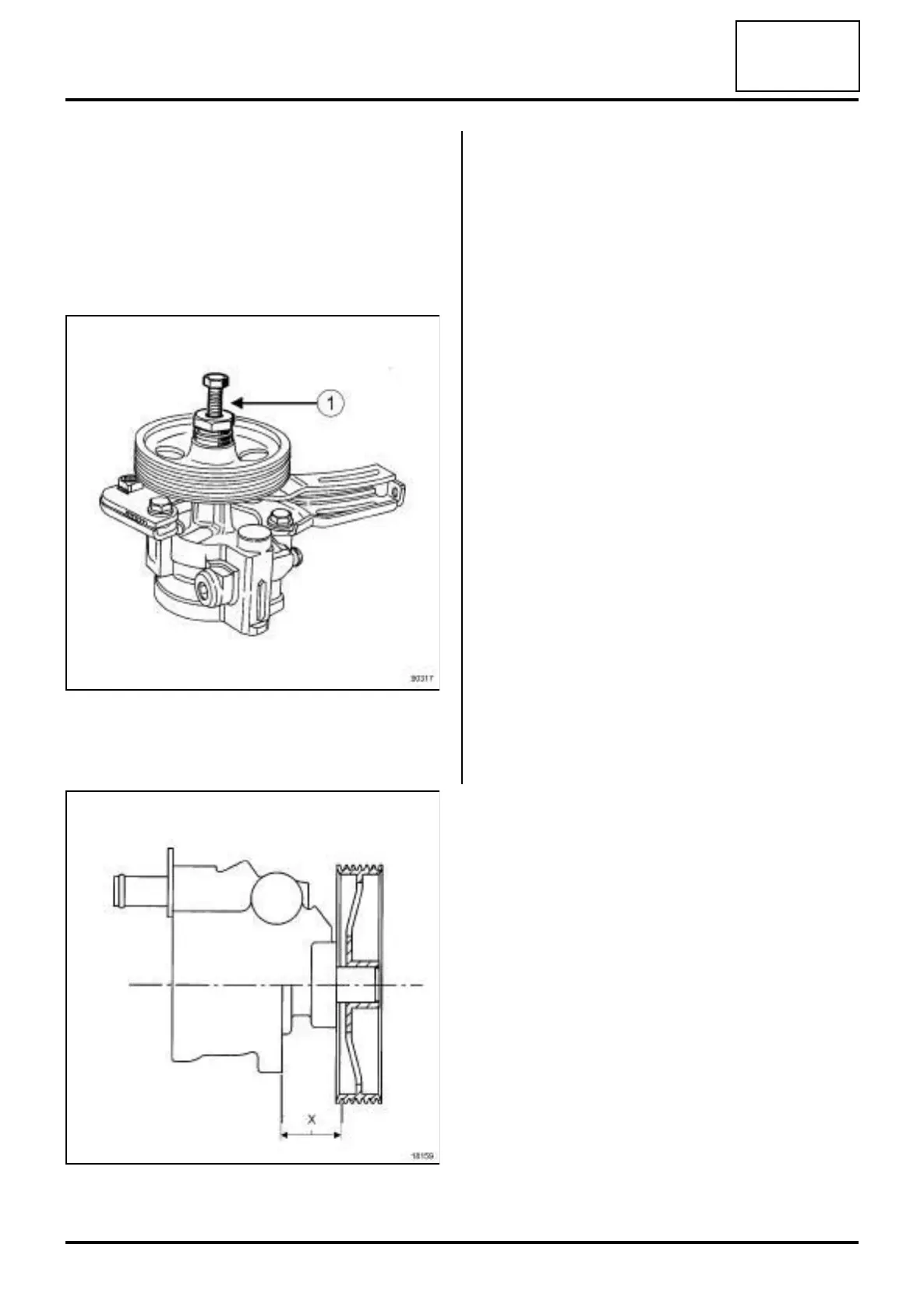

a Fit the pulley using the (1) until you reach the mea-
sured fitting dimension (lubricate the threading and
the pressure point on the pulley thoroughly).
a Follow the pulley fitting dimension measurement,
X=25.4 mm ±±
±±
0.4.
90317
18159
