12A-6
FUEL MIXTURE
Air filter unit: Removal - Refitting
K9K
12A
REMOVAL
I - REMOVAL PREPARATION OPERATION
a Remove the engine cover.

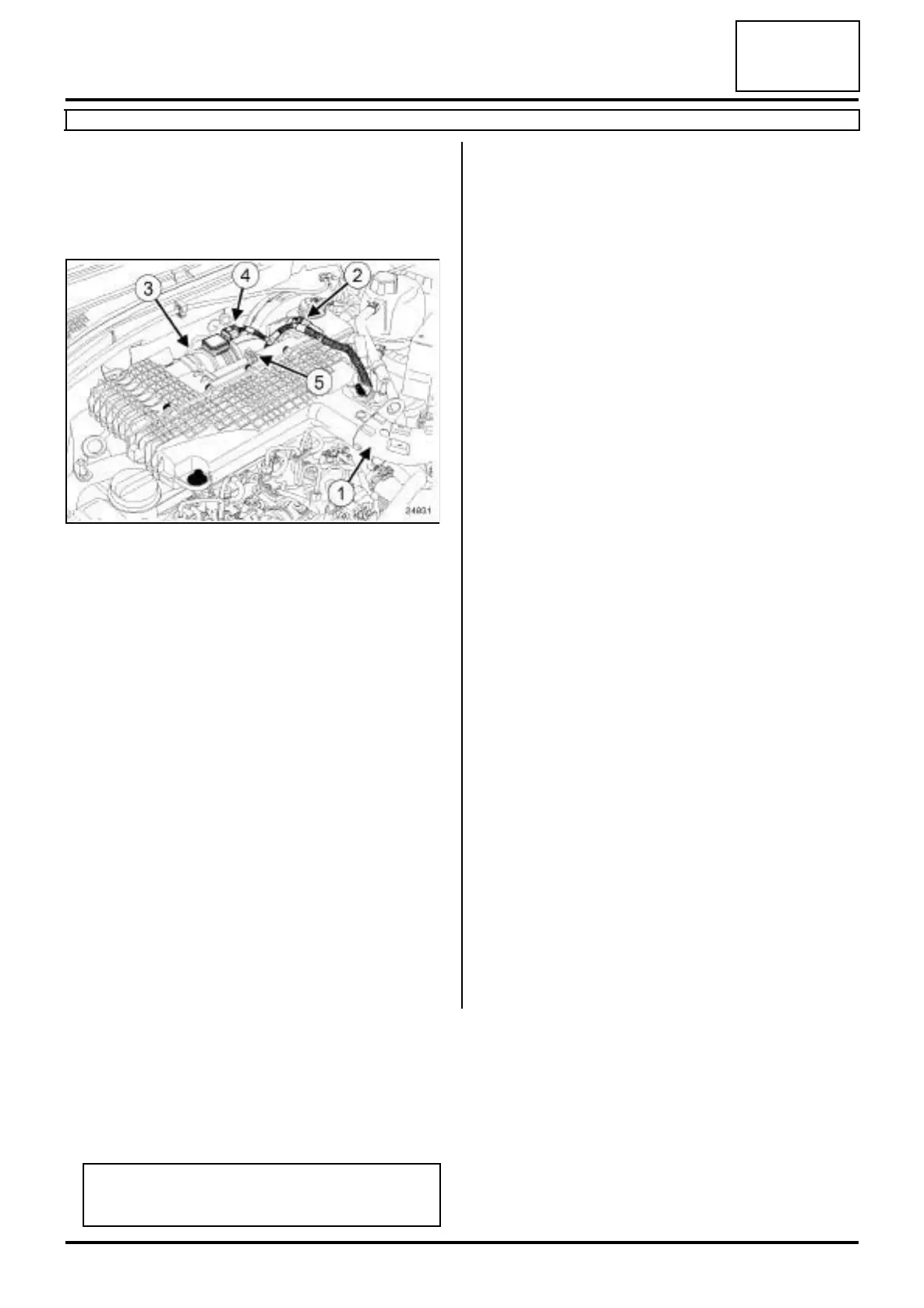

a Disconnect:
-the air intake sleeve (1) on the air filter unit,
-the air pressure sensor connector (2) from the air
filter unit.
a Disconnect the connector from the air flowmeter (4) .
a Disconnect the air inlet duct (5) from the air filter unit.
a Move aside the air filter unit wiring harness.
II - OPERATION FOR REMOVAL OF PART
CONCERNED
a Lift up the front section of the air filter unit.
a Slide the air filter unit to the left.
a Remove:
-the bolt of the turbocharger pressure sensor,
-the turbocharger pressure sensor on the air filter
unit.
a Remove the air filter unit.
REFITTING
I - REFITTING PREPARATION OPERATION
a Check that there are mounting studs for the air filter
unit on the EGR mounting and on the brackets.
II - REFITTING OPERATION FOR PART
CONCERNED
a Fit the air filter unit sideways against the EGR valve
mounting.
a Slide the air filter unit to the right.
a Refit:
- the turbocharger pressure sensor on the air filter
unit.
- the bolt of the turbocharger pressure sensor,
a Refit the air filter unit by lowering it vertically from the
injection end.
III - FINAL OPERATION
a Connect the air inlet duct to the air filter unit.
a Connect the air flowmeter connector.
a Connect:
- the turbocharging pressure sensor connector,
- the air intake sleeve on the air filter unit.
a Refit the engine cover.
24831
Note:
Replace the studs if necessary.
