Renault Duster 2007 - Front Brake Disc Protector: Removal - Refitting

31A-13
FRONT AXLE COMPONENTS
Front brake disc protector: Removal - Refitting
WHEEL DISC PROTECTOR
31A
REMOVAL
I - REMOVAL PREPARATION OPERATION
a Position the vehicle on a two-post lift (see Vehicle:
Towing and lifting) (02A, Lifting equipment).
a Remove:
-the front wheel (see 35A, Wheels and tyres,
Wheel: Removal - Refitting, page 35A-1) ,
-the front brake pads (see 31A, Front axle compo-
nents, Front brake pads: Removal - Refitting,
page 31A-3) ,
-the front brake disc (see 31A, Front axle compo-
nents, Front brake disc: Removal - Refitting,
page 31A-15) .

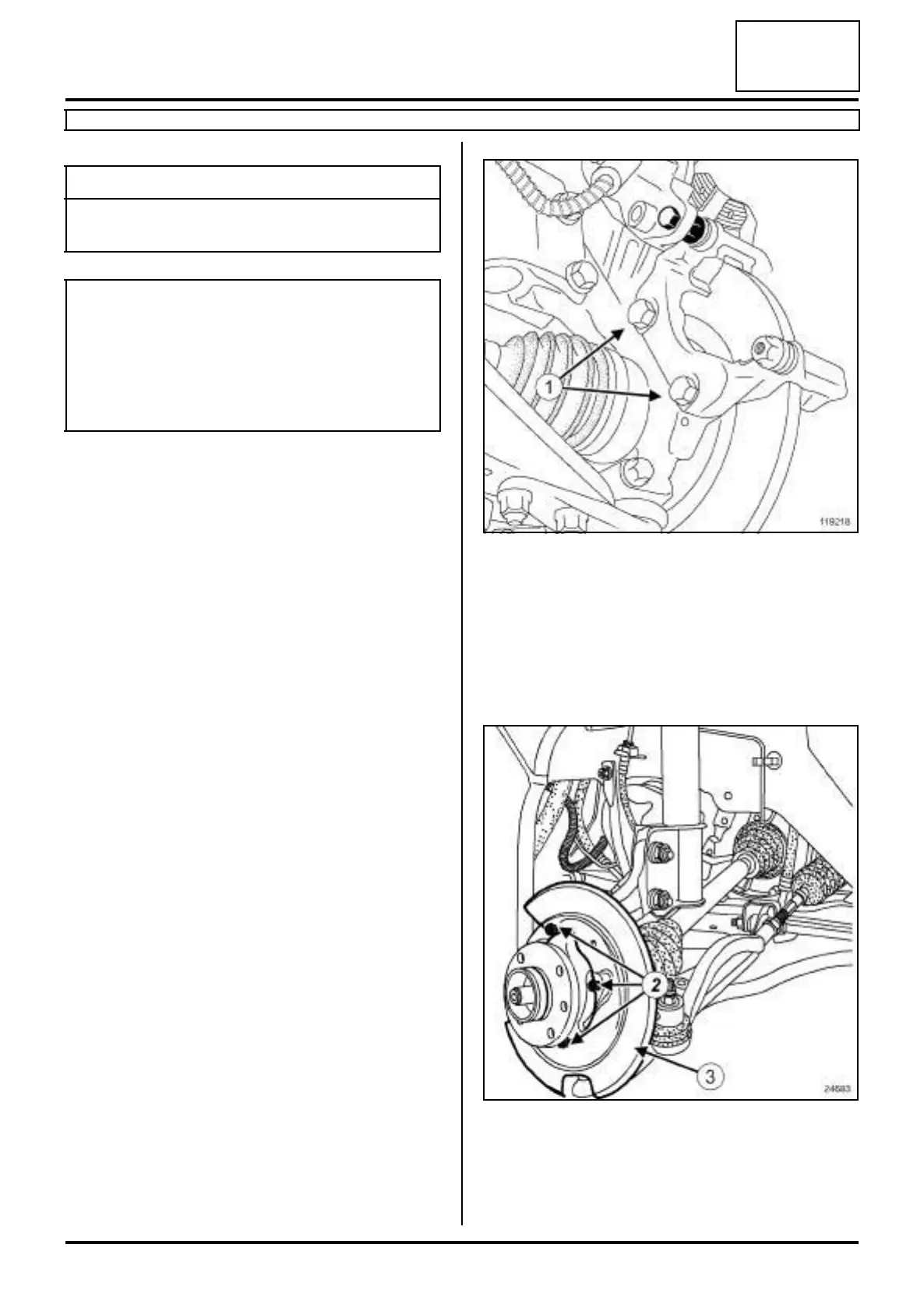

a Remove the calliper mounting bolts (1) .
a Attach the « calliper mounting - brake calliper » as-
sembly to the suspension spring.
II - REMOVAL OPERATION
a Remove:
- the front brake disc protector bolts (2) ,
- the front brake disc protector (3) .
Tightening torquesm
bolts of the front brake
disc protector
7 N.m
IMPORTANT
To avoid all risk of damage to the systems, apply
the safety and cleanliness instructions and opera-
tion recommendations before carrying out any
repair (see 31A, Front axle components, Front
axle components: Precautions for the repair,
page 31A-1) .
