35A-14
WHEELS AND TYRES
Wheel rim: Identification
35A
IDENTIFICATION
1 - Marking
There are two types of identification marking on the
wheel rims:
- engraved marking for steel wheel rims,
- cast marking for alloy wheel rims.
The marking gives the main dimensional specifications
of the wheel rim.
This marking may be:
- complete, for example 6 J 15 5 CH 36,
- simplified, for example 6 J 15.
There are 3 types of wheel rim edges (2) :
- those with two flat edges,
- those with two raised edges,
- those with one flat edge and one raised edge.
2 - Installation diameter for the wheel bolts
3 - Rim run-out
The maximum run-out is measured at the wheel rim
edge (7) .
4 - Out-of-roundness
The maximum out-of-round value is measured on the
tyre bead bearing surface.

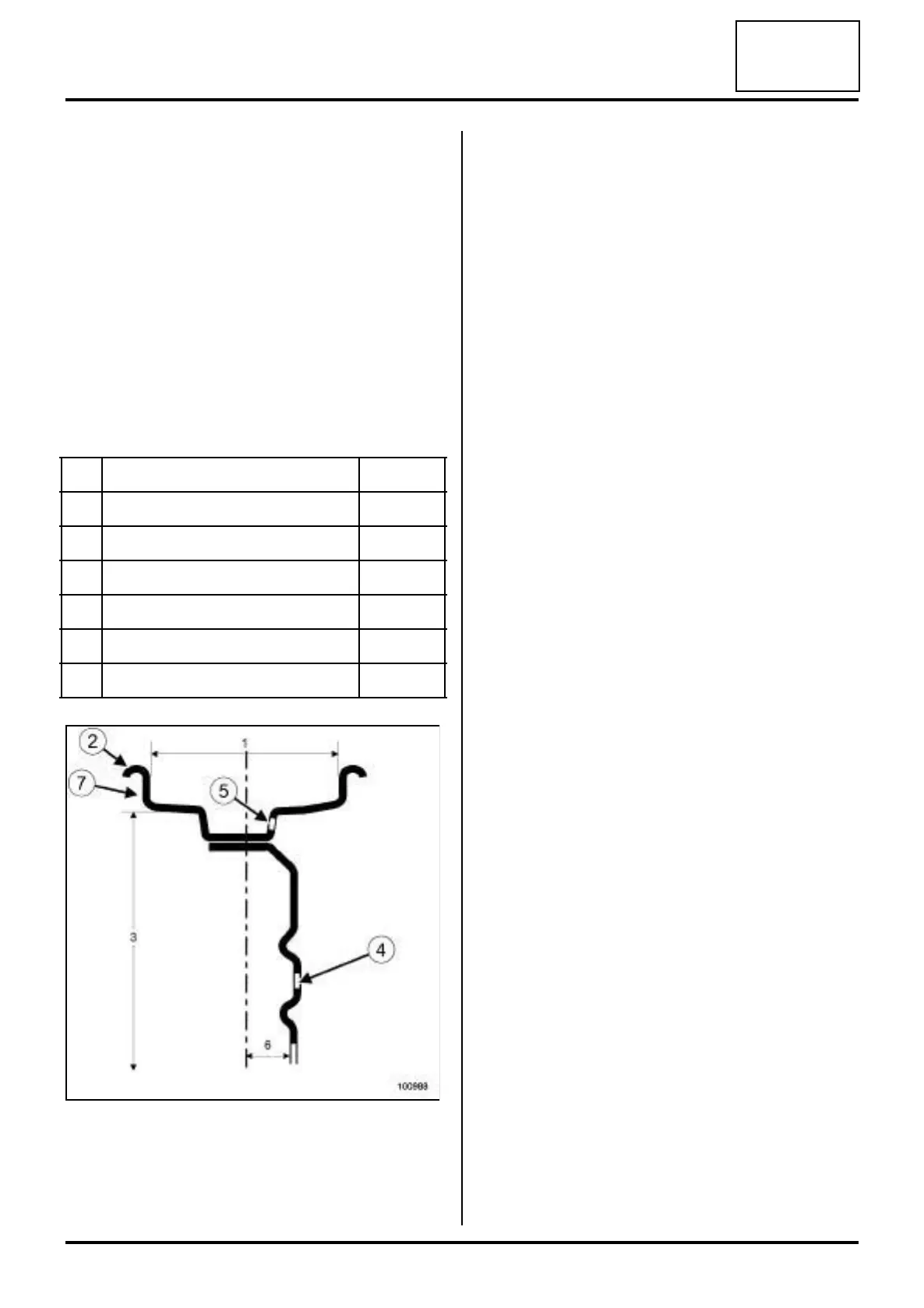

Wheel type 6 J 15
1 Width (in inches) 6
2 Rim edge profile J
3 Nominal diameter (in inches) 15
4 Number of holes 5
5 Anchorage profile of the tyre CH
6 Offset (in mm) 36
