Renault Duster 2007 - Passenger Compartment Rear

88A-34
WIRING HARNESS
Passenger compartment rear wiring: Removal - Refitting
88A
REMOVAL
I - REMOVAL PREPARATION OPERATION
a Disconnect the battery (see 80A, Battery, Battery:
Removal - Refitting, page 80A-2) (80A, Battery).
1 - Passenger compartment rear wiring section on
the floor
a Remove:
- the floor carpet (see Roof trim assembly: Explod-
ed view) (71A, Body internal trim),
- the B-pillar trim (see Interior body side trim as-
sembly: Exploded view) (71A, Body internal trim).
a Lift up the rear bench seat base.
2 - Passenger compartment rear wiring section
under the floor.
a Position the vehicle on a two-post lift (see Vehicle:
Towing and lifting) (02A, Lifting equipment).
a Move the fuel tank away (see Fuel tank: Removal -
Refitting) (19C, Tank).
3 - Passenger compartment rear wiring section on
the body
a Remove (see Interior body side trim assembly:
Exploded view) (71A, Body internal trim):
- the C-pillar trims,
- the parcel shelf side trims,

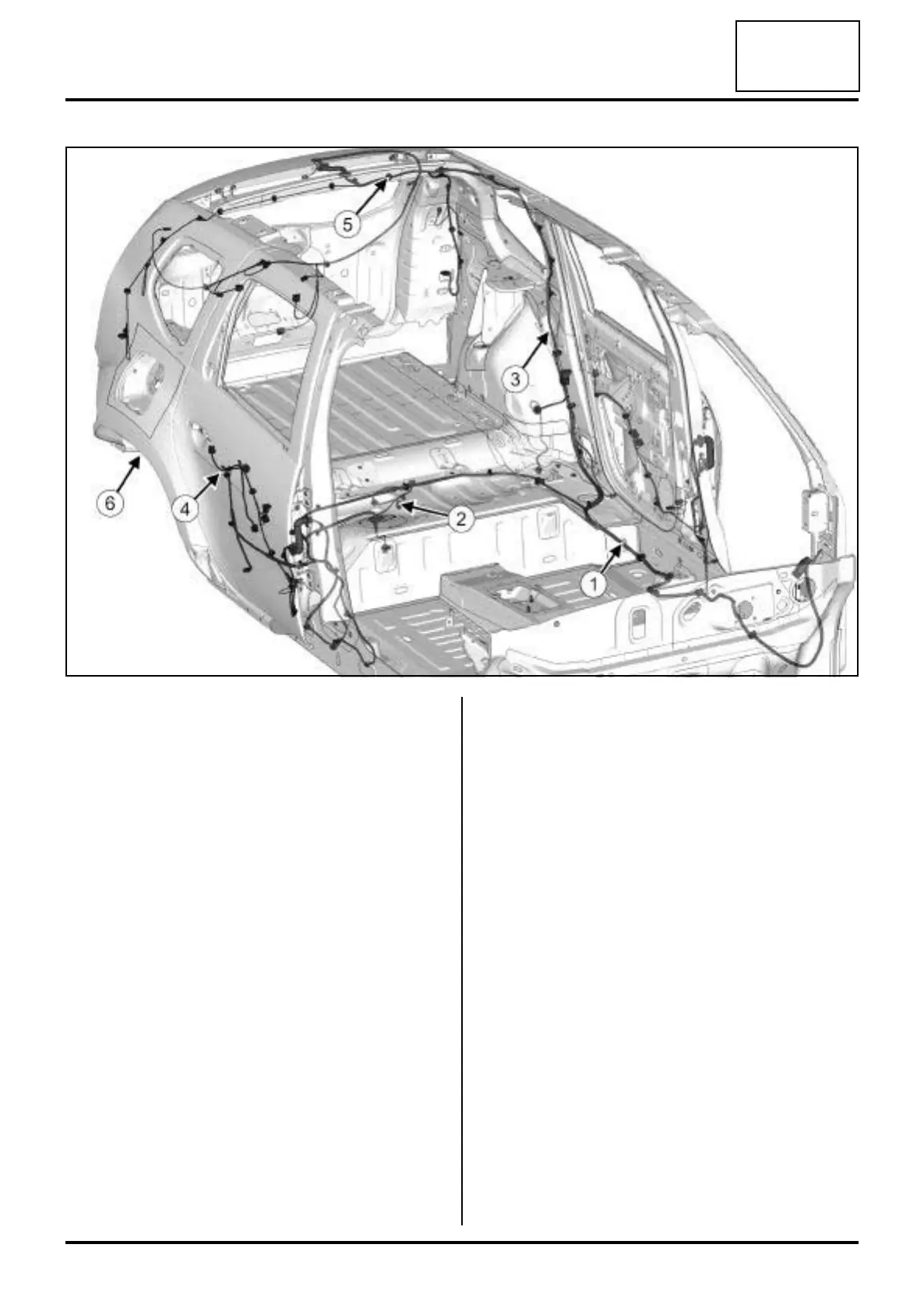

144400
(1) Passenger compartment rear
wiring section on the floor
(2) Passenger compartment rear
wiring section under the floor
(3) Passenger compartment rear
wiring section on the body
(4) Passenger compartment rear
wiring section in the rear doors
(5) Passenger compartment rear
wiring section in the tailgate
(6) Passenger compartment rear
wiring section in the wheel
arches
