61A-25
HEATING
Heating resistor relays: Removal - Refitting
61A
REMOVAL
I - REMOVAL PREPARATION OPERATION
a Unclip the soundproofing under the dashboard using
unclipping pliers.
II - REMOVAL OPERATION

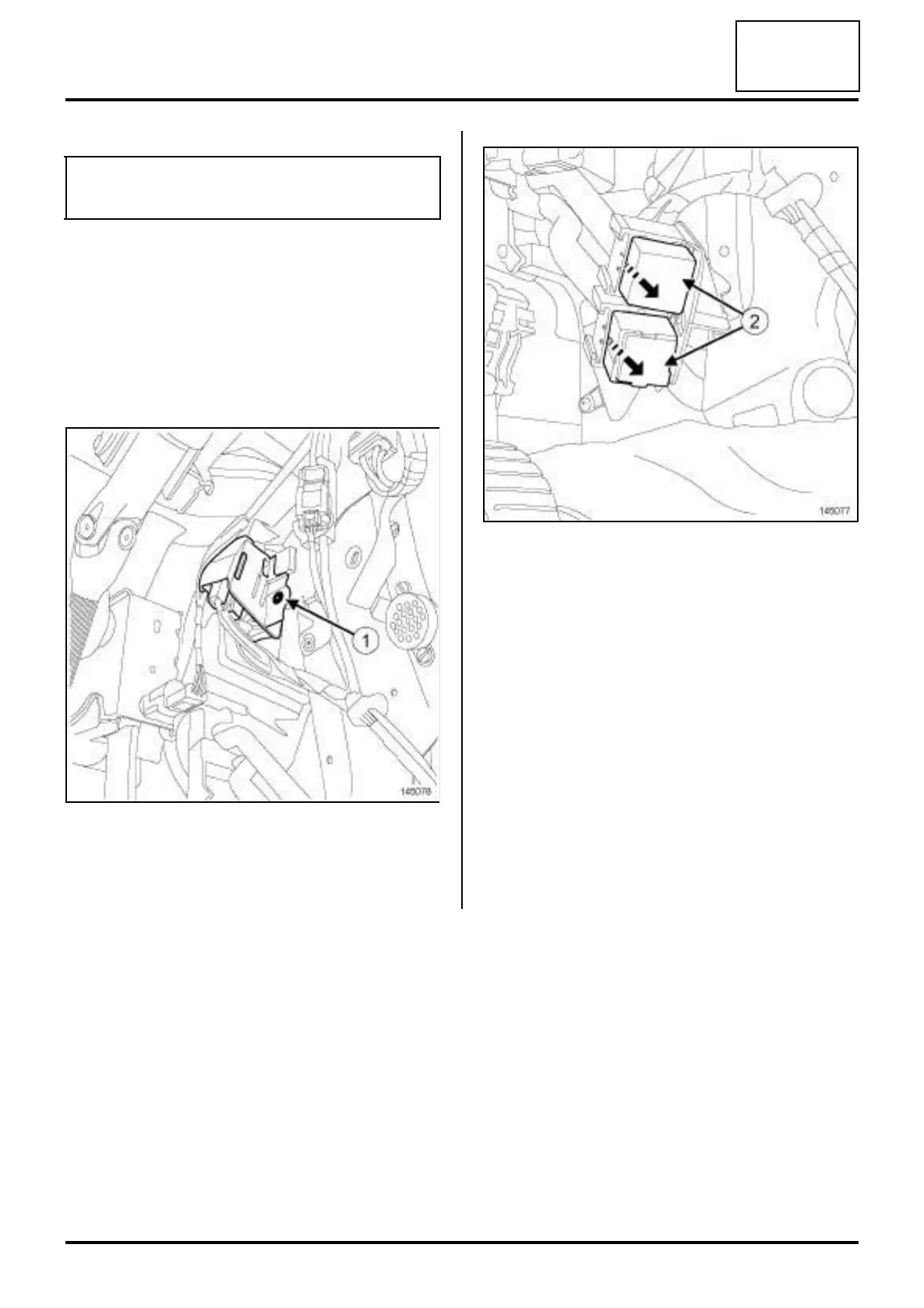

a Remove the bolt from the heating resistor relay unit
(1) .
a Remove the heating resistor relay unit support from
its support.
a Remove the heating resistor relays (2) in the direc-
tion of the arrows.
REFITTING
REFITTING OPERATION
a Proceed in the reverse order to removal.
Note:
Do not remove the dashboard.
145078
145077
