Renault Duster 2007 - Brake Pedal Switch: Removal - Refitting

37A-27
MECHANICAL COMPONENT CONTROLS
Brake pedal switch: Removal - Refitting
37A
REMOVAL
I - REMOVAL PREPARATION OPERATION
a Remove the dashboard lower trim (depending on
the equipment level).
II - OPERATION FOR REMOVAL OF PART
CONCERNED
a Disconnect the brake light switch connector.

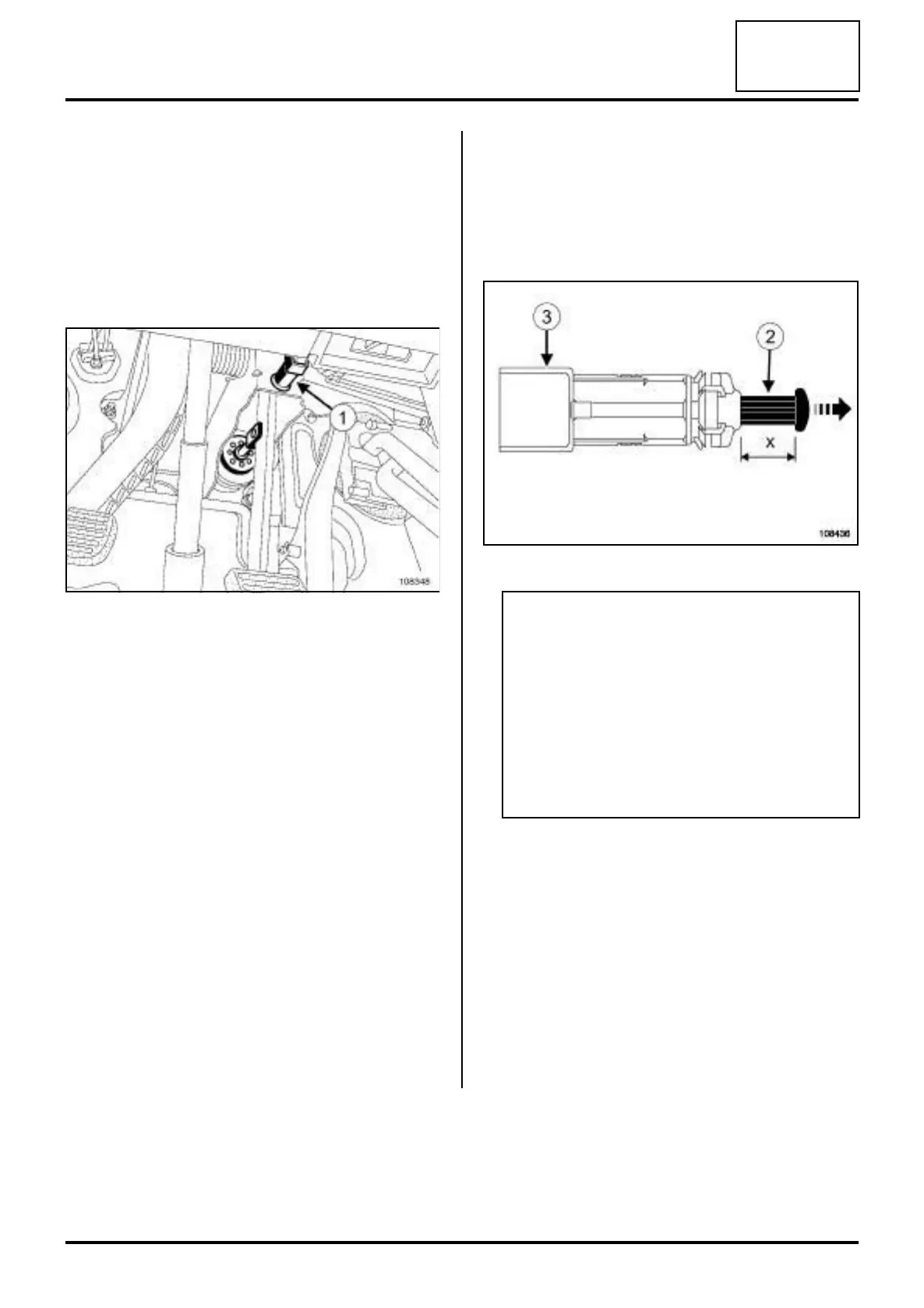

a Turn the brake light switch (1) a quarter of a turn
anti-clockwise.
a Remove the brake light switch.
REFITTING
I - REFITTING PREPARATION OPERATION
When removing and refitting or when replacing the
brake light switch
a
a Measure the dimension (x) of the piston (2) . If di-
mension (x) is less than 13 mm, carefully pull the
end of the piston to adjust dimension (x) to between
13 mm minimum and 14 mm maximum.
II - REFITTING OPERATION FOR PART
CONCERNED
a Depress the brake pedal by hand.
a Position the brake light switch on the pedal assem-
bly.
a Lock the brake light switch by turning it a quarter of
a turn clockwise.
108348
108436
WARNING
Handle the switch (3) with care.
Only operate the piston (2) to adjust the dimen-
sion (x) .
The switch must be replaced:
- if the piston (2) is separated from the switch (3)
,
- if more than three adjustments to dimension (x)
are necessary during the operation.
