12B-1
TURBOCHARGING
Turbocharger: Removal - Refitting
K9K
12B
REMOVAL
I - REMOVAL PREPARATION OPERATION
a Position the vehicle on a two-post lift (see Vehicle:
Towing and lifting) (02, Lifting equipment).
a Disconnect the battery (see Battery: Removal - Re-
fitting) (80A, Battery).
a Remove:
-the engine cover,
-the air filter unit (see 12A, Fuel mixture, Air filter
unit: Removal - Refitting, page 12A-6) .

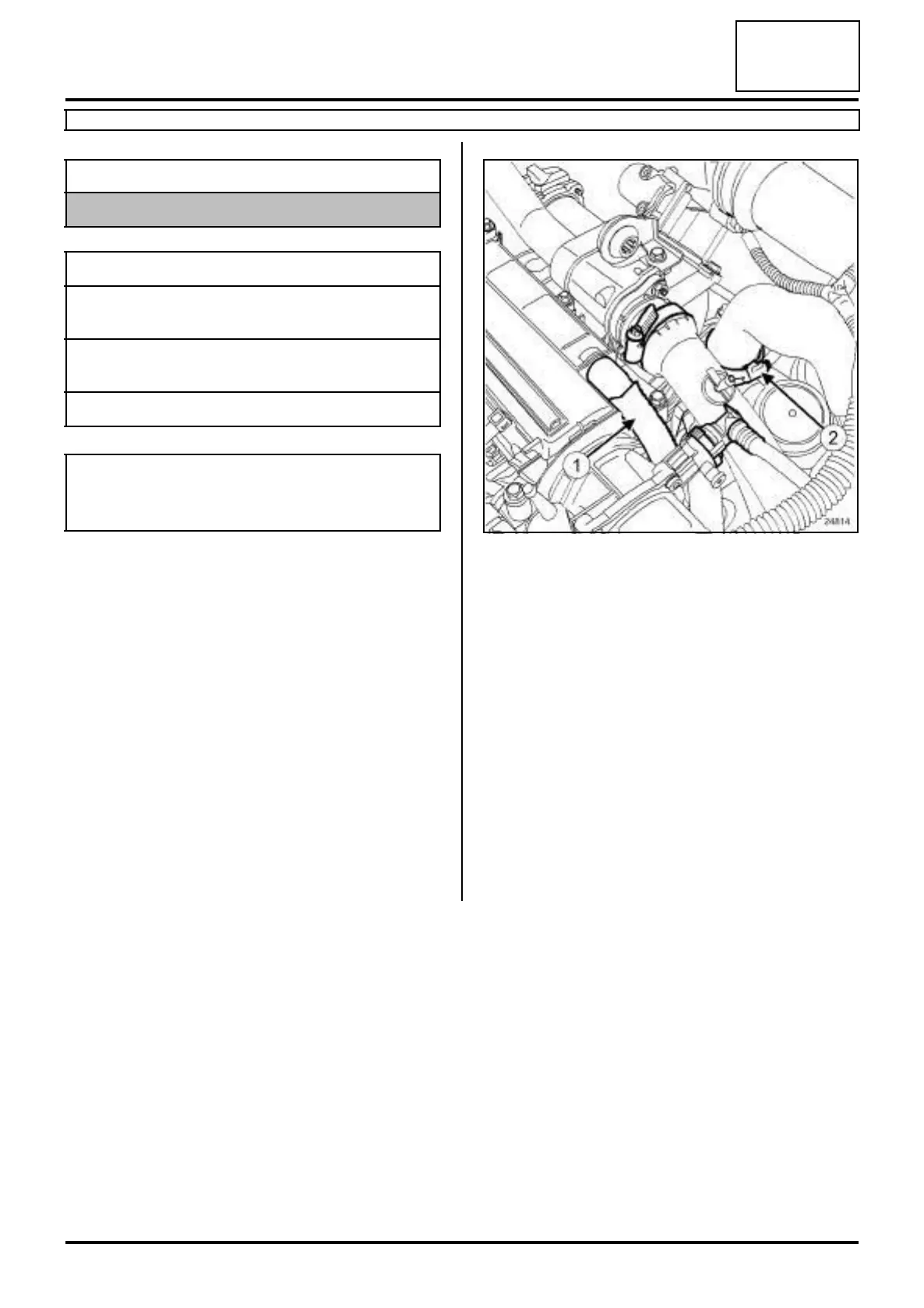

a Disconnect:
- the oil vapour rebreathing pipe (1) ,
- the duct between the turbocharger and the inter-
cooler at (2) .
a Remove:
- the exhaust gas recirculation solenoid valve (see
14A, Antipollution, Exhaust gas recirculation
solenoid valve: Removal - Refitting, page 14A-
4) ,
- the air duct between the turbocharger and the air
filter unit,
- the engine undertray,
-the catalytic converter (see 19B, Exhaust, Cata-
lytic converter: Removal - Refitting, page 19B-
10) .
Equipment required
Diagnostic tool
Tightening torquesm
new turbocharger studs
on the exhaust manifold
9 N.m
new turbocharger stud
on the turbocharger
9 N.m
turbocharger nuts 28 N.m
IMPORTANT
Wear leaktight gloves (Nitrile type) for this opera-
tion.
24814
