12A-21
FUEL MIXTURE
Exhaust manifold: Removal - Refitting
K4M
12A
III - FINAL OPERATION

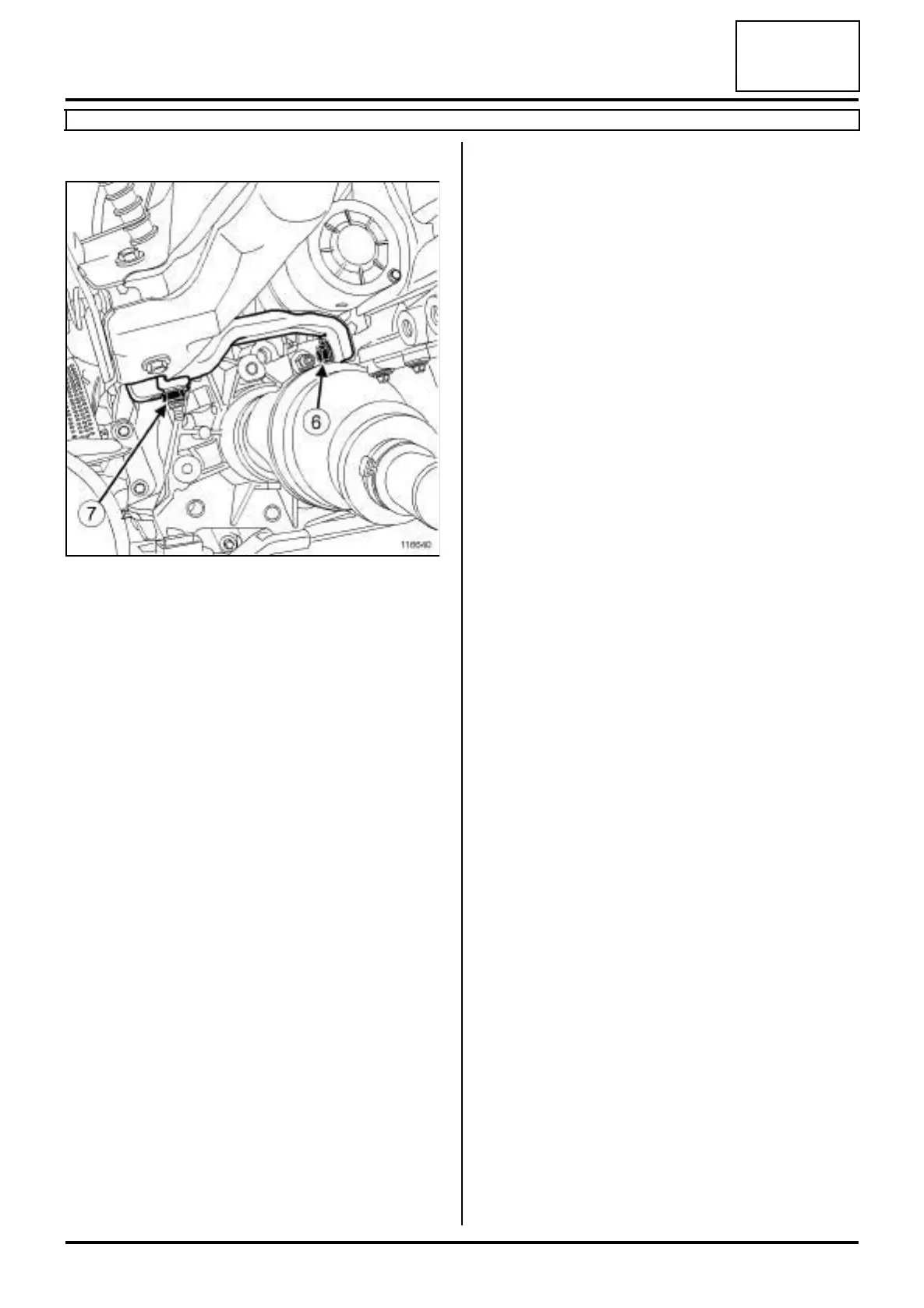

a Refit the stay between the exhaust manifold and the
cylinder block.
a Tighten to torque and in order:
-the bolts (6) mounting the stay on the cylinder
block (21 N.m),
-the nut (7) mounting the stay on the exhaust
manifold (21 N.m).
a Refit the exhaust manifold upper heat shield.
a Torque tighten the exhaust manifold upper heat
shield mounting bolts (12 N.m).
a Refit the upstream oxygen sensor using the.
a Torque tighten the upstream oxygen sensor (45
N.m).
a Connect the upstream oxygen sensor connector.
a Refit the exhaust bracket mounting bolts.
a Torque tighten the exhaust bracket mounting
bolts (21 N.m).
a Refit:
-the air filter unit (see 12A, Fuel mixture, Air filter
unit: Removal - Refitting, page 12A-6) ,
-the air resonator (see 12A, Fuel mixture, Air res-
onator: Removal - Refitting, page 12A-2) .
a Connect the battery (see Battery: Removal - Refit-
ting) (MR 388, 80A, Battery).
