37A-11
MECHANICAL COMPONENT CONTROLS

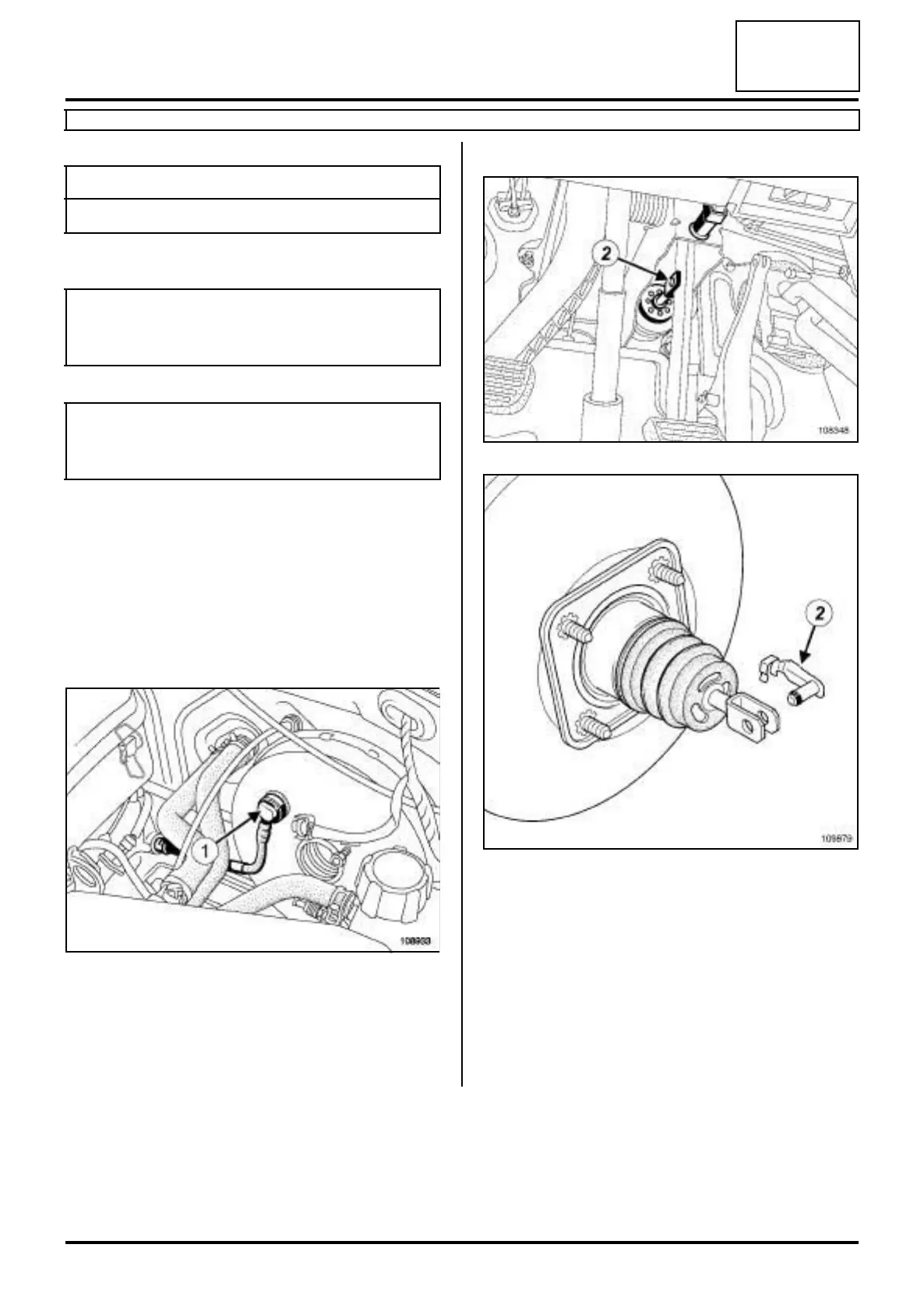

Brake servo: Removal - Refitting
LEFT-HAND DRIVE
37A
REMOVAL
I - REMOVAL PREPARATION OPERATION
a Position the vehicle on a two-post lift (see Vehicle:
Towing and lifting) (02A, Lifting equipment).
a Disconnect the battery (see Battery: Removal - Re-
fitting) (80A, Battery).
a Remove:
-the master cylinder (see 37A, Mechanical compo-
nent controls, Master cylinder: Removal - Refit-
ting, page 37A-2) ,
-the non-return valve (1) at the servo.
II - REMOVAL OPERATION
a Tilt the connecting piece upwards and remove the
safety clevis pin (2) between the brake servo push-
rod and the brake pedal on the passenger compart-
ment side.
Tightening torquesm
brake servo nuts 21 N.m
IMPORTANT
To avoid a loss of braking efficiency, do not bend
the brake servo pipe.
WARNING
Prepare for the flow of fluid, and protect the sur-
rounding components.
108933
108348
109879
