Renault Duster 2007 - Front Side Door Check Strap: Removal - Refitting

51A-3
SIDE OPENING ELEMENT MECHANISMS
Front side door check strap: Removal - Refitting
51A
REMOVAL
I - REMOVAL PREPARATION OPERATION
a Remove the front side door trim (see Front side
door trim: Removal - Refitting) (72A, Side opening
elements trim).
II - REMOVAL OPERATION

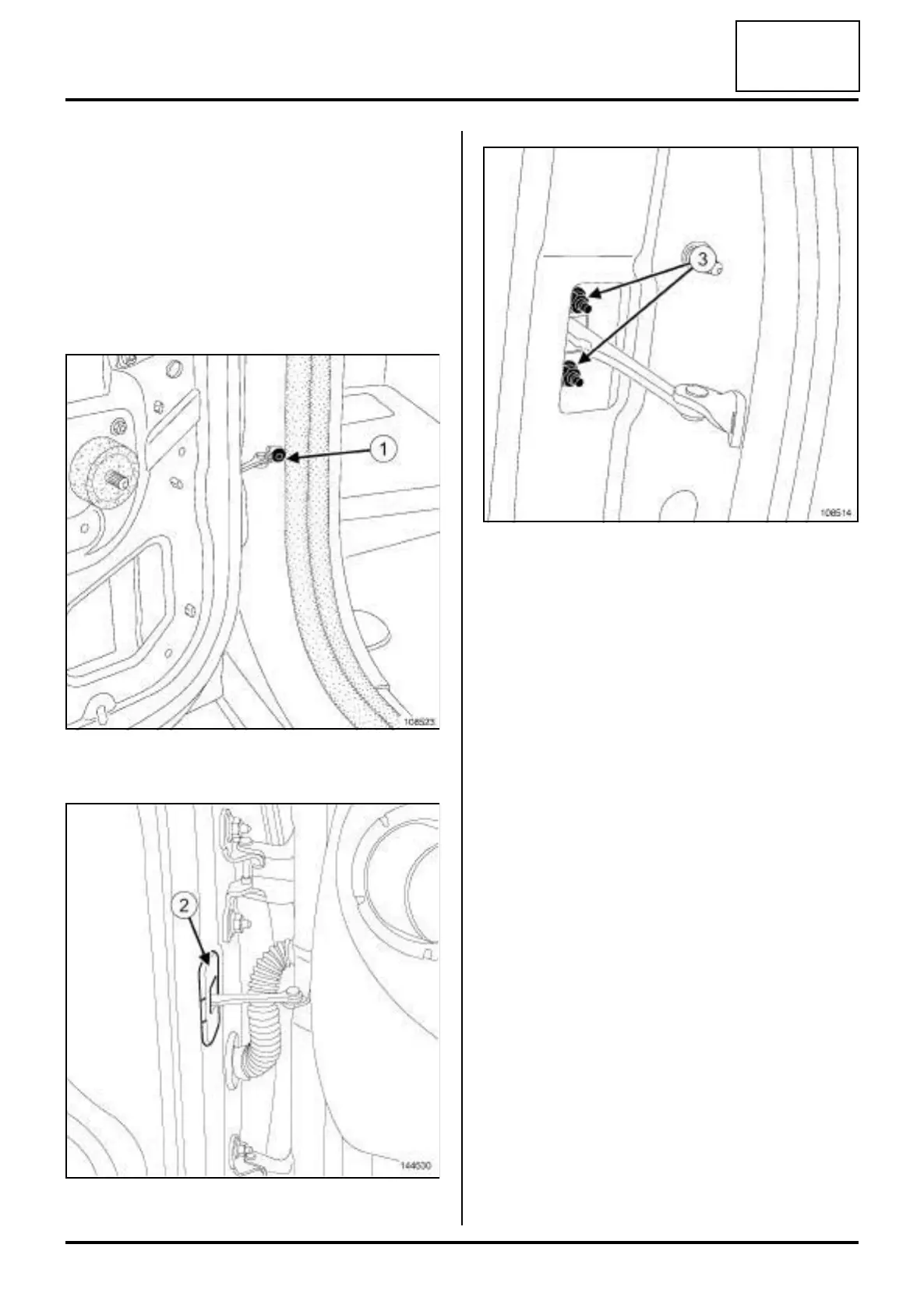

a Remove the front side door check strap bolt (1) .
a Remove the front side door check strap seal (2) .
a Remove the front side door check strap bolts (3) .
a Remove the front side door check strap from inside
the front side door box section.
REFITTING
a Proceed in the reverse order to removal.
108523
144630
108514
