80B-3
HEADLIGHTS
Headlight: Adjustment
80B
ADJUSTMENT
I - PREPARATION OPERATION FOR CHECK
a Place the vehicle on a level horizontal working area.
a Do not apply the parking brake.
a Check and inflate the tyres (see ) (35A, Wheels and
tyres).
a Open the bonnet.
a Check:
-that the luggage compartment is empty,
-that the headlights are clean.
a Position the headlight beam adjustment control at 0.
a Switch on the dipped headlights.
II - TEST OPERATION
a
a Place the headlight adjustment and checking
tool adjusted to -1% in front of the vehicle.
a Using the headlight adjustment and checking
tool, check the headlight beam adjustment.

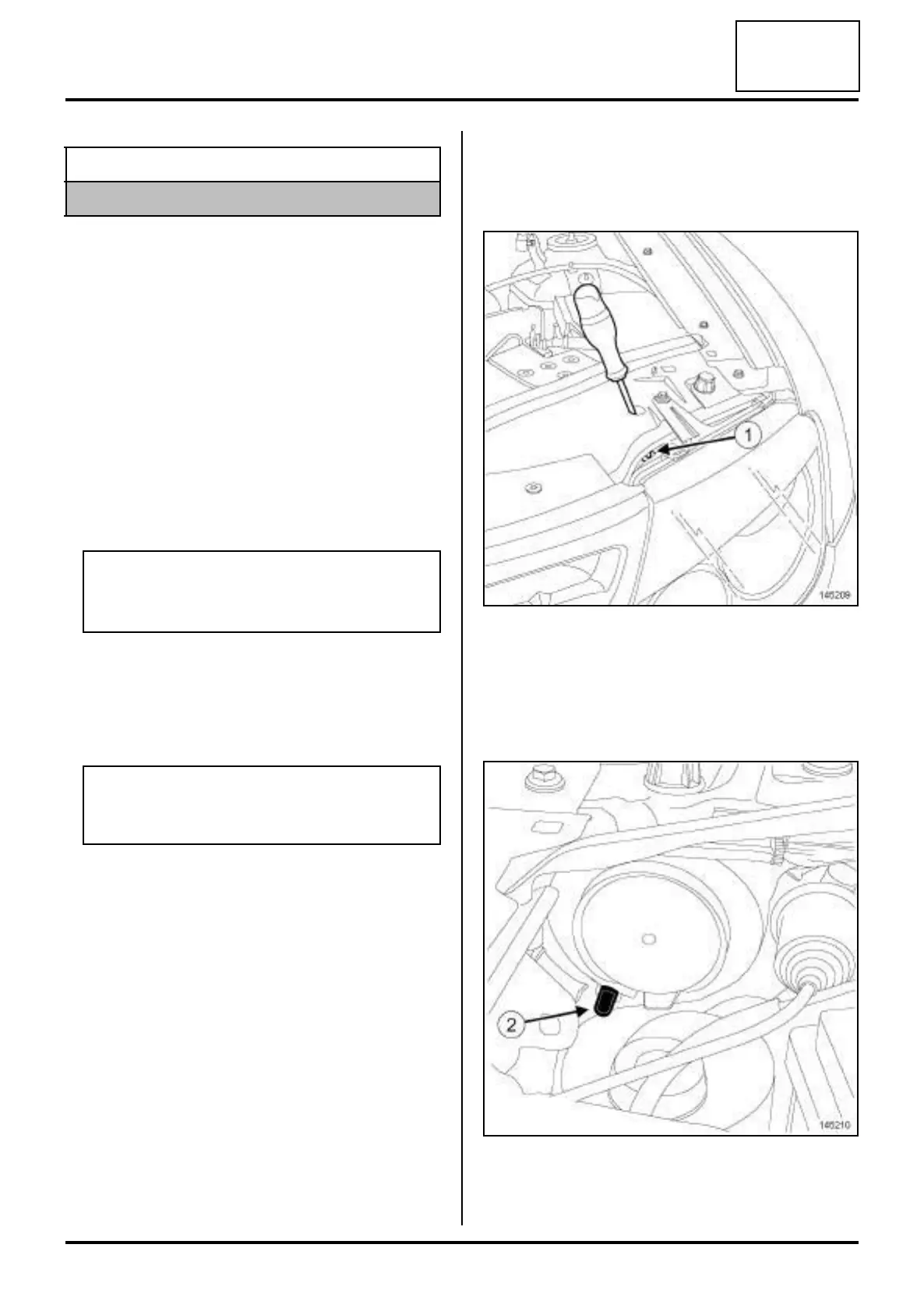

III - ADJUSTMENT OPERATION
1 - Beam adjustment
a Use the headlight adjustment and checking tool
to adjust the headlight beam by using the screw (1) .
2 - Horizontal adjustment
a Use the headlight adjustment and checking tool
to horizontally adjust the headlight by using the
screw (2) .
Equipment required
headlight adjustment and checking tool
Note:
Do not get into the vehicle throughout the opera-
tion.
WARNING
Consult the device's operating manual to avoid
incorrect use.
145209
145210
