80B-7
HEADLIGHTS
Front fog light: Removal - Refitting
80B
REMOVAL
I - REMOVAL PREPARATION OPERATION
a Position the vehicle on a two-post lift (see Vehicle:
Towing and lifting) (02A, Lifting equipment).
a Remove the front bumper (see Front bumper as-
sembly: Exploded view) (55A, Exterior protection).
II - REMOVAL OPERATION

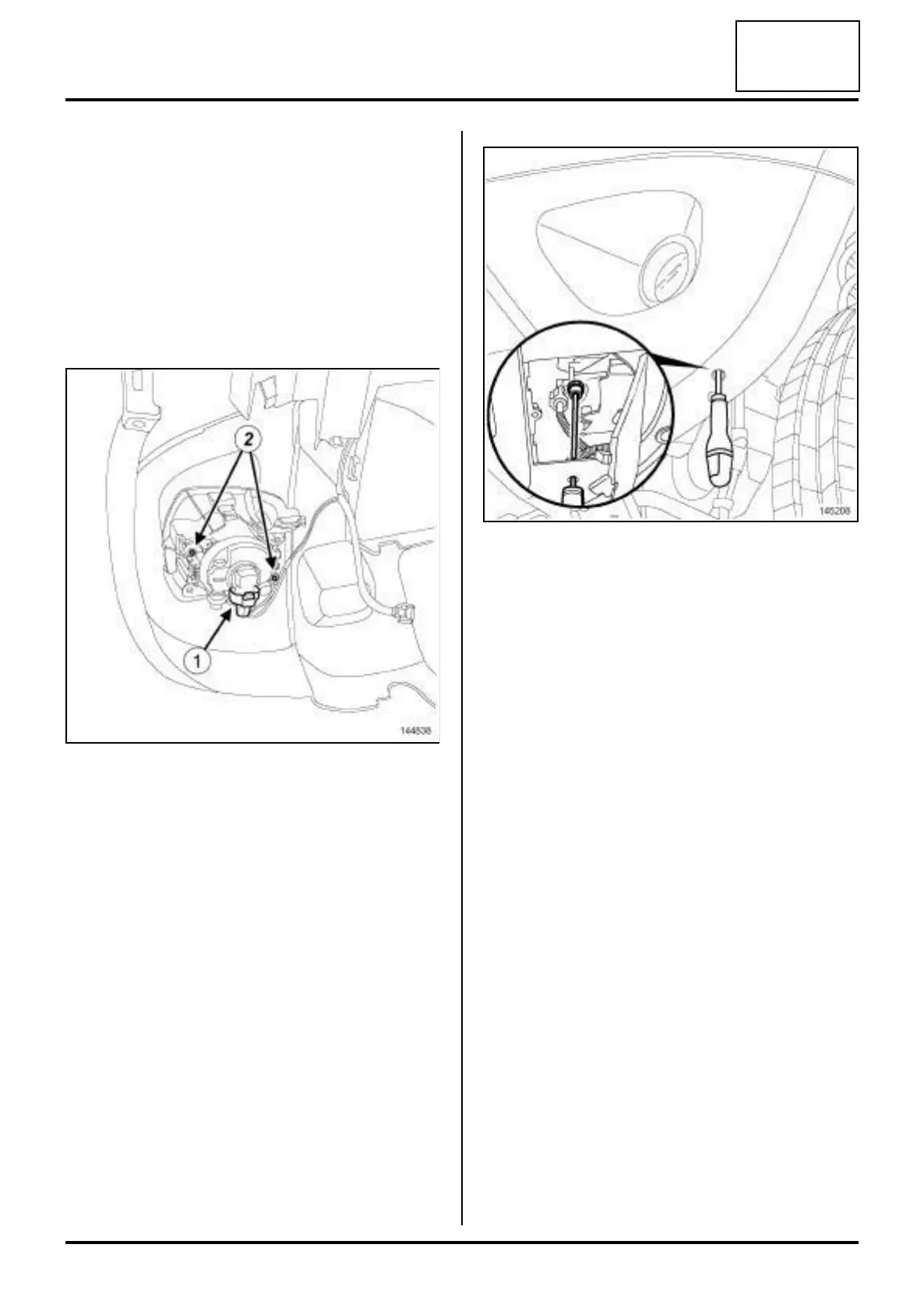

a Disconnect the front fog light connector (1) .
a Remove:
-the bolts (2) from the front fog light,
-the front fog light.
When replacing the front fog light
a Remove the front fog light bulb (see 80B, Head-
lights, Front fog light bulb: Removal - Refitting,
page 80B-6) .
REFITTING
REFITTING OPERATION
When replacing the front fog light
a Refit the front fog light bulb (see 80B, Headlights,
Front fog light bulb: Removal - Refitting, page
80B-6) .
a Proceed in the reverse order to removal.
a Adjust the front fog lights using a screwdriver.
144838
145208
