19C-8
TANK
Fuel level sensor module: Removal - Refitting
K4M or K9K
19C
REMOVAL
I - REMOVAL PREPARATION OPERATION
a Disconnect the battery (see Battery: Removal - Re-
fitting) (80A, Battery).
a Tilt the rear bench seat base.
II - REMOVAL OPERATION
a Remove the blanking cover from the inspection flap
using the tool (Car. 1363).
a Disconnect:
- the connector (1) ,
- the unions (2) .
Special tooling required
Car. 1363 Set of trim removal levers.
Mot. 1397 Universal spanner for remov-
ing fuel gauge nuts.
IMPORTANT
During this operation, be sure to:
- refrain from smoking or bringing red hot objects
close to the working area,
- be careful of fuel splashes when disconnecting the
union.
IMPORTANT
Wear goggles with side protectors for this opera-
tion.
IMPORTANT
Wear leaktight gloves (Nitrile type) for this opera-
tion.
WARNING
To avoid any corrosion or damage, protect the
areas on which fuel is likely to run.
Note:
Make provisions for the flow of fuel from the fuel
supply and return pipes.

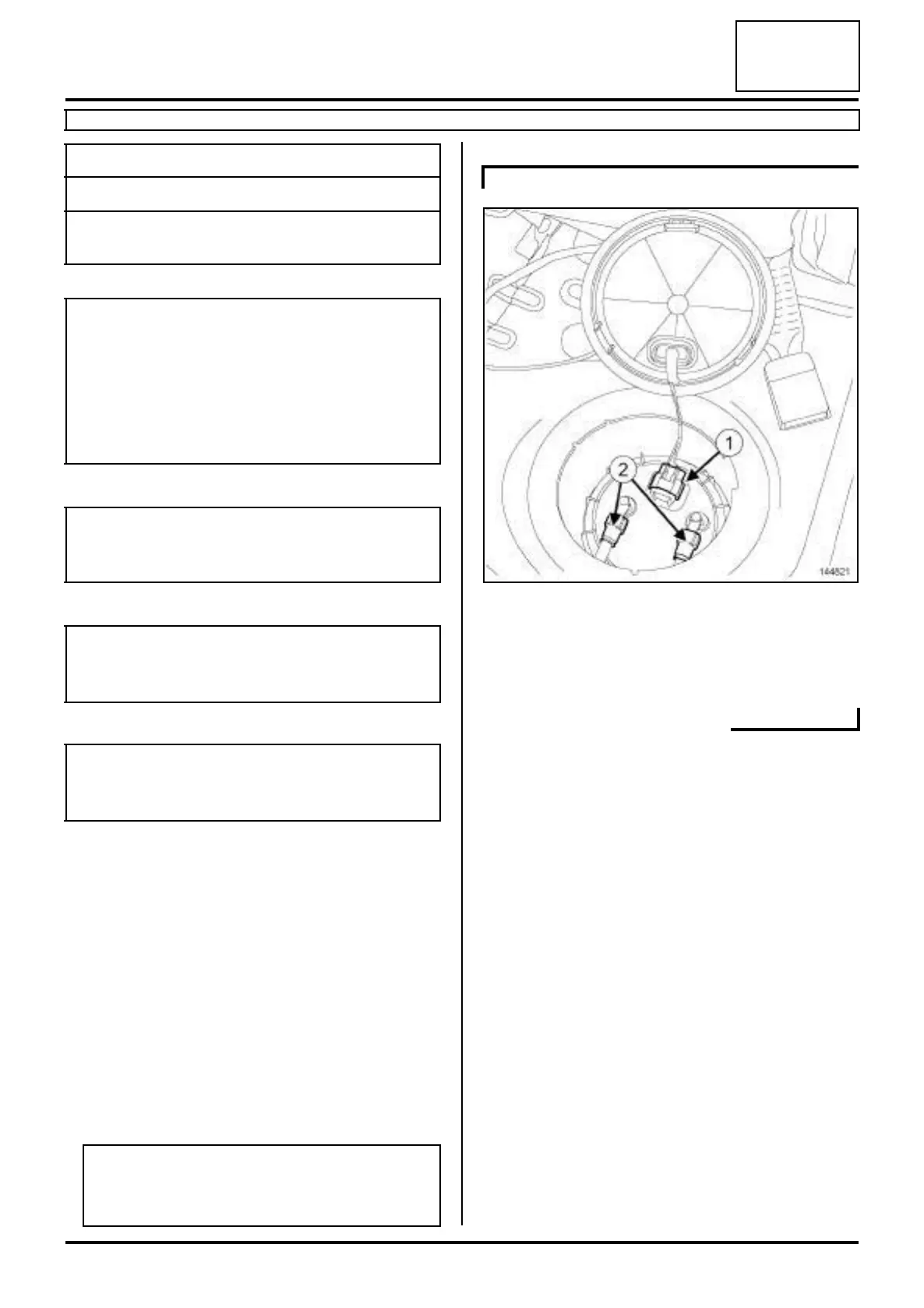

K9K
144821
