Renault Duster 2007 - Rear Air Distribution Duct: Removal - Refitting

61A-10
HEATING
Rear air distribution duct: Removal - Refitting
REAR SEATS AIR DUCT
61A
REMOVAL
I - REMOVAL PREPARATION OPERATION
a Remove:
-the central console (see Centre console: Remov-
al - Refitting) (57A, Interior equipment),
-the front seats (see Front seat assembly: Ex-
ploded view) (75A, Front seat frames and mecha-
nisms),
-the floor carpet partially (see Floor trim assembly:
Exploded view) (71A, Body internal trim).
II - REMOVAL OPERATION
1 - Rear left-hand air distribution duct

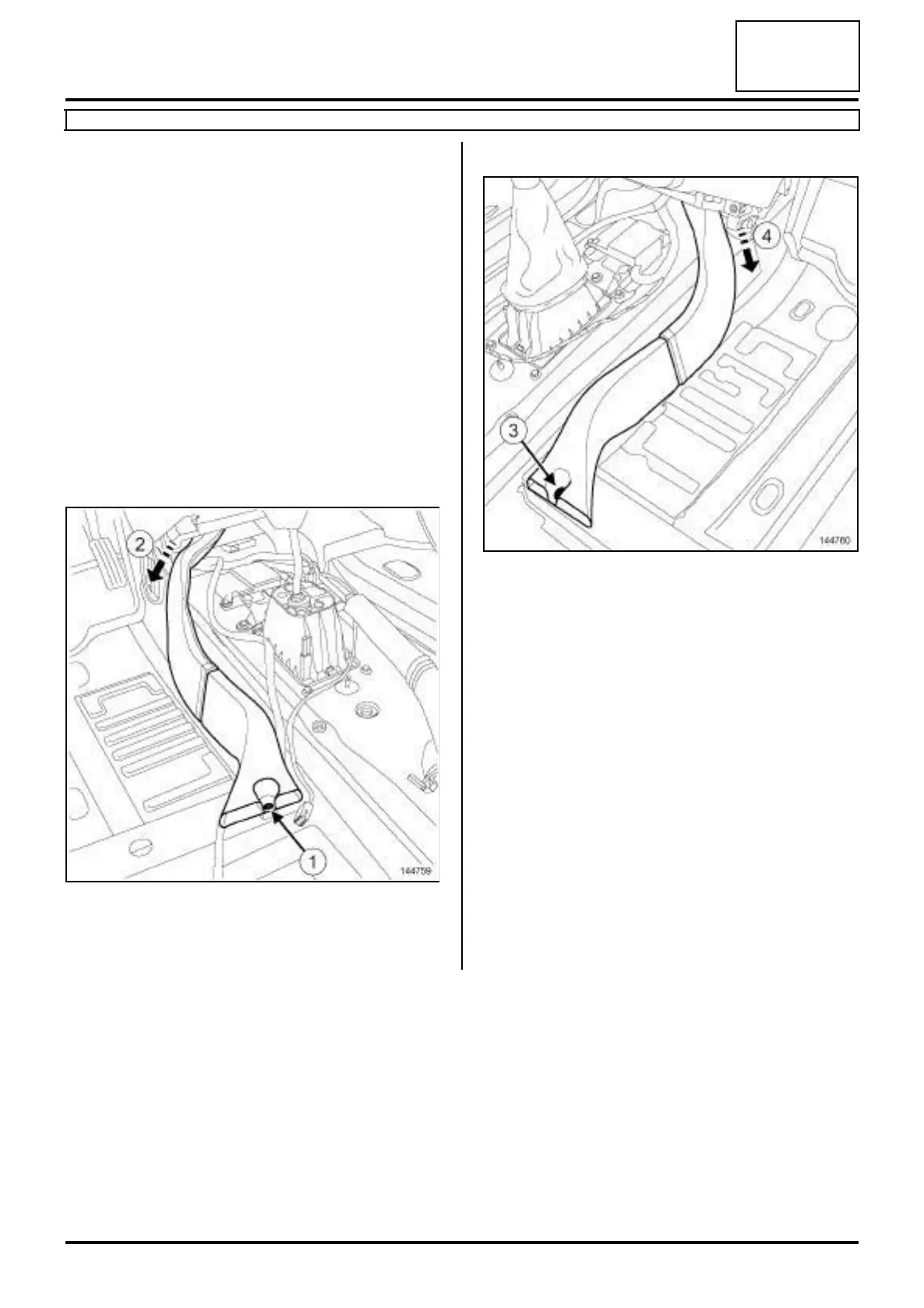

a Remove the clip (1) using an unclipping tool.
a Remove the rear left-hand air distribution duct at (2)
.
2 - Rear right-hand air distribution duct
a Remove the clip (3) using an unclipping tool.
a Remove the rear right-hand air distribution duct at
(4) .
REFITTING
REFITTING OPERATION
a Proceed in the reverse order to removal.
