16A-8
STARTING - CHARGING
Starter: Removal - Refitting
K9K
16A
REMOVAL
I - REMOVAL PREPARATION OPERATION
a Disconnect the battery (see Battery: Removal - Re-
fitting) (80A, Battery).

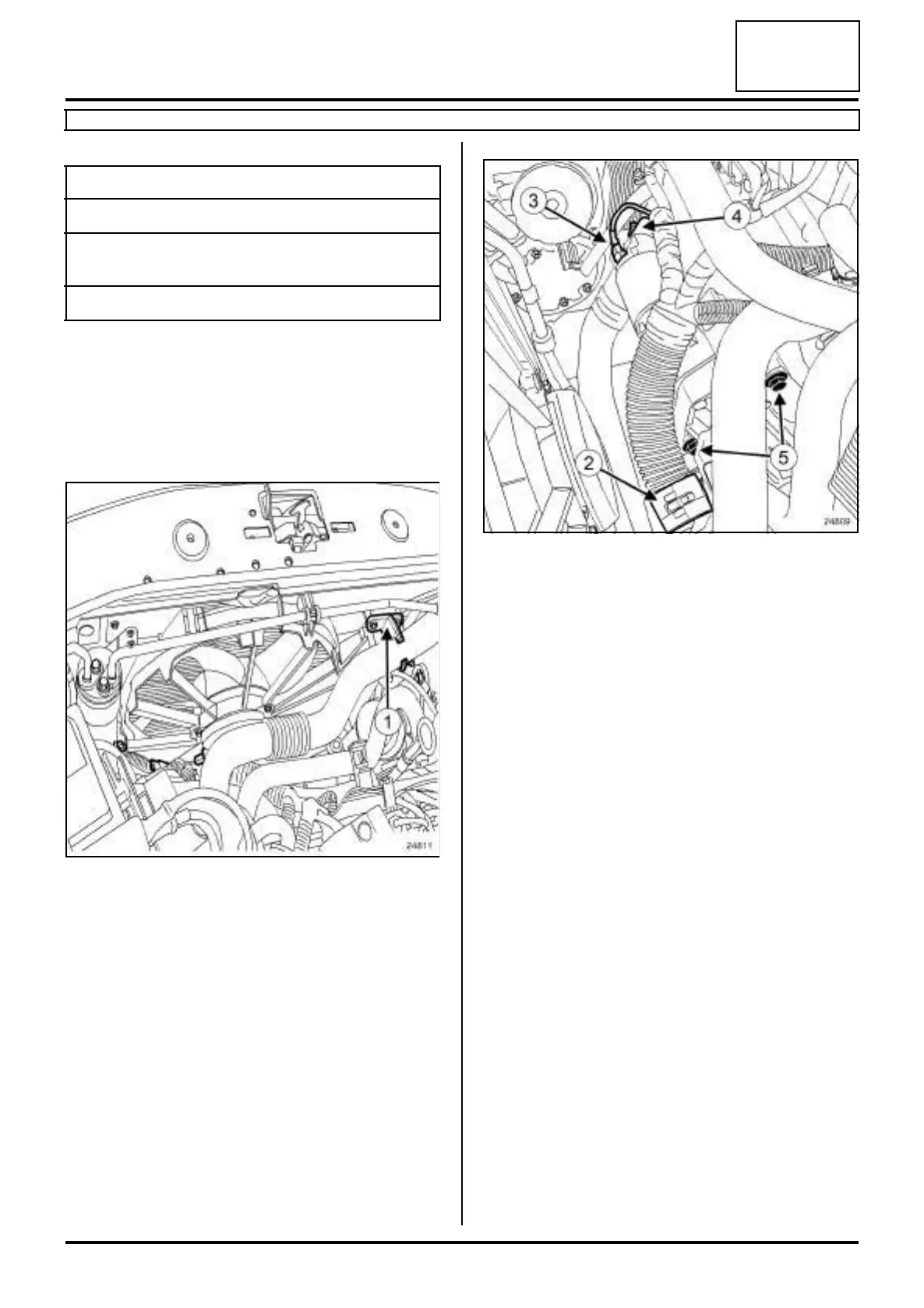

a Unclip the intercooler duct on the fan assembly at (1)
.
a Move aside the intercooler duct.
a Unclip the engine wiring at (2) .
II - REMOVAL OPERATION
a Remove:
- the nut (3) on the starter solenoid lead,
- the nut (4) on the starter lead,
- the starter leads,
- the starter bolts (5) ,
- the starter.
REFITTING
I - REFITTING PREPARATION OPERATION
a Check that the starter centring dowel is in place.
II - REFITTING OPERATION
a Refit the starter.
a Torque tighten the starter bolts (44 N.m).
a Refit the starter leads.
a Torque tighten:
- the nut on the starter solenoid lead (5 N.m),
- the starter lead nut (8 N.m).
Tightening torquesm
starter bolts 44 N.m
nut on the starter sole-
noid lead
5 N.m
starter lead nut 8 N.m
24811
24809
