37A-16
MECHANICAL COMPONENT CONTROLS
Pedal yoke: Removal - Refitting
LEFT-HAND DRIVE
37A
REMOVAL
I - REMOVAL PREPARATION OPERATION
a Remove the brake pedal switch (see 37A, Mechan-
ical component controls, Brake pedal switch:
Removal - Refitting, page 37A-27) .

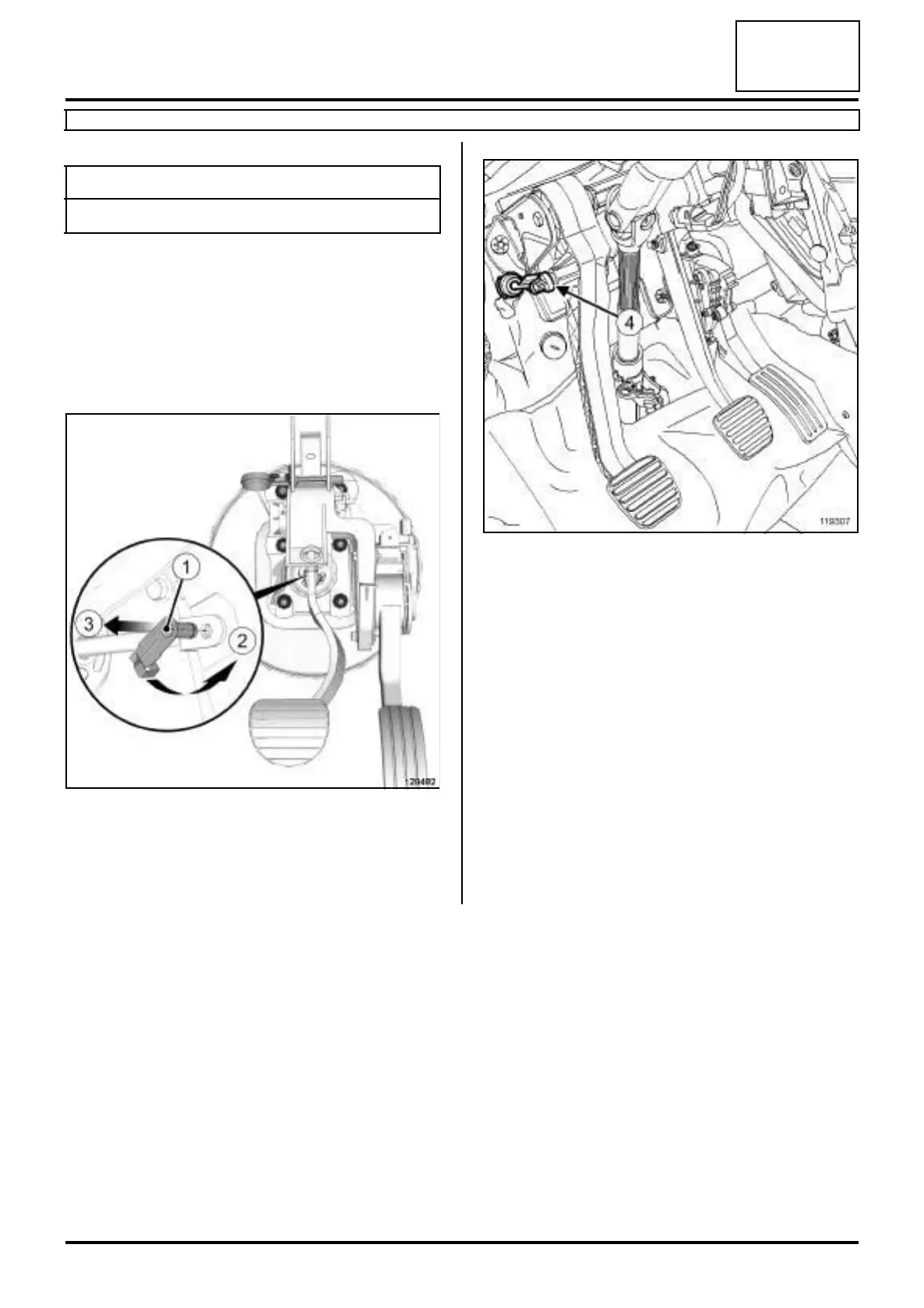

a Remove the connecting shaft (1) between the brake
pedal and the brake servo pushrod:
-unlock the shaft in accordance with (2) ,
-extract the shaft in accordance with (3) .
a Uncouple the master cylinder ball joint (4) from the
clutch pedal.
a Remove the two retaining clips from the pedal insu-
lation and the insulating foam.
a Remove the pedal insulation (if fitted to the vehicle).
a Gently move aside the insulating foam.
a Disconnect the steering column and the steering box
(see 36A, Steering assembly, Steering column:
Removal - Refitting, page 36A-7) .
Tightening torquesm
pedal yoke nuts 21 N.m
128482
119307
