55A-9
EXTERIOR PROTECTION
Rear bumper: Removal - Refitting
55A
Location and specifications (tightening torques, parts
always to be replaced, etc.) (see 55A, Exterior pro-
tection, Rear bumper assembly: Exploded view,
page 55A-3) .
REMOVAL
I - REMOVAL PREPARATION OPERATION
a Position the vehicle on a two-post lift (see Vehicle:
Towing and lifting) (02A, Lifting equipment).
a Remove the rear wing lights (see Rear light assem-
bly: Exploded view) (81A, Rear lighting).
II - REMOVAL OPERATION
a Remove (see 55A, Exterior protection, Rear bum-
per assembly: Exploded view, page 55A-3) :
-the rear wheel arch liner bolts on the rear bumper
on each side of the vehicle,
-the lower bolts of the rear bumper,
-the upper bolts of the rear bumper.

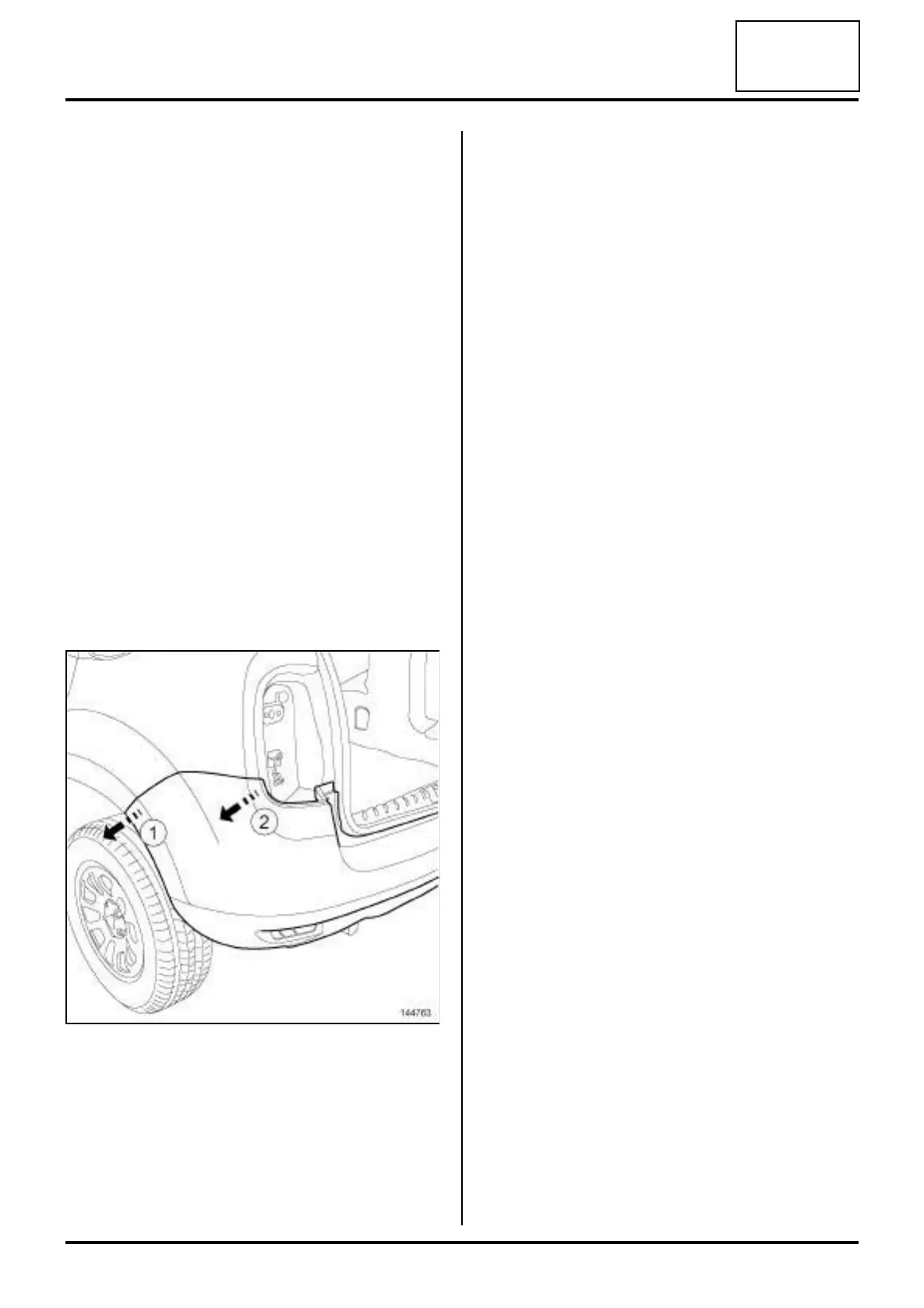

a Unclip the side sections of the rear bumper at (1)
and (2) .
a Remove the rear bumper (this operation requires
two people).
REFITTING
a Proceed in the reverse order to removal.
