55A-8
EXTERIOR PROTECTION
Front bumper: Removal - Refitting
55A
Location and specifications (tightening torques, parts
always to be replaced, etc.) (see 55A, Exterior pro-
tection, Front bumper assembly: Exploded view,
page 55A-1) and (see 55A, Exterior protection, Exte-
rior body front trim assembly: Exploded view, page
55A-5) .
REMOVAL
I - REMOVAL PREPARATION OPERATION
a Position the vehicle on a two-post lift (see Vehicle:
Towing and lifting) (02A, Lifting equipment).
II - REMOVAL OPERATION
a Remove (see 55A, Exterior protection, Front
bumper assembly: Exploded view, page 55A-1) :
-the front wheel arch liner bolts on the front bumper
on each side of the vehicle,
-the lower bolts of the front bumper.
a Remove the upper bolts of the front bumper (see
55A, Exterior protection, Exterior body front trim
assembly: Exploded view, page 55A-5) .

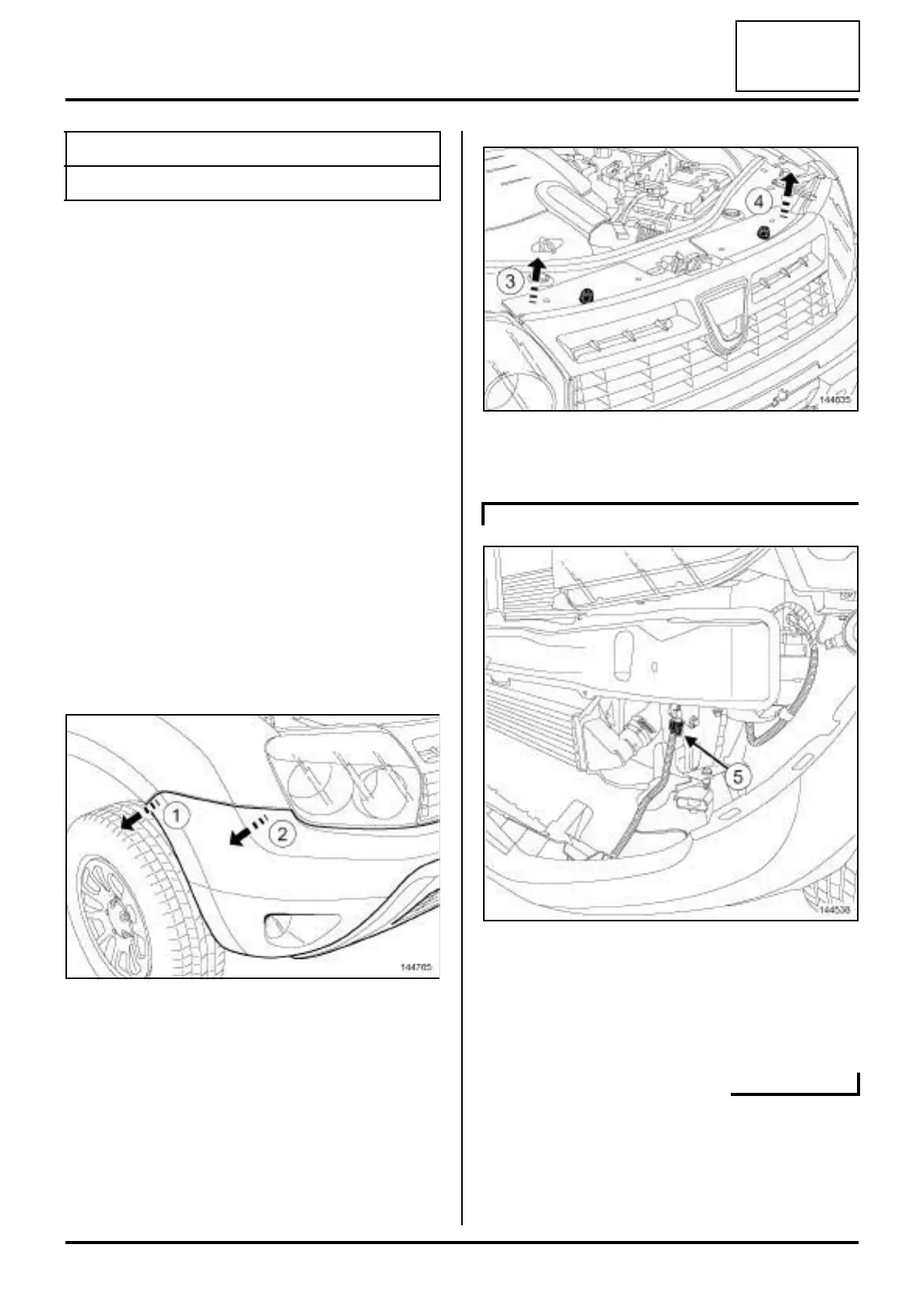

a Unclip the side sections of the front bumper at (1)
and (2) using the tool (Car. 1363).
a Slightly raise the upper section of the front bumper
at (3) and (4) (this operation requires two people).
a Partially remove the front bumper (this operation re-
quires two people).
a Unclip the fog lights connector (5) .
a Disconnect the fog lights connector.
a Remove the front bumper (this operation requires
two people).
REFITTING
a Proceed in the reverse order to removal.
Special tooling required
Car. 1363 Set of trim removal levers.
144765
144635
FOG LIGHTS
144538
