51A-8
SIDE OPENING ELEMENT MECHANISMS
Exterior door handle: Removal - Refitting
51A
REMOVAL
I - REMOVAL PREPARATION OPERATION
a Remove the front door trim (see Front side door
trim: Removal - Refitting) (72A, Side opening ele-
ments trim) or the rear side door trim (see Rear side
door trim: Removal - Refitting) (72A, Side opening
elements trim).
II - REMOVAL OPERATION

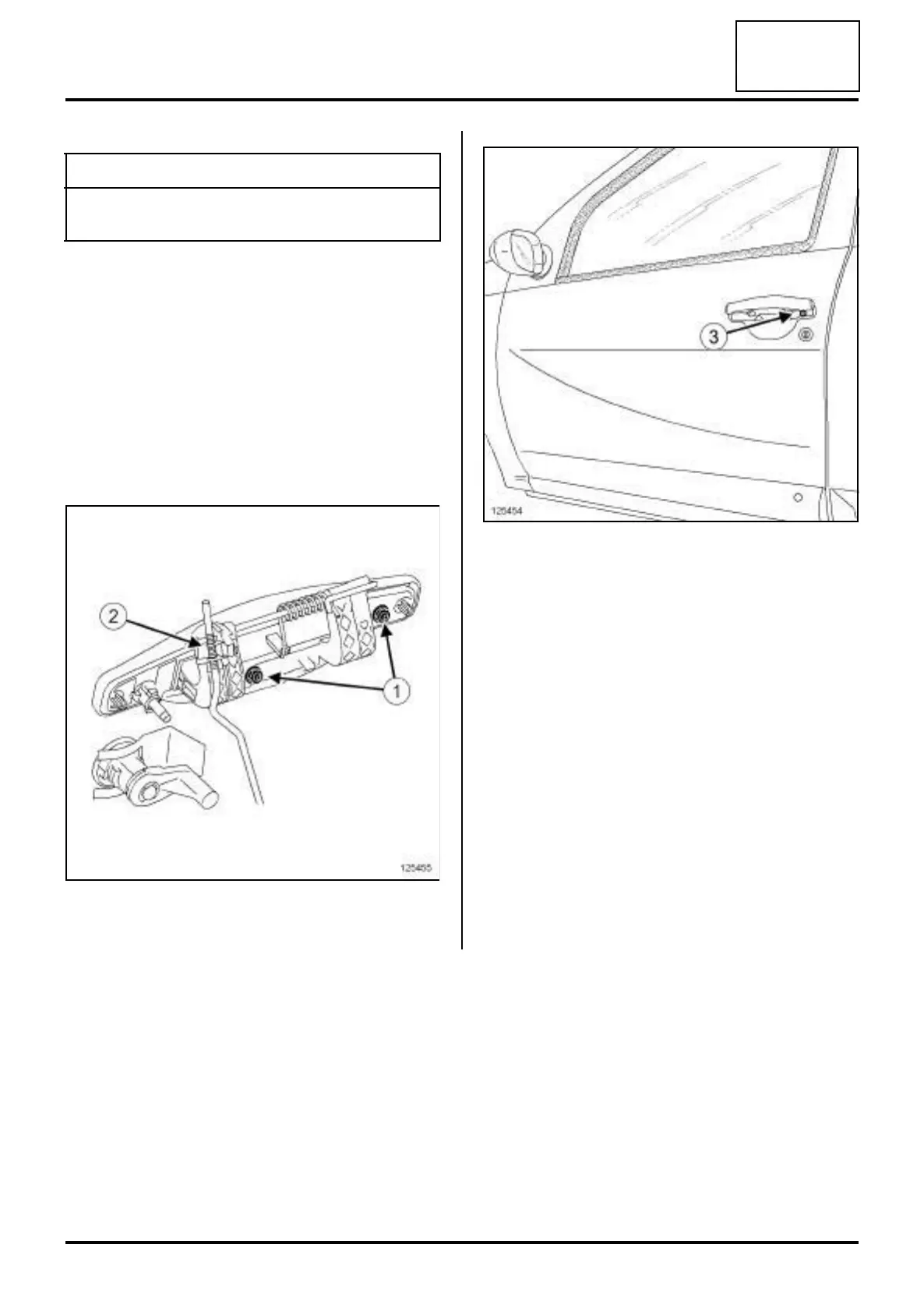

a Remove nuts (1) .
a Unclip the opening control linkage from the clip (2) .
a Remove:
- the bolt (3) ,
- the door exterior handle.
REFITTING
a Proceed in the reverse order to removal.
a Torque tighten the nuts of the exterior door han-
dle (7 N.m)
a Carry out a function test.
Tightening torquesm
the nuts of the exterior
door handle
7 N.m
