19D-8
ENGINE MOUNTING
Lower engine tie-bar: Removal - Refitting
19D
REMOVAL
I - REMOVAL PREPARATION OPERATION
a Position the vehicle on a two-post lift (see Vehicle:
Towing and lifting) (02A, Lifting equipment).
a Remove the engine undertray.
II - REMOVAL OPERATION

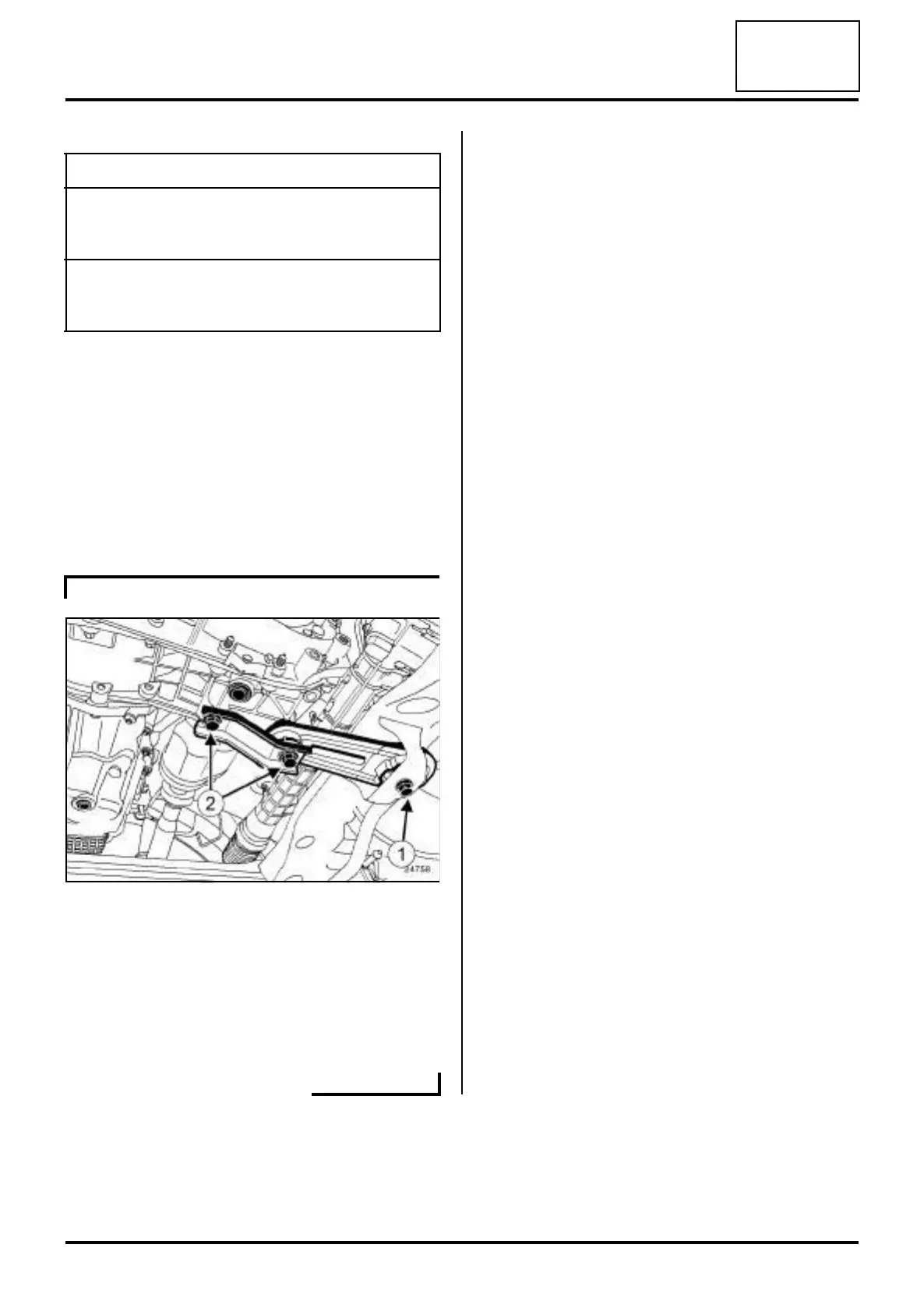

a Remove:
-the rear suspended engine mounting bolt (1) from
the subframe,
-the rear suspended engine bolts (2) from the gear-
box,
-the rear suspended engine mounting.
REFITTING
I - REFITTING OPERATION
a Refit:
- the rear suspended engine mounting,
- the rear suspended engine mounting bolts.
a Torque tighten:
- the rear suspended engine mounting bolt on
the subframe (105 N.m),
- the rear suspended engine mounting bolts on
the gearbox (105 N.m).
II - FINAL OPERATION
a Refit the engine undertray.
a Tighten the engine undertray bolts.
Tightening torquesm
rear suspended engine
mounting bolt on the
subframe
105 N.m
rear suspended engine
mounting bolts on the
gearbox
105 N.m
JR5
24758
