Renault Duster 2007 - Fault Finding - List and Location of Components

80D-4
V1
MR-453-X79-80D000$020.mif
80D
UCH
Vdiag No.: 09

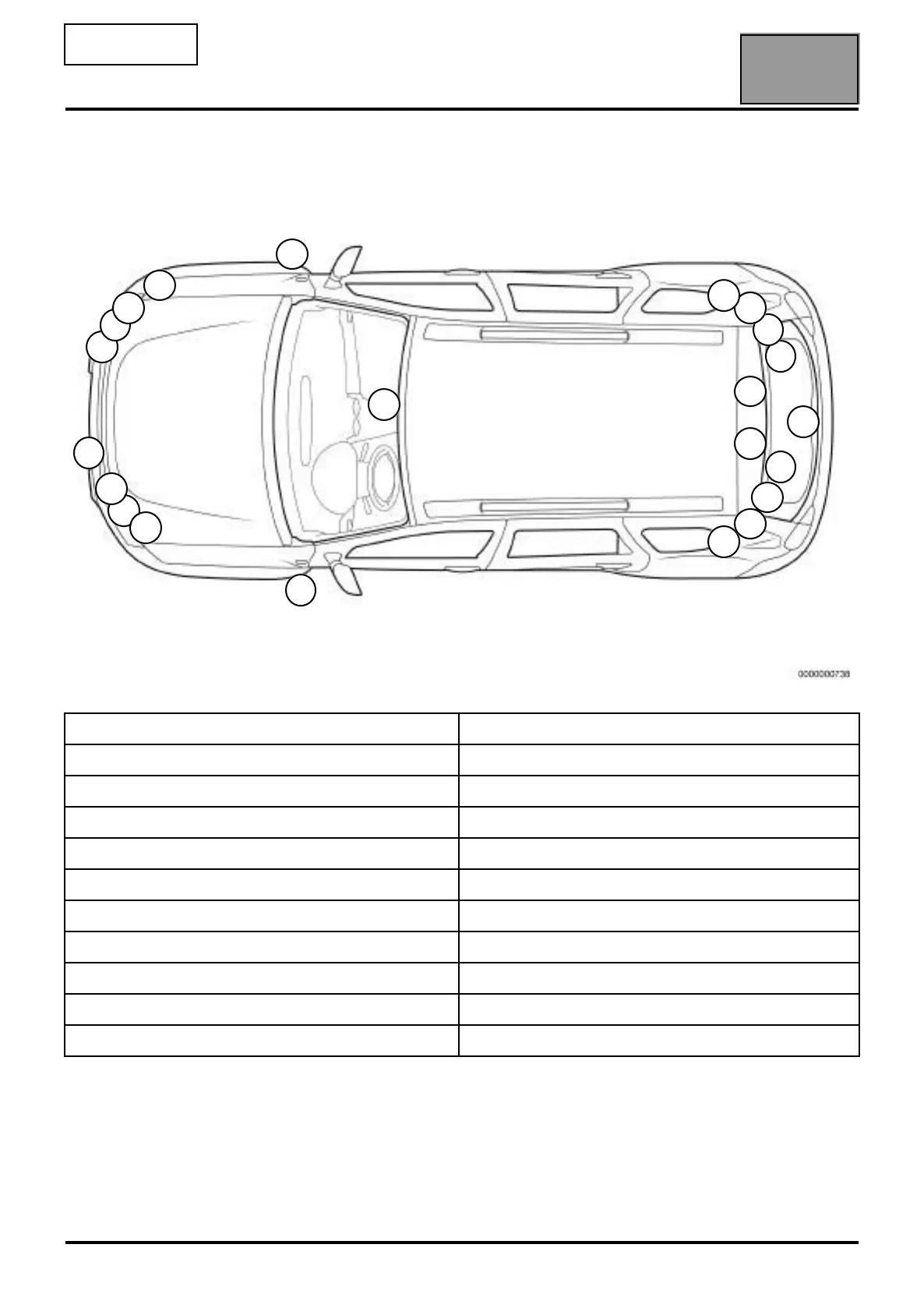

1- interior lights 12- left-hand reversing light
2- luggage compartment lighting 13- rear right-hand side light
3- right-hand side light 14- rear left-hand side light
4- left-hand side light 15- right-hand brake light
5- left-hand dipped headlight 16- left-hand brake light
6- right-hand dipped headlight 17- right-hand side-mounted indicator
7- front left-hand indicator light 18- left-hand side-mounted indicator
8- front right-hand indicator light 19- high-level brake light
9- front right-hand fog light 20- number plate light
10- front left-hand fog light 21- rear left-hand indicator light
11- rear right-hand fog light 22- rear right-hand indicator light
1
18
21
16
14
12
20
2
19
13
15
11
22
4
5
10
9
6
3
8
17
7
LIGHTING
Fault finding – List and location of components
