Renault Duster 2007 - Oil Pump: Removal - Refitting

10A-44
ENGINE AND CYLINDER BLOCK ASSEMBLY
Oil pump: Removal - Refitting
K9K
10A
REMOVAL
I - REMOVAL PREPARATION OPERATION
a Position the vehicle on a two-post lift (see Vehicle:
Towing and lifting) (02A, Lifting equipment).
a Drain the engine oil (see 10A, Engine and cylinder
block assembly, Engine oil: Draining - Refilling,
page 10A-32) .
a Remove the sump (see 10A, Engine and cylinder
block assembly, Lower cover: Removal - Refit-
ting, page 10A-9) .
II - OPERATION FOR REMOVAL OF PART
CONCERNED
a Remove:

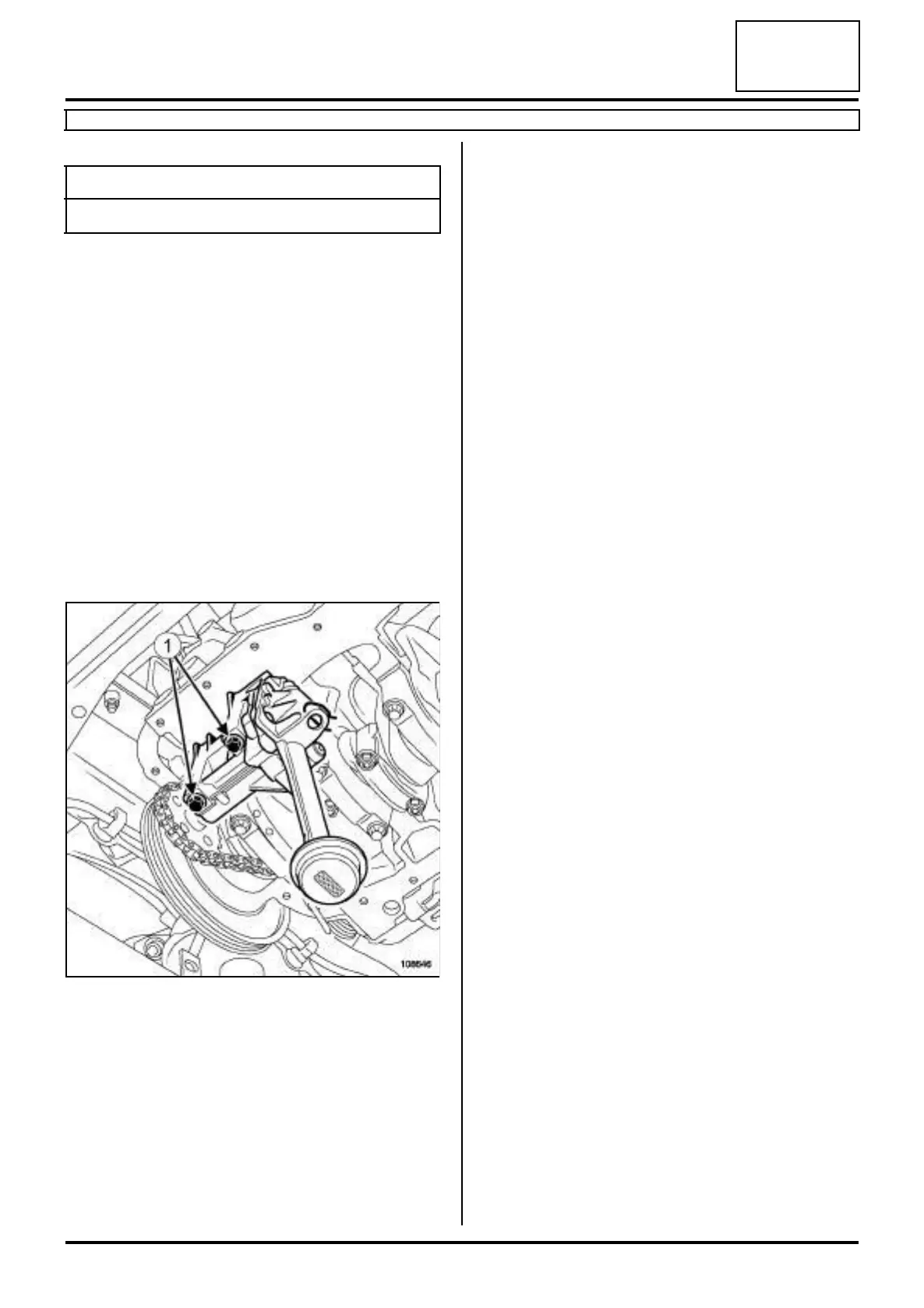

-the oil pump bolts (1) ,
-the oil pump.
REFITTING
I - REFITTING PREPARATION OPERATION
a Check for oil pump centering rings on the cylinder
block.
II - REFITTING OPERATION FOR PART
CONCERNED
a Refit the oil pump.
a Torque tighten the oil pump bolts (25 N.m).
III - FINAL OPERATION
a Refit the sump (see 10A, Engine and cylinder
block assembly, Lower cover: Removal - Refit-
ting, page 10A-9) .
a Top up the engine oil (see 10A, Engine and cylin-
der block assembly, Engine oil: Draining - Refill-
ing, page 10A-32) .
Tightening torquesm
oil pump bolts 25 N.m
