30A-18
GENERAL INFORMATION
Front axle system: Adjustment
30A
I - ADJUSTMENT PREPARATION STAGE
a Check the geometry (see 30A, General informa-
tion, Axle assemblies: Check, page 30A-15) .
II - ADJUSTMENT OPERATION
1 - Wheel alignment
a Set the wheels straight ahead.
a Lock the steering wheel using a flywheel immobil-
iser.
a Adjust the wheel alignment by rotating the track rod
sleeves.

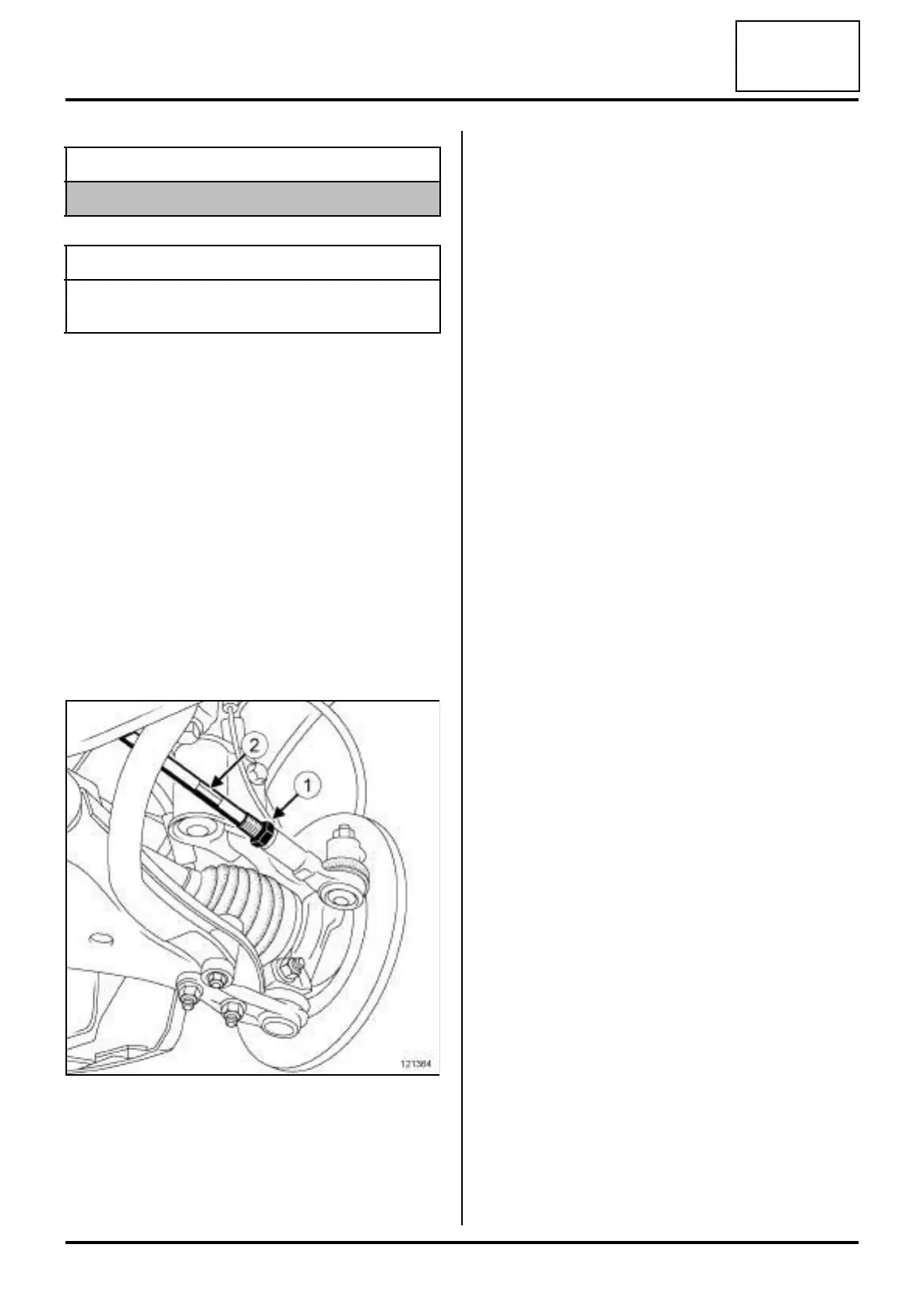

a Loosen the wheel alignment adjustment lock nut (1)
.
a Turn the track rod sleeve (2) to the required value.
a After adjustment, torque tighten the wheel align-
ment adjustment lock nuts (53 N.m).
2 - Castor angle
a Not adjustable.
3 - Camber
a Not adjustable.
4 - Pivot
a Not adjustable.
Equipment required
flywheel immobiliser
Tightening torquesm
wheel alignment adjust-
ment lock nuts
53 N.m
121364
