17B-10
PETROL INJECTION
Injector rail - Injectors: Removal - Refitting
K4M
17B
REMOVAL
I - REMOVAL PREPARATION OPERATION
a Disconnect the battery (see Battery: Removal - Re-
fitting) (80A, Battery).

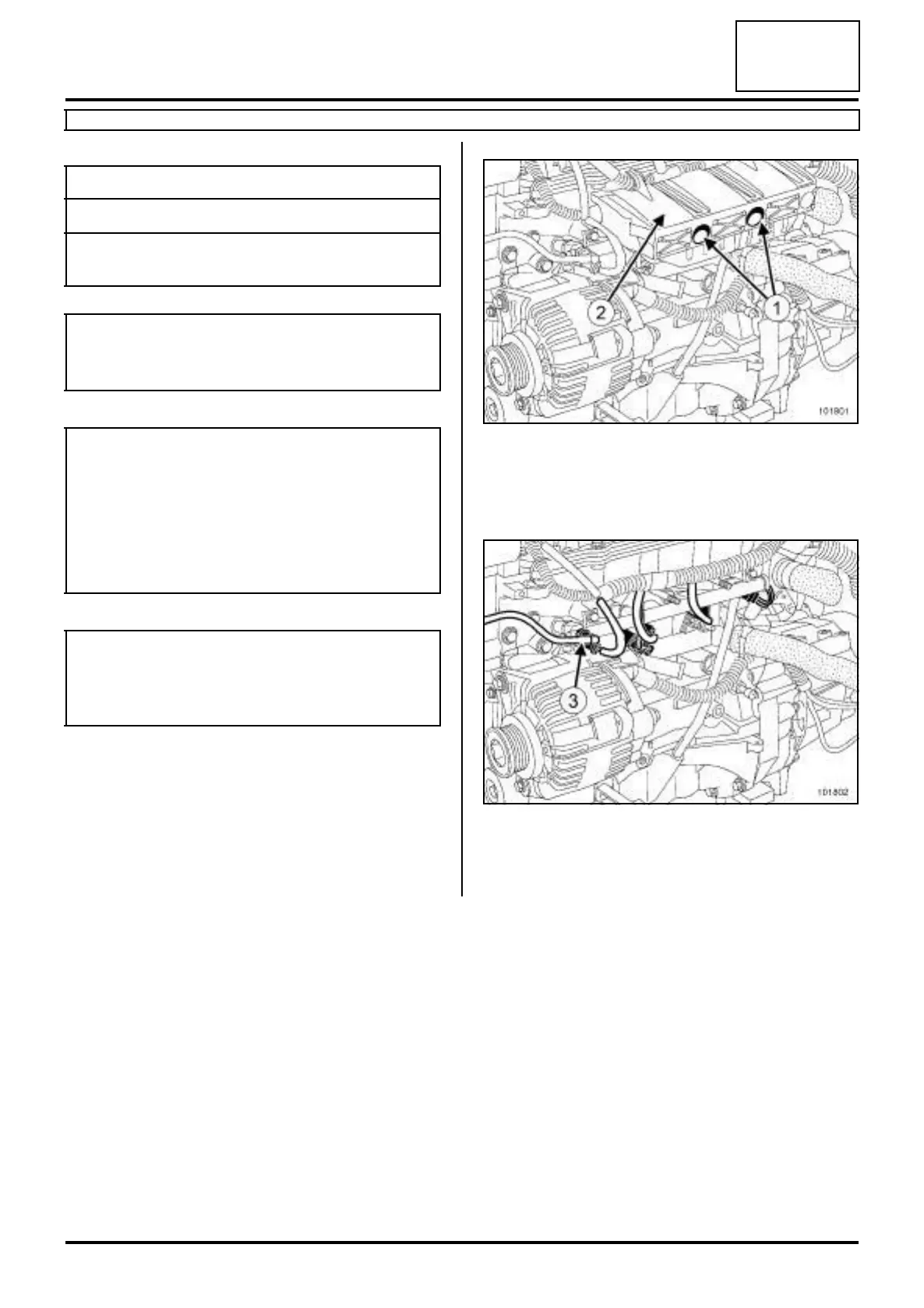

a Remove:
- the two nuts (1) from the injector rail protector,
- the injector rail protector (2) .
a Disconnect the fuel supply pipe union (3) on the in-
jector rail.
a Fit blanking plugs.
Tightening torquesm
injector rail bolts 9 N.m
injector rail protector
nuts
21 N.m
IMPORTANT
Wear leaktight gloves (Nitrile type) for this opera-
tion.
IMPORTANT
During this operation, be sure to:
- refrain from smoking or bringing red hot objects
close to the working area,
- be careful of fuel splashes when disconnecting the
union.
IMPORTANT
Be careful when removing the injectors or the injec-
tion rail as there will be a quantity of fuel in the rail
and the union.
101801
101802
