61A-13
HEATING
Air distribution cable: Removal - Refitting
AIR CONDITIONING or STANDARD HEATING RECIRCULATION
61A
REMOVAL
I - REMOVAL PREPARATION OPERATION
a Lock the airbag computer (see Fault finding - Re-
placement of components) (88C, Airbags and pre-
tensioners).
a Disconnect the battery (see Battery: Removal - Re-
fitting) (80A, Battery).
a Turn the air distribution control to the air vent posi-
tion on the dashboard,
a Remove:
-the driver's front airbag (see Driver's frontal air-
bag: Removal - Refitting) (88C, Airbags and pre-
tensioners),
-the steering wheel (see Steering wheel: Removal
- Refitting) (36A, Steering assembly),
-the steering column switch assembly (see Steer-
ing column switch assembly: Removal - Refit-
ting) (84A, Control - Signals),
-the instrument panel (see Instrument panel: Re-
moval - Refitting) (83A, Instrument panel),
-the storage compartment,
-the radio (see Radio: Removal - Refitting) (86A,
Radio),
-the dashboard (see Dashboard: Removal - Refit-
ting) (57A, Interior equipment).
a Disconnect the climate control panel connector .
II - REMOVAL OPERATION

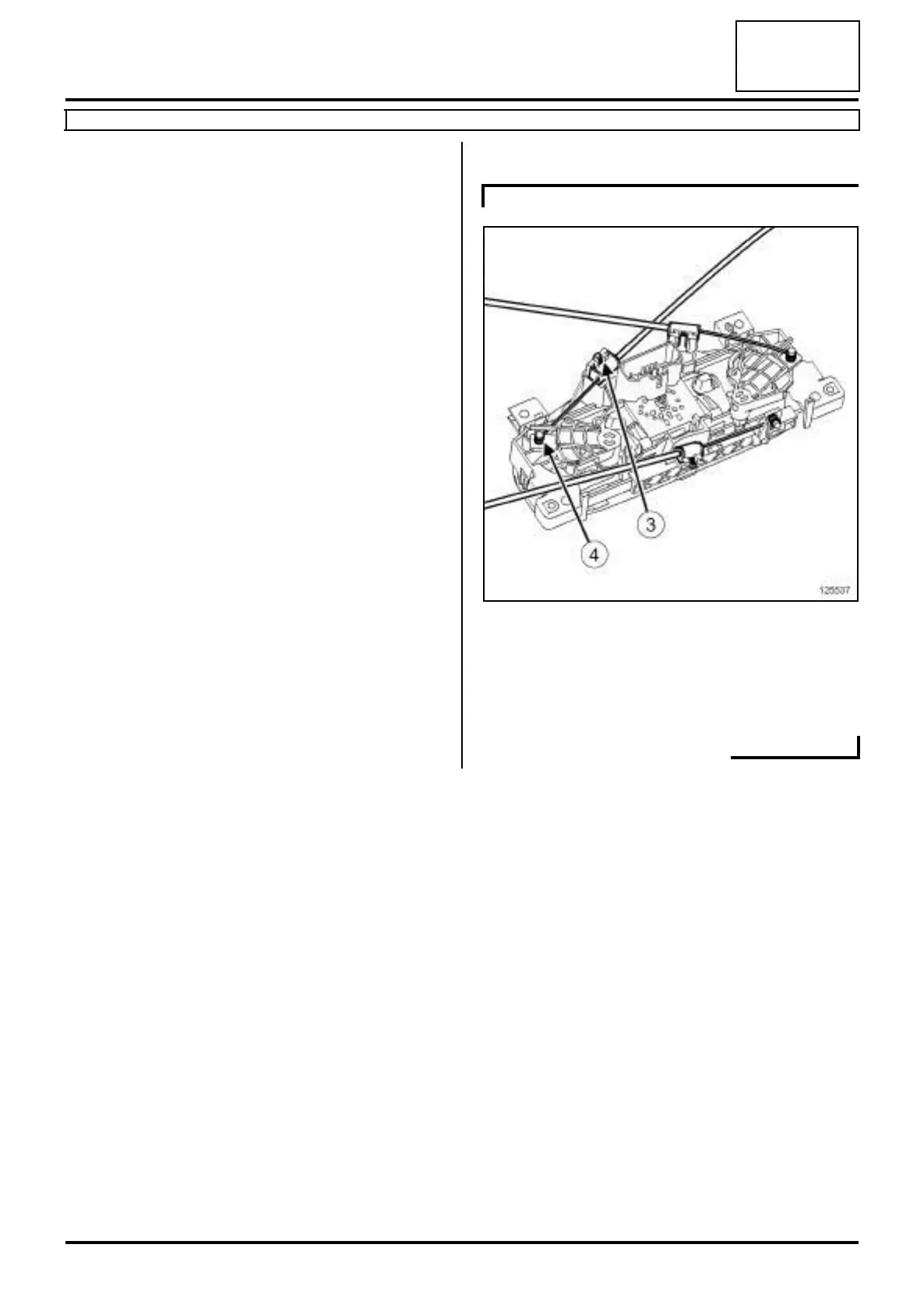

a Remove the sheath stop by moving the tab (3) to
one side.
a Extract the air distribution cable (4) from the air con-
ditioning control panel.
H79
125537
