12A-12
FUEL MIXTURE
Inlet distributor: Removal - Refitting
K4M
12A
REMOVAL

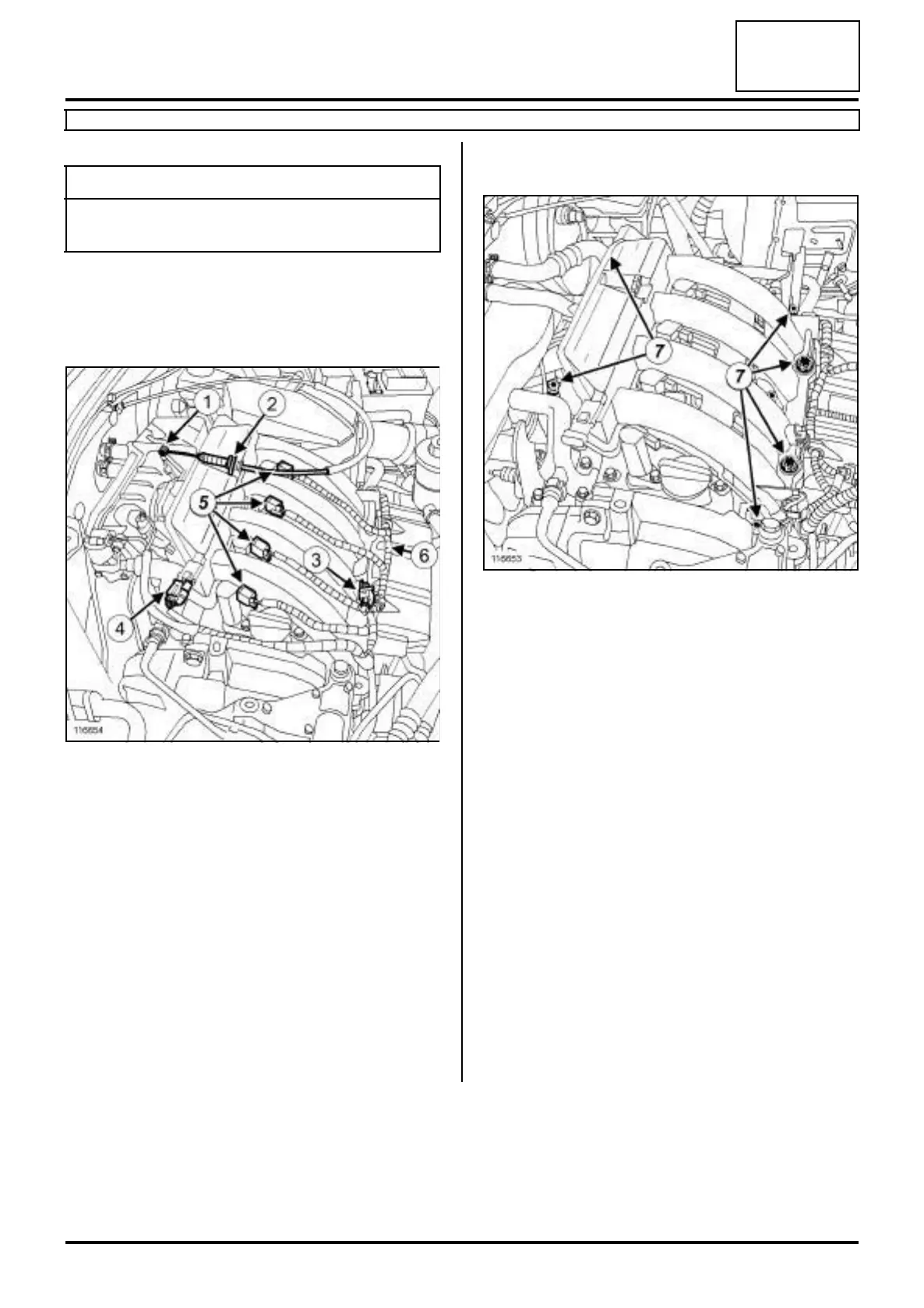

I - REMOVAL PREPARATION OPERATION
a Disconnect the accelerator cable on the throttle
valve at (1) .
a Remove the accelerator cable (2) from the inlet dis-
tributor.
a Disconnect:
-the air temperature sensor connector (3) ,
-the air inlet pressure sensor connector (4) ,
-the connectors (5) from the coils.
a Unclip the wiring (6) on the inlet distributor.
a Move the wiring aside.
a Remove the throttle valve (see 12A, Fuel mixture,
Throttle valve: Removal - Refitting, page 12A-11)
.
II - OPERATION FOR REMOVAL OF PART
CONCERNED
a Remove:
- the inlet distributor bolts (7) ,
- the inlet distributor.
a When replacing the inlet distributor, remove:
- the air temperature sensor,
- the inlet air pressure sensor.
REFITTING
I - REFITTING PREPARATION OPERATION
a parts always to be replaced: inlet distributor
seal.
Tightening torquesm
intake distributor mount-
ing bolts
9 N.m
116654
116653
