10A-1
ENGINE AND CYLINDER BLOCK ASSEMBLY
Crankshaft seal on timing end: Removal - Refitting
K9K
10A
REMOVAL
I - REMOVAL PREPARATION OPERATION
a Position the vehicle on a two-post lift (see Vehicle:
Towing and lifting) (02A, Lifting equipment).
a Disconnect the battery (see Battery: Removal - Re-
fitting) (80A, Battery).
a Remove:
-the front right-hand wheel (see Wheel: Removal -
Refitting) (35A, Wheels and tyres),
-the timing belt (see 11A, Top and front of engine,
Timing belt: Removal - Refitting, page 11A-17) ,
-the timing belt sprocket (see 11A, Top and front of
engine, Timing belt: Removal - Refitting, page
11A-17) .
II - REMOVAL OPERATION

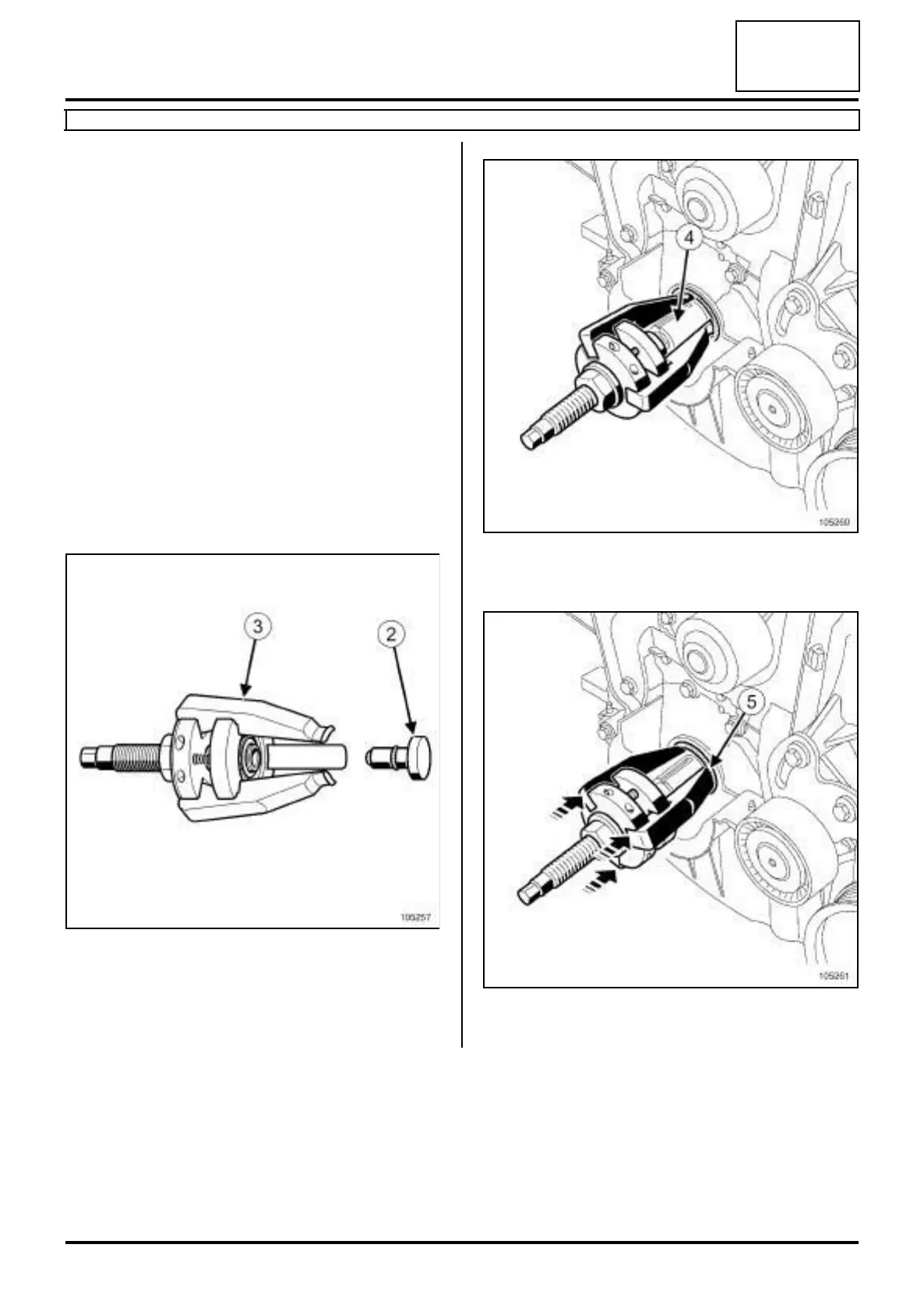

a Fit the end piece (2) onto the tool (3) .
a Position the jaws of the toolonto the crankshaft nose
(4) .
a Push on the tooluntil contact is made between the
ends (5) of the jaws and the crankshaft seal.
105257
105260
105261
