10A-2
ENGINE AND CYLINDER BLOCK ASSEMBLY
Crankshaft seal on timing end: Removal - Refitting
K9K
10A

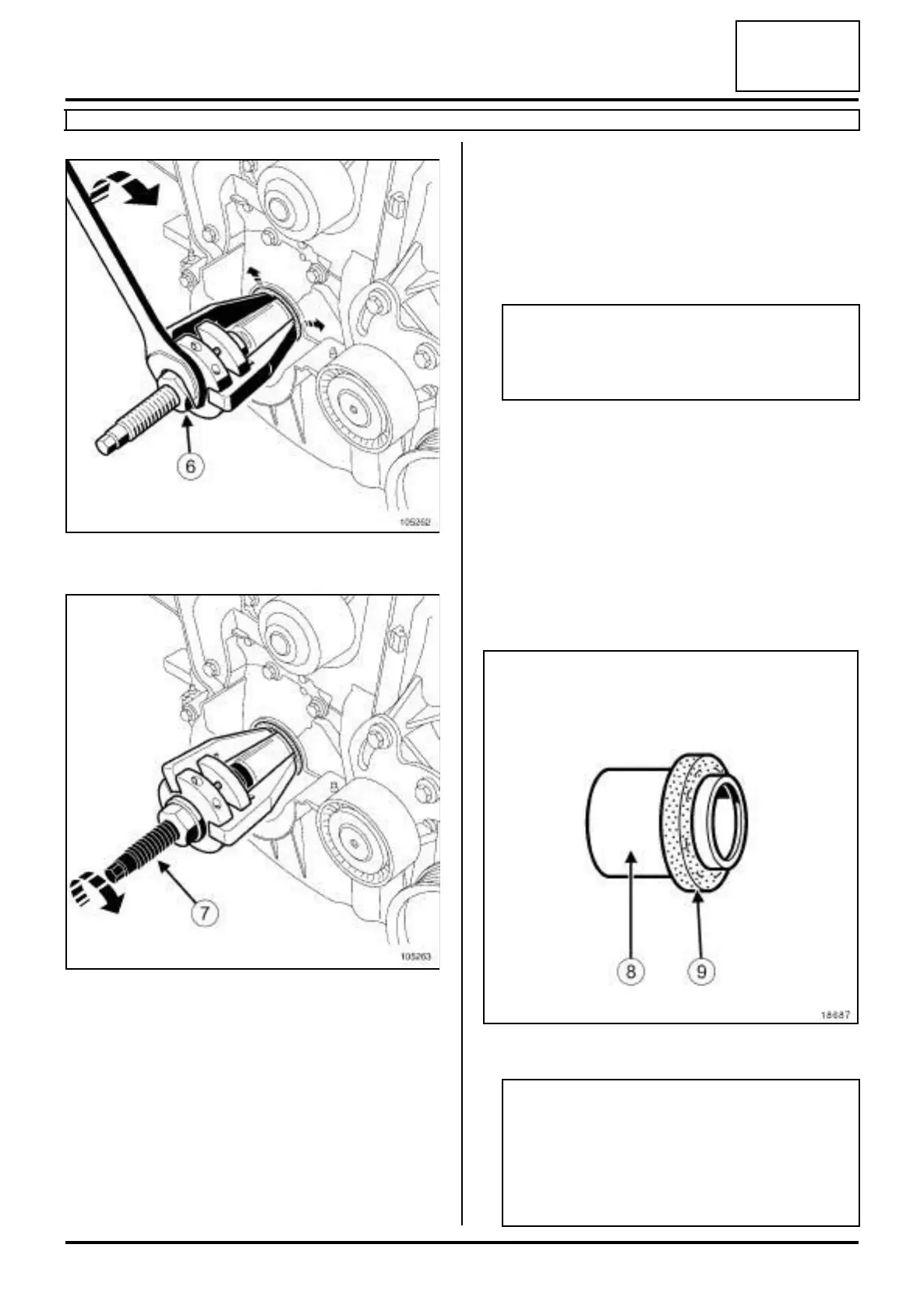

a Separate the jaws by screwing the nutof the tool (6) .
a Screw down the threaded rod (7) of the.
a Refit the crankshaft seal at the timing end using the
tool.
REFITTING
I - REFITTING PREPARATION OPERATION
a parts always to be replaced: Crankshaft seal on
timing end.
a Use SURFACE CLEANER (see Vehicle: Parts
and consumables for the repair) (04B, Consuma-
bles - Products) to clean and degrease:
- the crankshaft seal mating face,
- the crankshaft seal housing in the crankshaft clo-
sure panel.
II - REFITTING OPERATION
a
105262
105263
WARNING
To ensure proper sealing, the gasket surfaces
must be clean, dry and not greasy (avoid any fin-
ger marks).
18687
Note:
This type of seal is extremely fragile.
Only touch the protective part (8) when handling
the gasket. It is strictly forbidden to touch the
seal (9) ; this is to prevent any oil leaks once the
oil seal is fitted to the engine.
