37A-50
MECHANICAL COMPONENT CONTROLS
Gear control unit: Removal - Refitting
JR5
37A
REMOVAL
I - REMOVAL PREPARATION OPERATION
a Position the vehicle on a two-post lift (see Vehicle:
Towing and lifting) (02A, Lifting equipment).
a Disconnect the battery (see Battery: Removal - Re-
fitting) (80A, Battery).
a Remove the expansion bottle nuts.
a Move aside the expansion bottle from its support.

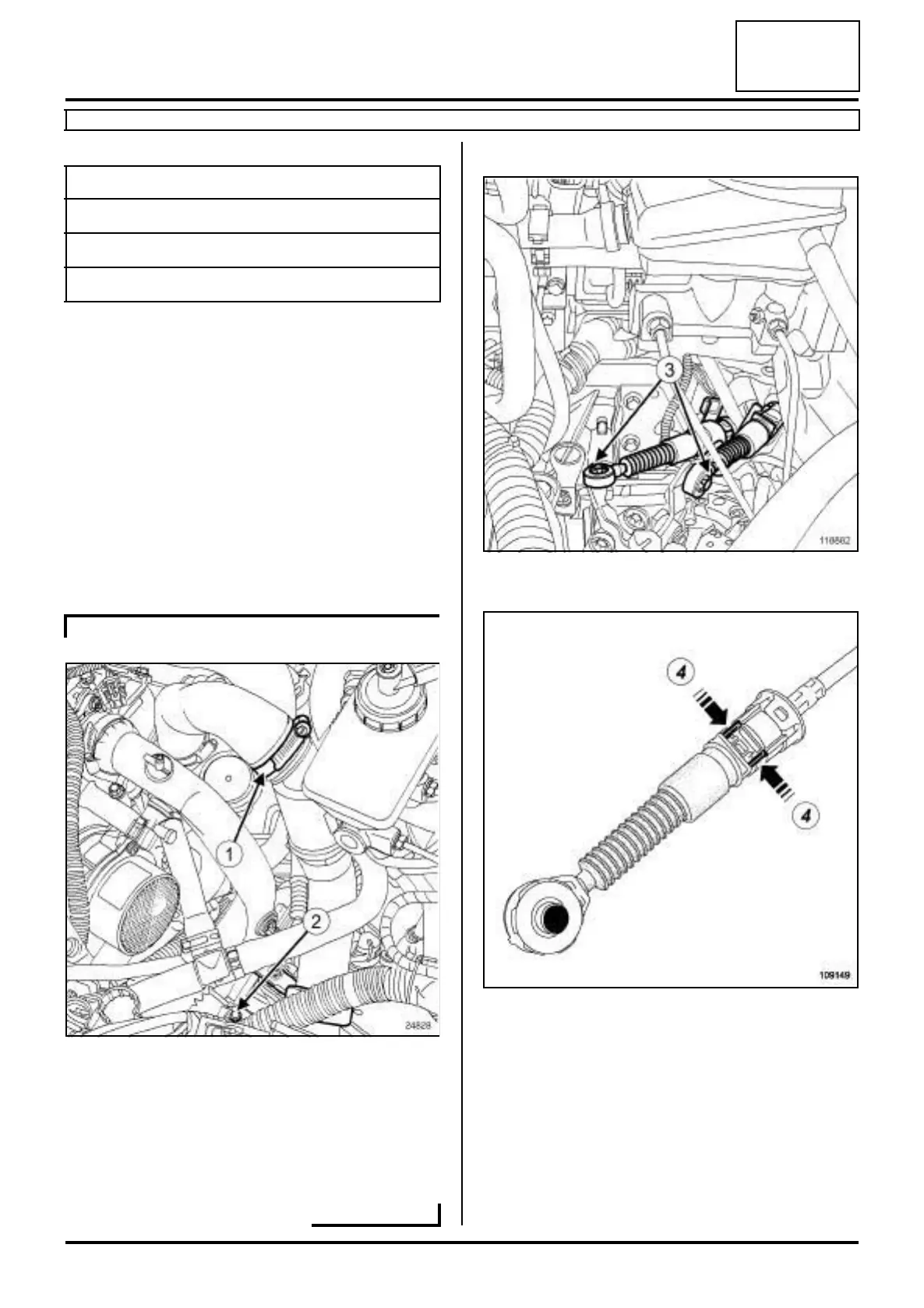

a Disconnect the air duct between the turbocharger
and the intercooler at (1) .
a Remove the air duct nut (2) on the gearbox.
a Move aside the air duct.
II - REMOVAL OPERATION
a Unclip the gear control cables on the gearbox at (3) .
a Detach the gear control cable sleeve stops from the
gearbox by pressing at (4) .
Tightening torquesm
gear control unit bolts 21 N.m
exhaust pipe mountings 21 N.m
expansion bottle nuts 8 N.m
K9K
24828
118882
109149
